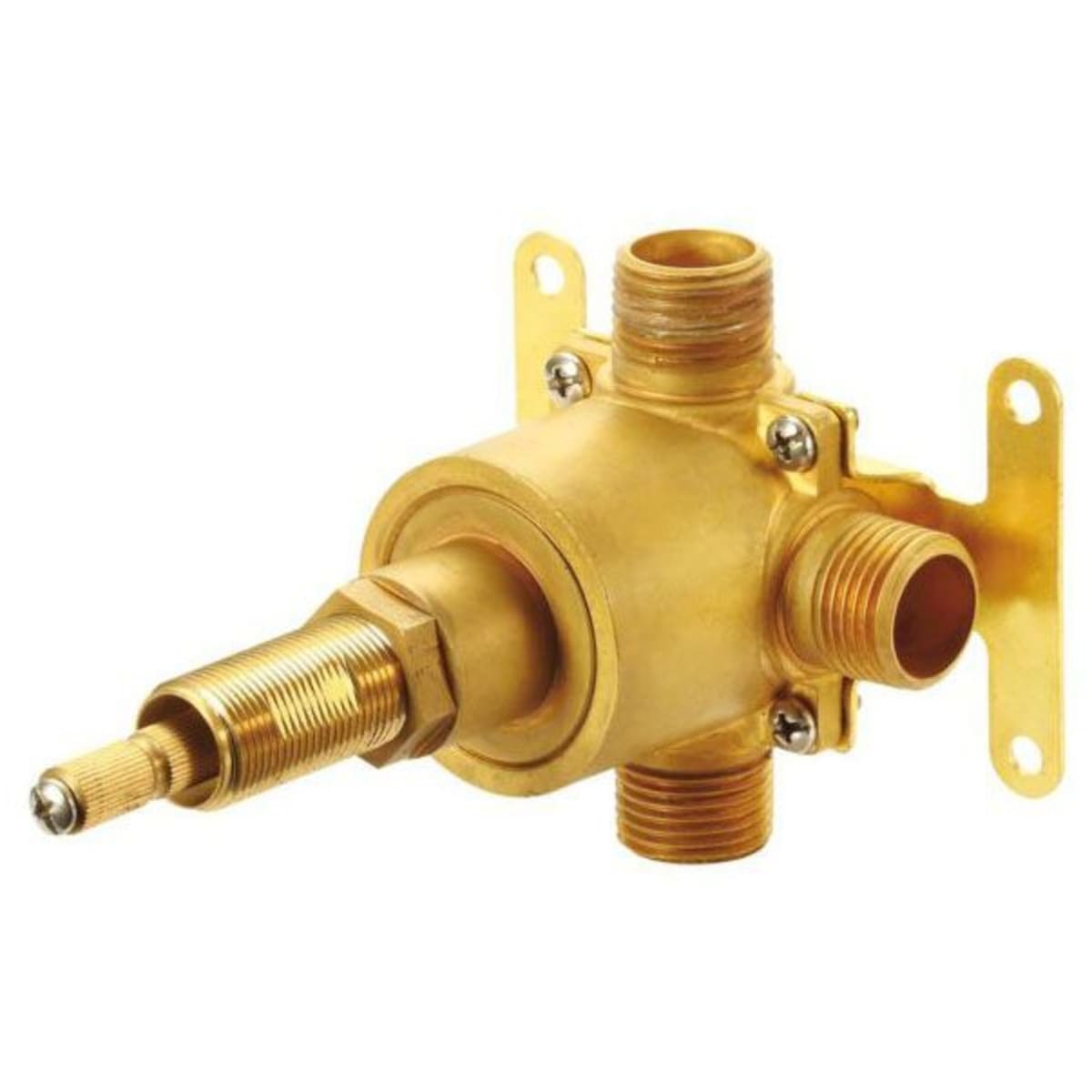

Gerber D130500BT Diverter, 3-Port, 4-Position, 2-Outlet 1/2 IPS/Copper Soldered

Product Description

The Gerber D130500BT is a three-port diverter valve designed for shower systems. With a 1/2 inch inlet connection, the valve provides versatility in controlling water flow across multiple outlets. The 4-position functionality allows individual, shared, or paused flow settings, suitable for various shower configurations.

• Designed for primarily residential use.
• Compatible with D5609 series trim kits.
• Includes mounting brackets and cartridge for easy installation.

Product Highlights

This diverter valve facilitates simple adjustment of water flow to multiple outlets, making it ideal for home shower systems.

Product Information

Standard Information

• Brand: Gerber
• MPN: D130500BT

Technical Specifications

• Inlet Size: 1/2 inch
• Inlet Connection: IPS/Copper Soldered
• Outlets: 2 (1/2 inch IPS/Copper Soldered)
• Type: Diverter valve
• Material: Brass
• Overall Dimension: 3-1/8 inch width x 3-3/16 inch height
• Number of Valves/Handles: 1
• Applicable Standard: CUPC
