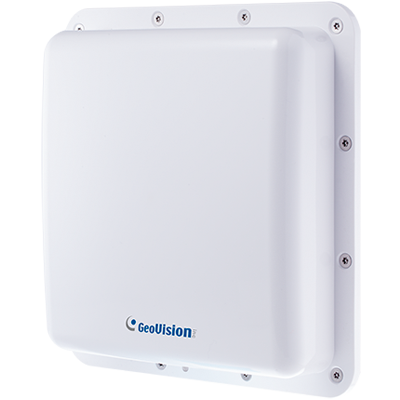

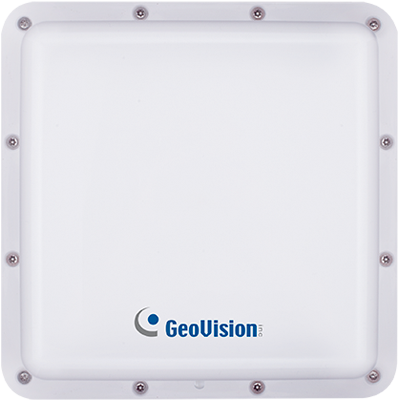

Geovision 520-RU9003-000 GV-RU9003 UHF RFID reader (long-range)

Product Description

Geovision 520-RU9003-000 is a UHF RFID reader supporting the ISO 18000-6C (EPC Gen 2) standard, designed for long-range tag identification and access-control applications. The unit features an integrated RF module and optimized antenna pattern, operates in the 902–928 MHz band, and can read tags up to 10 m (33 ft) under optimal conditions. It provides a Wiegand 64 interface, supports external sensors and controllers, and includes EMI reduction measures with CE and FCC certification.

• Supports ISO 18000-6C (EPC Gen 2); operates at 902–928 MHz with up to 10 m (33 ft) read range under optimal conditions
• Integrated RF module and optimized antenna pattern; Wiegand 64 interface; support for external sensors and controllers
• Energy-saving design and patented EMI reduction technology; CE and FCC certified; suitable for outdoor use

Product Highlights

Long-range UHF RFID reader with integrated antenna, Wiegand 64 interface, and EMI reduction.

Product Information

Standard Information

• Brand: GEOVISION
• Manufacturer Part Number: 520-RU9003-000
• Country of Origin: Taiwan
