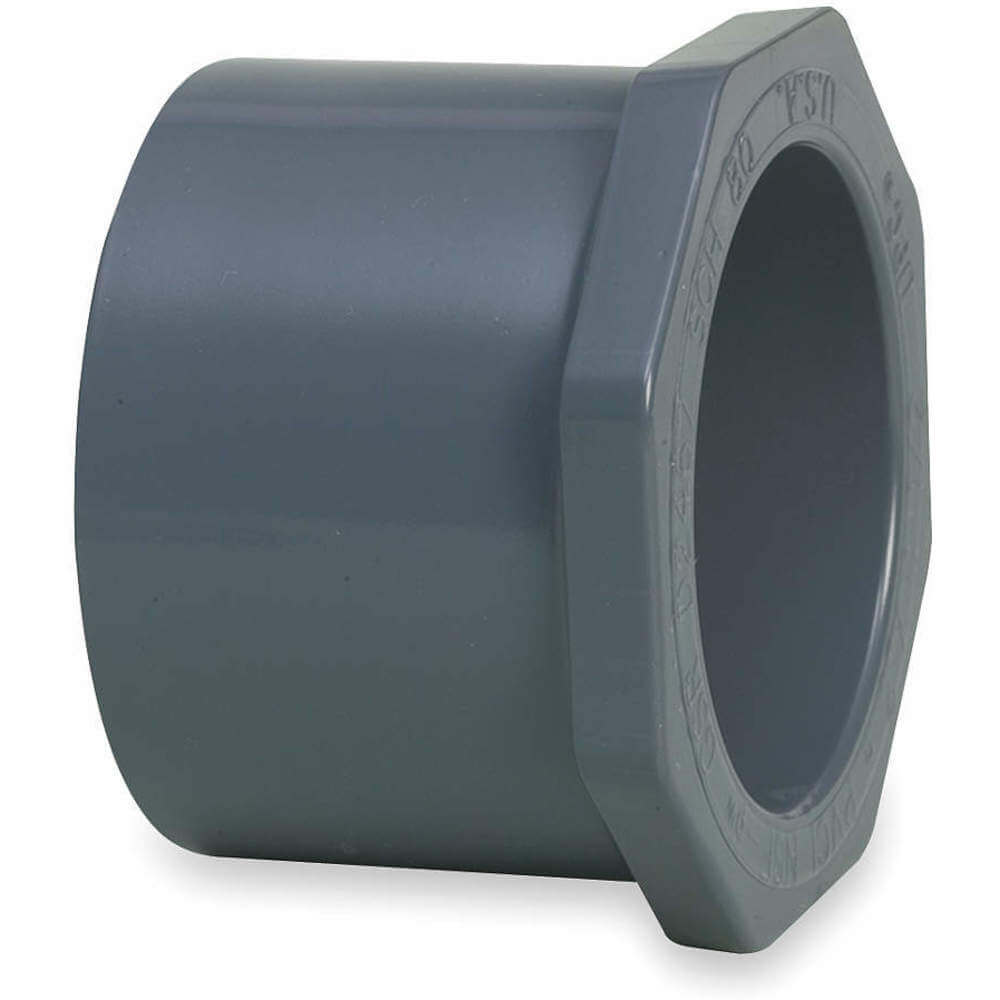

Georg Fischer 9837-422 reducer bushing 4 x 3 inch 324 psi at 73f

Product Description

The Georg Fischer 9837-422 is a CPVC reducing bushing designed for 4 x 3 inch pipe sizes, featuring a spigot x socket connection. It is suitable for both non-potable and potable water applications. This fitting can withstand a maximum operating pressure of 320 psi at 73°F and a maximum pressure of 324 psi at 73°F, with a maximum temperature rating of 210°F. It is NSF 61 Low Lead Certified and meets ASTM F439 standards for reliable plumbing systems.

• Suitable for non-potable and potable water applications.
• Constructed from CPVC material with a spigot x socket connection.
• Withstands up to 324 psi at 73°F and temperatures up to 210°F.

Product Highlights

CPVC reducing bushing for 4x3 inch pipes, certified for water applications with high pressure and temperature resistance.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9837-422
• Country of Origin: US

Technical Specifications

• Item Type: Reducer Bushing
• Application: Non-Potable Water, Potable Water
• Basic Fitting Shape: Bushing
• Body Material: CPVC
• Color: Gray
• Connection Type: Spigot x Socket
• Fitting Side A Gender: Male
• Fitting Side A Nominal Pipe Size: 4"
• Fitting Side A Outside Diameter: 4 1/2"
• Fitting Side A Type: Spigot
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 3"
• Fitting Side B Outside Diameter: 4 13/16"
• Fitting Side B Type: Socket
• For Pipe Outside Diameter: 4"
• Pipe Schedule: 80
• Included Plug: No
• Included Pre-applied Thread Sealant: No
• Included Seals: No
• Included Shield: No
• Certifications: NSF 61, ASTM F439
• Max Operating Pressure: 320 psi @ 73°F
• Max Pressure: 324 psi @ 73°F
• Maximum Temperature: 210°F
• Overall Length: 2 11/16"
• Pipe Size: 4" x 3"
• Specific Fitting Shape: Reducing Bushing
• Operating Temperature Range: 32°F to 200°F
