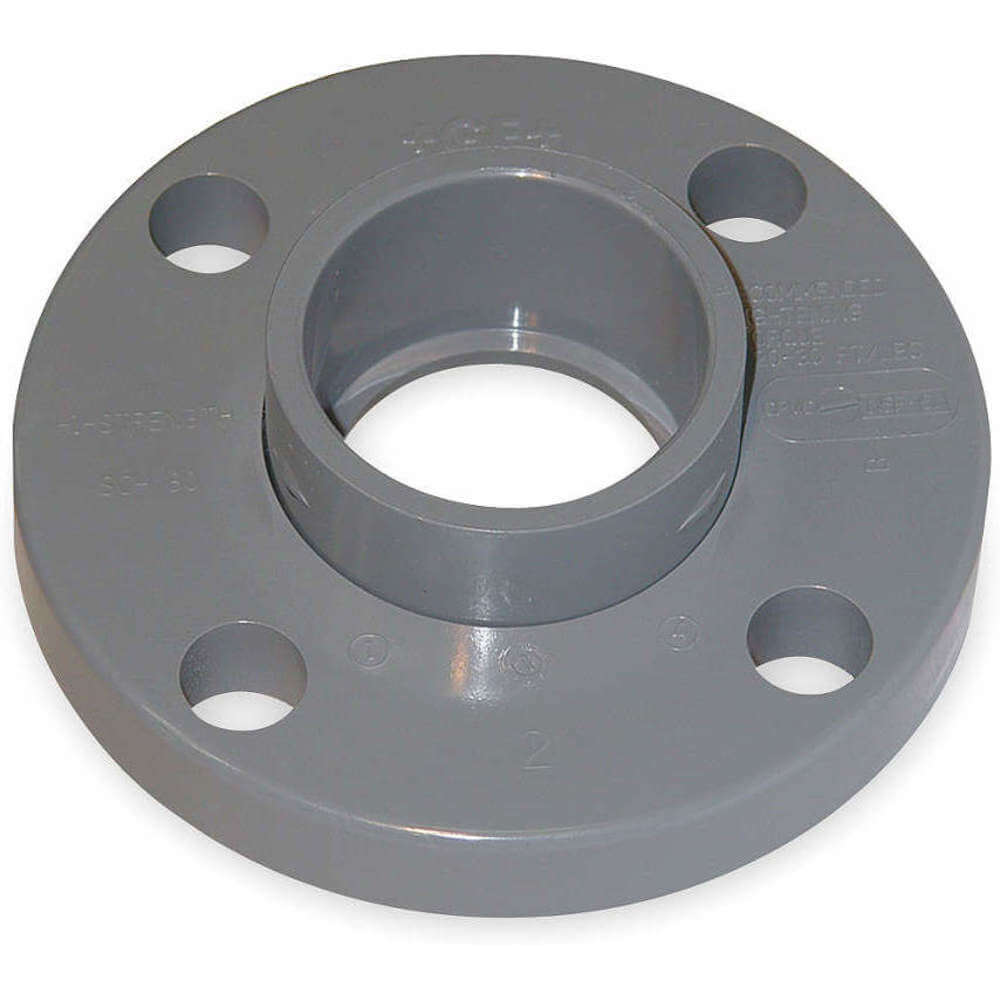

Georg Fischer 854-020 Van-Stone Flange 2 inch socket

Product Description

The GEORG FISCHER 854-020 Van-Stone Flange is a 2-inch socket PVC fitting designed for both non-potable and potable water applications. This Class 150 flange can withstand a maximum operating pressure of 150 psi and a maximum temperature of 140°F. It conforms to ASTM D1784 and NSF 14 standards, and is NSF61 low lead certified, ensuring suitability for various plumbing systems.

• Designed for non-potable and potable water applications.
• Constructed from durable PVC material with a Class 150 rating.
• Withstands 150 psi max operating pressure and 140°F max temperature.

Product Highlights

Durable PVC Van-Stone Flange for water systems, meeting ASTM D1784, NSF 14, and NSF61 standards.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 854-020
• Country of Origin: US

Technical Specifications

• Type: Van-Stone Flange
• Application: Non-Potable Water, Potable Water
• Fitting Shape: Flange
• Material: PVC
• Bolt Circle Diameter: 4 3/4"
• Bolt Hole Diameter: 11/16"
• Pressure Class: Class 150
• Connection Surface: Raised
• Connection Type: Socket
• Flange Outside Diameter: 6"
• Flange Thickness: 13/16"
• Pipe Schedule: 80
• Maximum Operating Pressure: 150 psi
• Maximum Temperature: 140°F
• Number of Bolt Holes: 4
• Nominal Pipe Size: 2"
• Overall Length: 1 13/16"
• Certifications: NSF61, ASTM D1784, NSF 14
