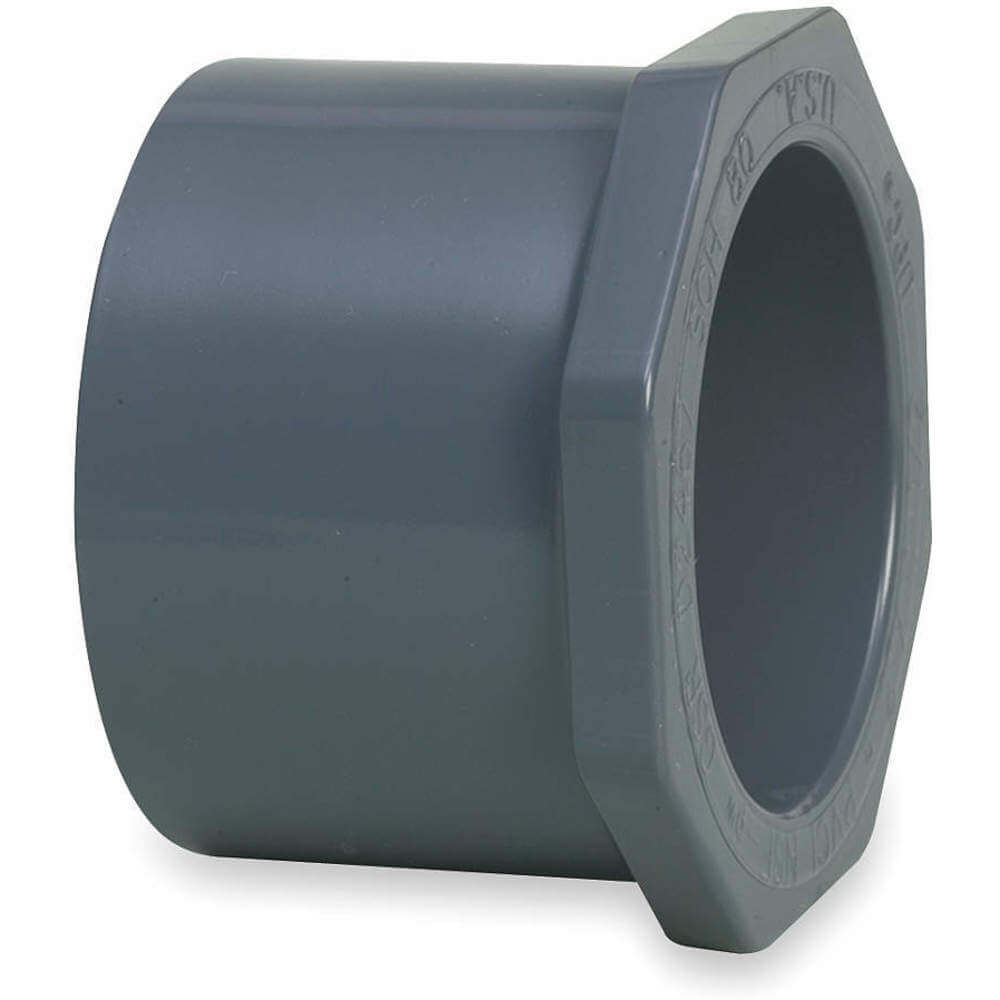

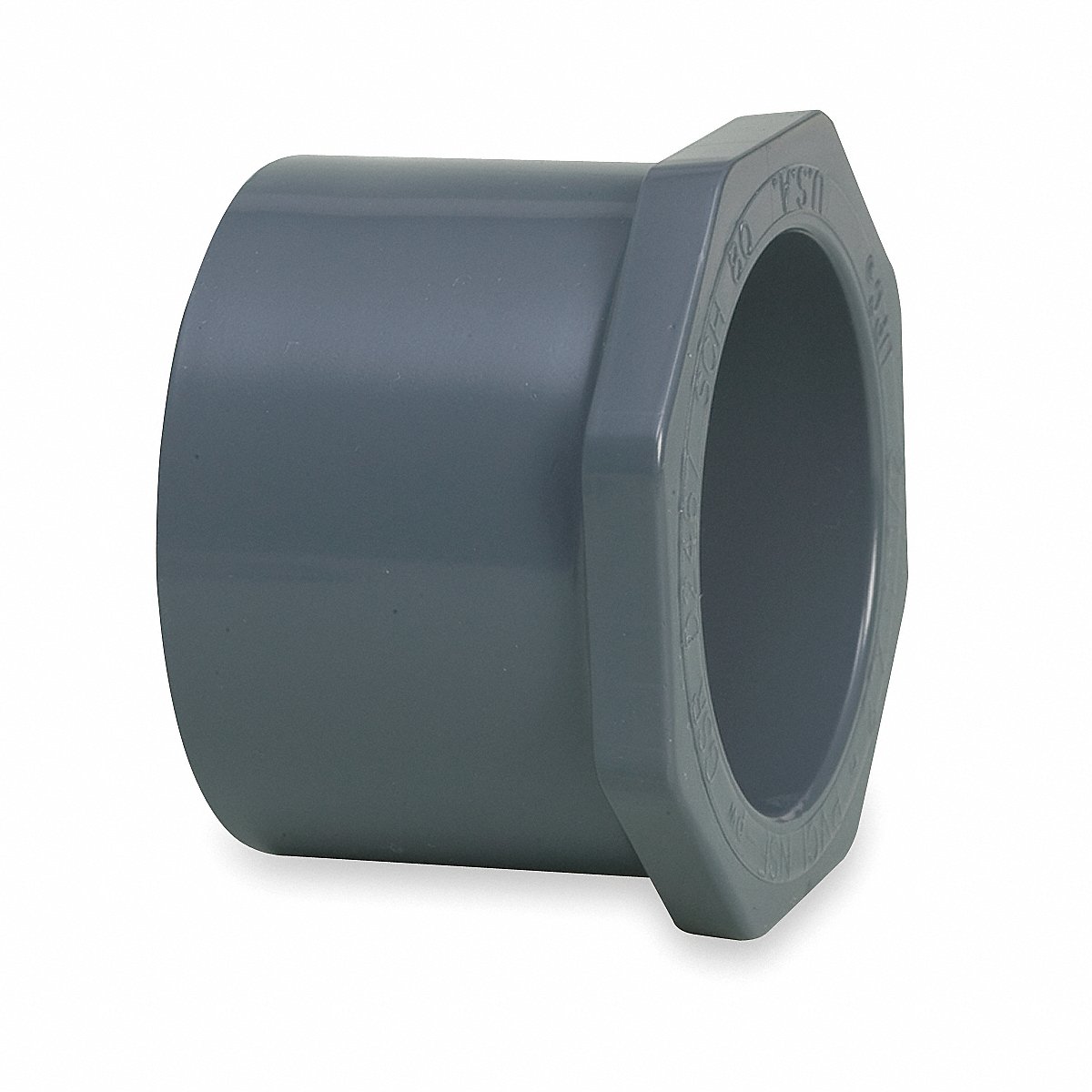

Georg Fischer 837-338 Reducer Bushing 3 x 2 Inch

Product Description

A GEORG FISCHER 837-338 Reducer Bushing is designed for non-potable and potable water applications. This PVC bushing features a spigot x socket connection, suitable for Schedule 80 pipes. It can withstand a maximum operating pressure of 370 psi at 73°F and temperatures up to 140°F. It is NSF 61 low lead certified and meets ASTM D2467 standards.

• Designed for non-potable and potable water applications
• Made from durable PVC material with Spigot x Socket connection
• Suitable for Schedule 80 pipes, rated for 370 psi at 73°F and 140°F max temp

Product Highlights

This GEORG FISCHER 837-338 Reducer Bushing ensures reliable connections in water systems, offering durability and compliance with NSF 61 and ASTM D2467 standards.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 837-338
• Country of Origin: US

Technical Specifications

• Application: Non-Potable Water, Potable Water
• Basic Fitting Shape: Bushing
• Body Material: PVC
• Color: Gray
• Connection Type: Spigot x Socket
• Fitting Side A Gender: Male
• Fitting Side A Nominal Pipe Size: 3"
• Fitting Side A Outside Diameter: 3 1/2"
• Fitting Side A Type: Spigot
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 2"
• Fitting Side B Outside Diameter: 3 11/16"
• Fitting Side B Type: Socket
• For Pipe Outside Diameter: 3"
• Schedule: 80
• Hex Size: 3 11/16"
• Included Plug: No
• Included Pre-applied Thread Sealant: No
• Included Seals: No
• Included Shield: No
• Low Lead Certified Standard: NSF 61
• Max Operating Pressure: 370 psi @ 73°F
• Max Temperature: 140°F
• Overall Length: 2 3/8"
• Pipe Size: 3" x 2"
• Specific Fitting Shape: Reducing Bushing
• Standards: ASTM D2467
• Operating Temperature Range: 32°F to 140°F
• Sealing Method: Cement
