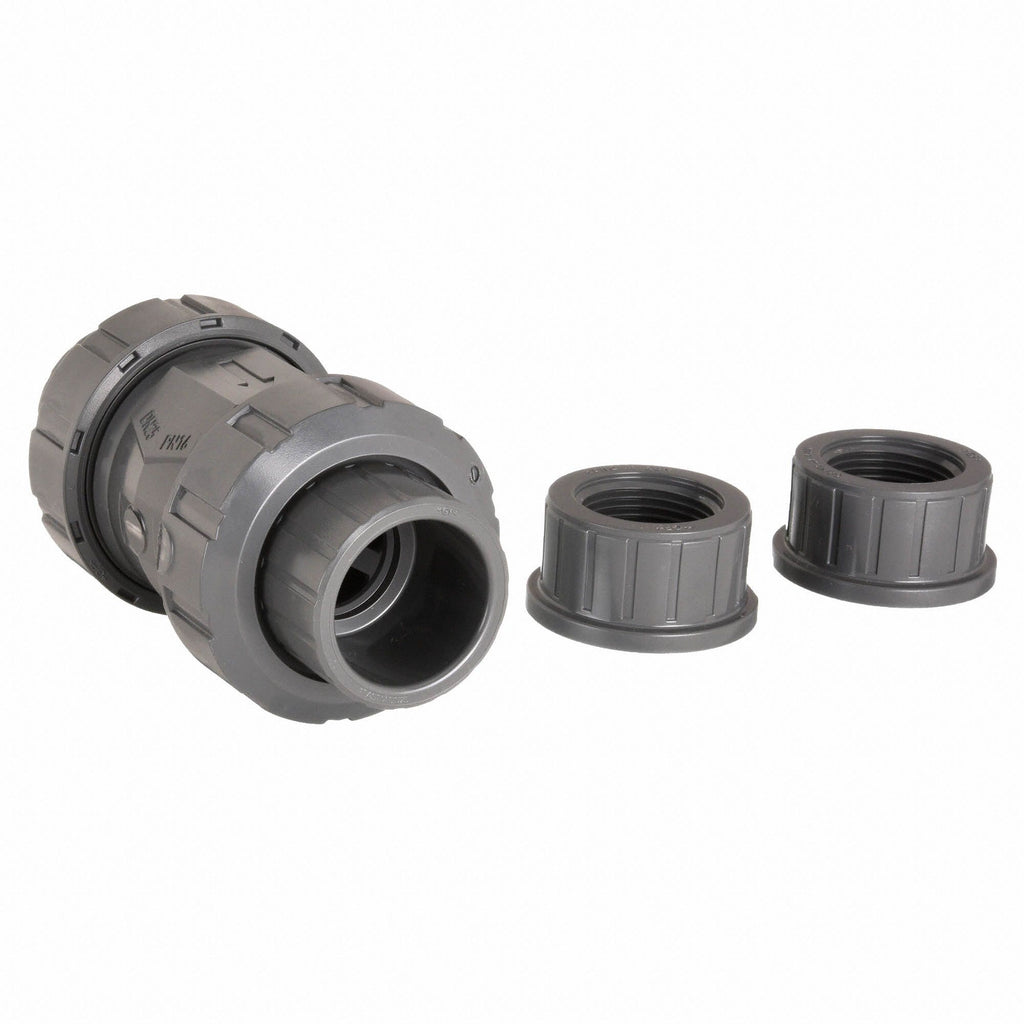

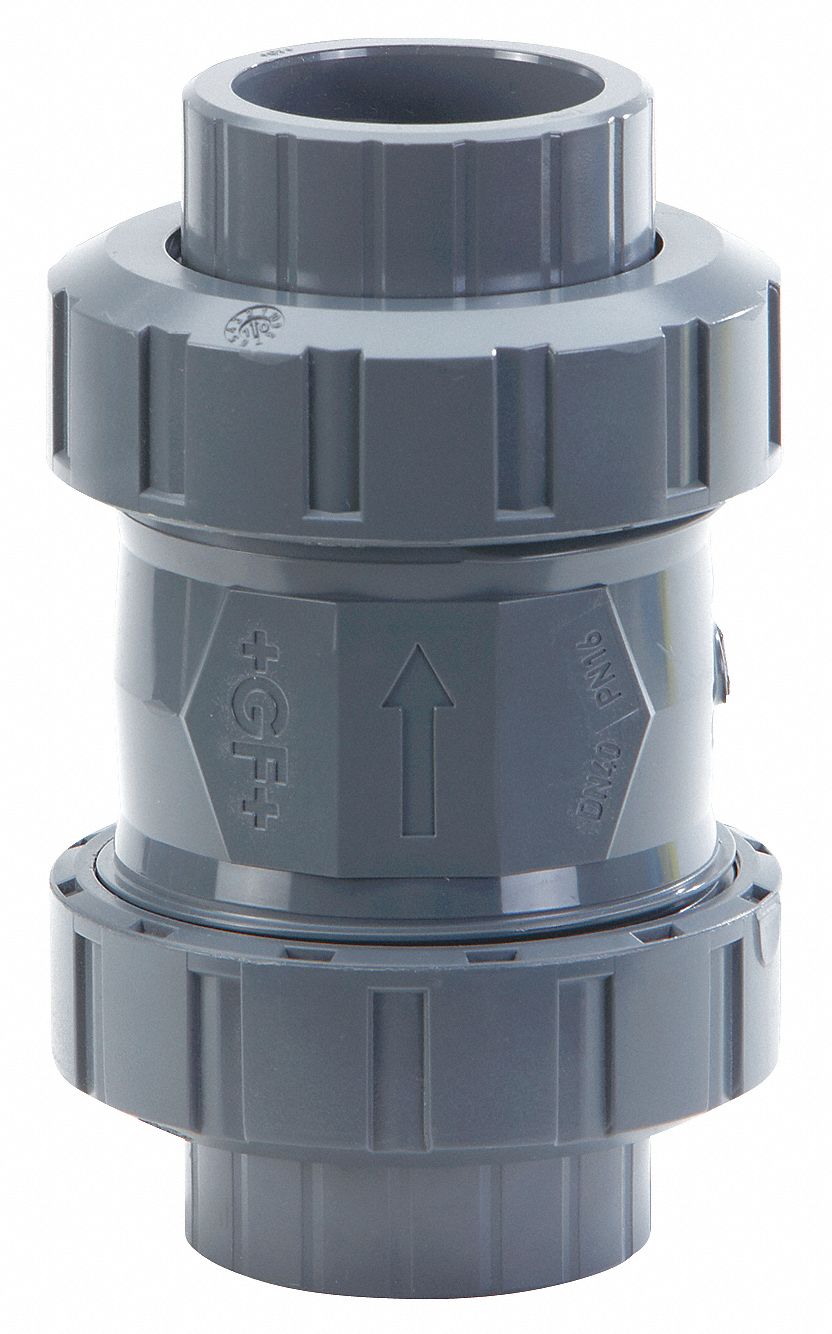

Georg Fischer 161562103 3/4 inches threaded socket PVC/EPDM check valve

Product Description

The GEORG FISCHER 161562103 check valve is a 3/4 inch threaded socket PVC/EPDM valve designed for general purpose applications. Featuring an inline spring mechanism and a PVC body, it ensures reliable flow control. The valve utilizes EPDM for both its seal and seat materials, offering durability. It can operate effectively up to 140 degrees F and has a cracking pressure between 2.000 and 3.000 psi, suitable for various industrial and plumbing systems.

• Designed for easy installation and removal.
• Ensures vibration-free performance even at high flow velocity.
• Features a spring-loaded, double-guided design with a flow-optimized return cone.

Product Highlights

Vertical or horizontal mounting for flexible installation, with sealing at a minimum water column of 0.5m.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 161562103
• Country of Origin: Switzerland

Technical Specifications

• Valve Type: Check Valve
• Seal Material: EPDM
• Pipe Size: 3/4 inch
• Max Operating Temperature: 140 Degrees F
• Flow Design: Single
• Body Material: PVC
• Max Operating Pressure: 232 psi
• Seat Material: EPDM
• Connection Type: Socket/Threaded x Socket/Threaded
• Mounting Position: Horizontal, Vertical
• Max Steam Pressure: Not Rated
• Application: General Purpose
• Mechanism and Body Design: Inline Spring
• Country of Origin: Switzerland
• Nominal Valve Size: 3/4 inch
• Connection Size Side 1: 3/4 inch
• Connection Size Side 2: 3/4 inch
• Connection: Socket/Threaded
• Spring Material: 304 Stainless Steel
• Flow Rate: 26 gpm
• Standards: ISO 9393/ISO 16137
• Connection Gender Side 1: Female
• Valve Body Style: Inline
• Connection Gender Side 2: Female
• Silent Check: Standard
• 3-A Standard Compliance: Not Rated
• Check Mechanism Material: PVC
• Connection Type Side 2: Socket
• Vacuum Service Rating: Not Rated
• Connection Type Side 1: Socket
• NSF Certifications for Food and Drinking Water: NSF 61
• Min Operating Temperature: 32 Degrees F
• Valve Series: Type 562
