GENTEQ MOTORS H430A Definite Purpose Contactor

Product Description

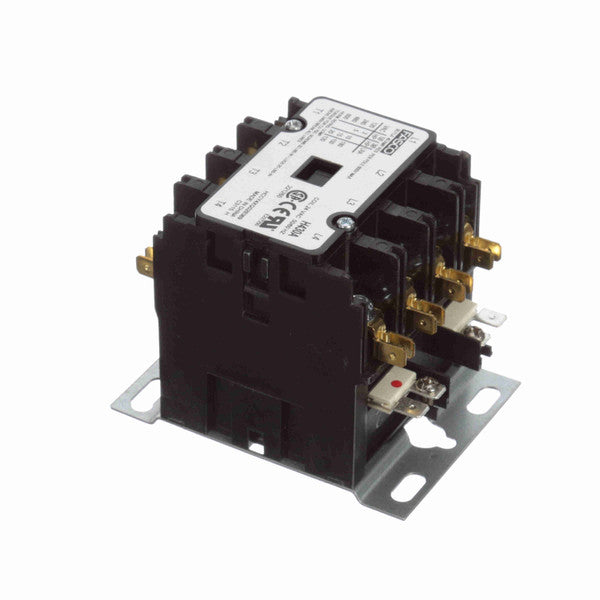

The GENTEQ MOTORS H430A is a definite purpose contactor designed for reliable electrical switching tasks. This contactor features a four-pole configuration and operates with a twenty-four volt AC coil. It is suitable for various horsepower ratings based on different voltage setups, accommodating both single-phase and three-phase systems. The contactor is equipped with quick connect terminals and binding head screws for efficient connectivity.

• Four-pole configuration.
• Coil voltage: twenty-four volts AC.
• Includes mounting plate.

Product Highlights

This contactor is ideal for applications requiring robust electrical control.

Product Information

Standard Information

• Brand: GENTEQ MOTORS
• MPN: H430A

Technical Specifications

• Poles: 4
• Coil Voltage: 24V AC
• Locked Rotor Amps: 180 / 150 / 120
• Resistive Amps: 40
• Coil VA Inrush 60 Hz: 60
• Coil VA Sealed 60 Hz: 6
• Coil VA Inrush 50 Hz: 65
• Coil VA Sealed 50 Hz: 7.5
• HP 120 Volts 1 Phase: 2
• HP 208 Volts 1 Phase: 0
• HP 240 Volts 1 Phase: 5
• HP 208 Volts 3 Phase: 0
• HP 240 Volts 3 Phase: 10
• HP 480 Volts 3 Phase: 15
• HP 600 Volts 3 Phase: 0

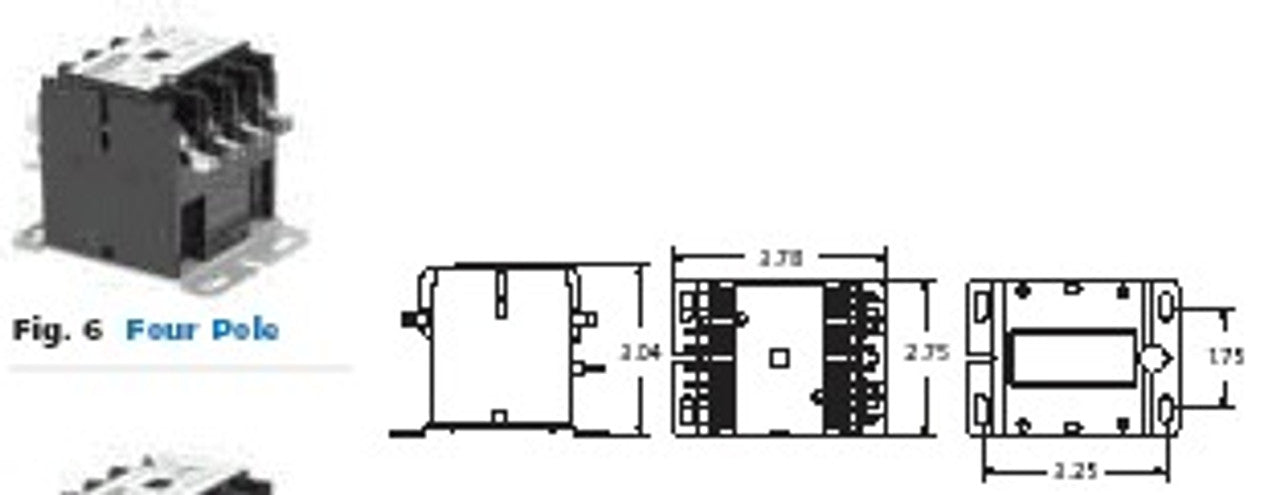

• Dimensions: 3.25 x 1.75 x 3.04
• Weight: 1.20 LB
• Packaged Length: 4 IN
• Packaged Width: 3 IN
• Packaged Height: 3 IN
