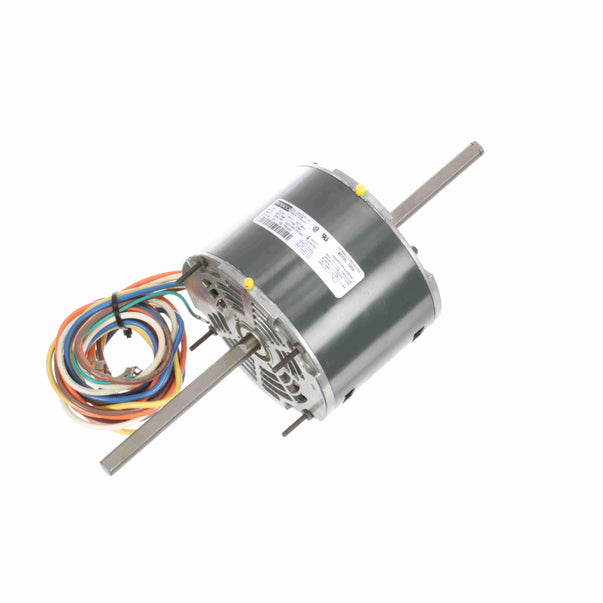

GENTEQ MOTORS D859 OEM Replacement Motor

Product Description

The GENTEQ MOTORS D859 is a reliable OEM replacement motor designed for various applications. This permanent split capacitor motor operates at one thousand one hundred RPM and is suitable for multiple horsepower ratings including one third, one fifth, and one eighth. It runs on two hundred thirty volts with a current draw of one point seven to one point three amps at sixty hertz. The motor features automatic thermal protection and offers three speed settings. The unit rotates in a counter-clockwise direction and includes sleeve bearings for smooth operation.

• Permanent split capacitor motor
• Voltage: 230; Current: 1.7-1.3 Amps
• Specifications: UL and CSA approved

Product Highlights

This motor is suitable for various HVAC systems and appliances, ensuring efficient performance and reliability.

Product Information

Standard Information

• Motor Type: Permanent Split Capacitor
• Agency Approvals: UL, CSA

Technical Specifications

• RPM: 1100
• HP: 1/3, 1/5, 1/8
• Volts: 230
• Amps: 1.7-1.5-1.3
• Hz: 60
• Phase: Single Phase
• Speeds: 3
• Rotation: DS
• Bearings: Sleeve
• Frame Size: 5.6
• Motor Diameter: 5.6 inches
• Motor Length: 4.25 inches
• Shaft: 4.25 x 0.5 x 5.25 inches
• Bolt Circle: 5-6/32 (5.2 inches)
• Ship Weight: 14 lbs
