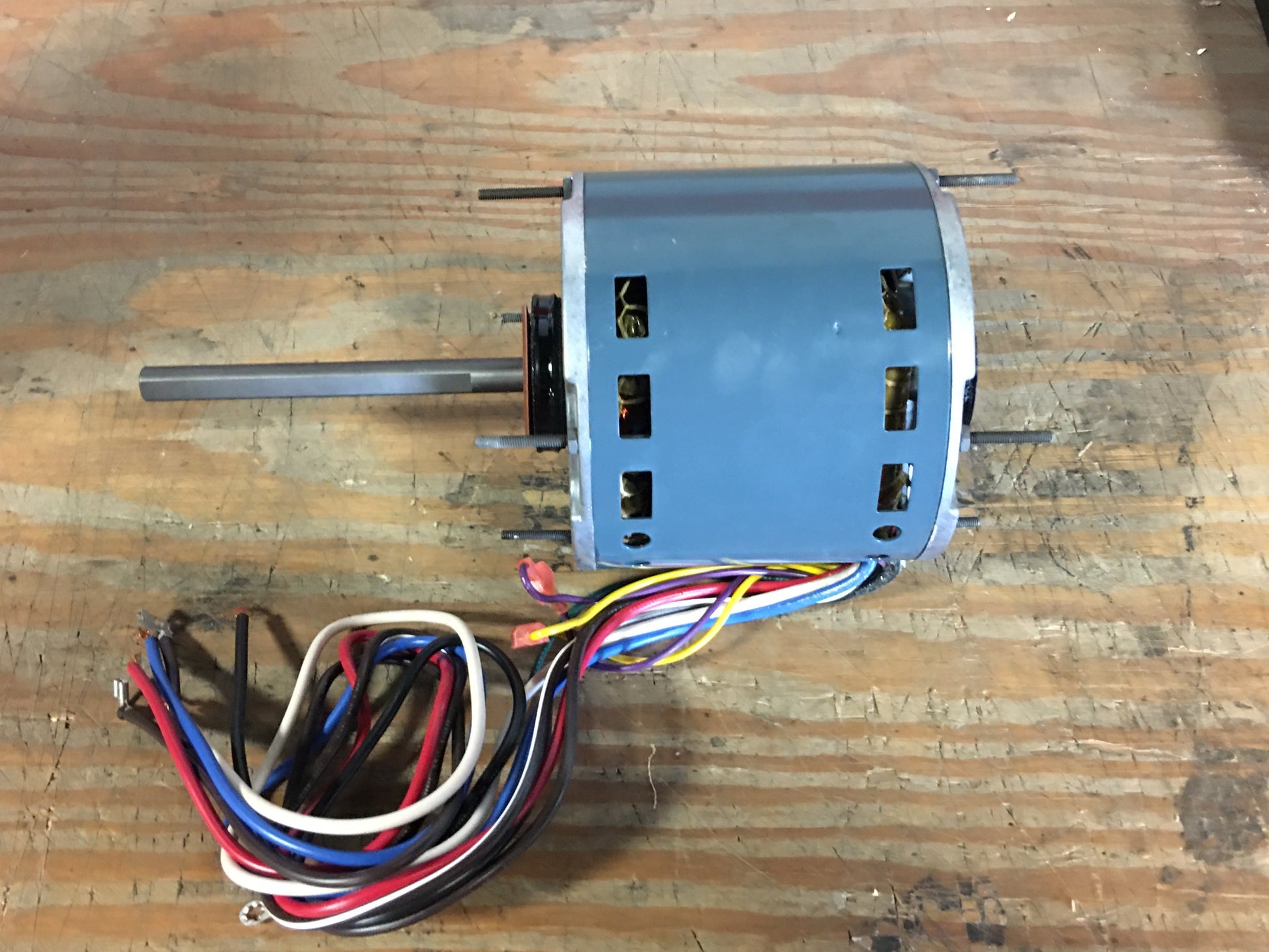

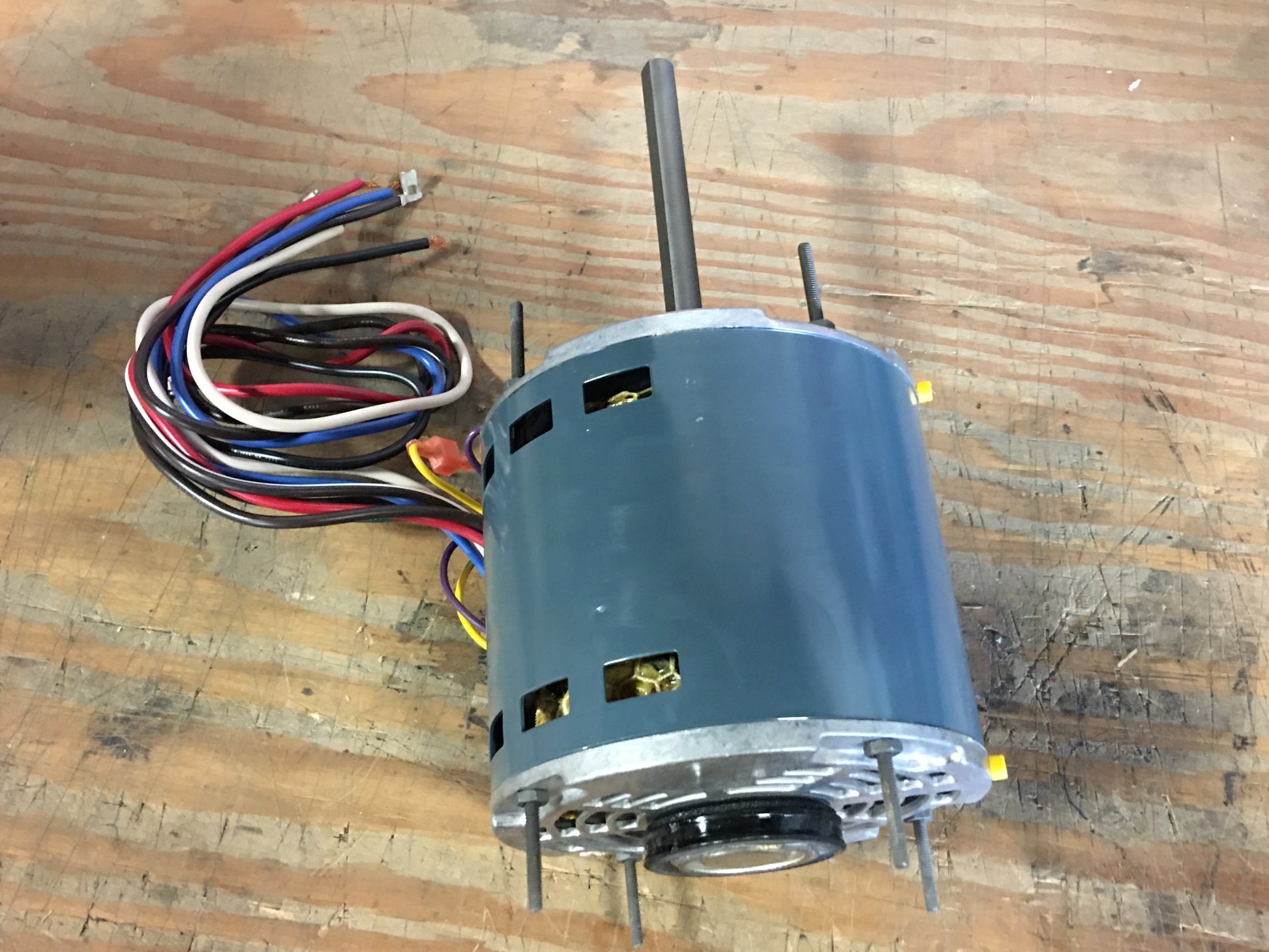

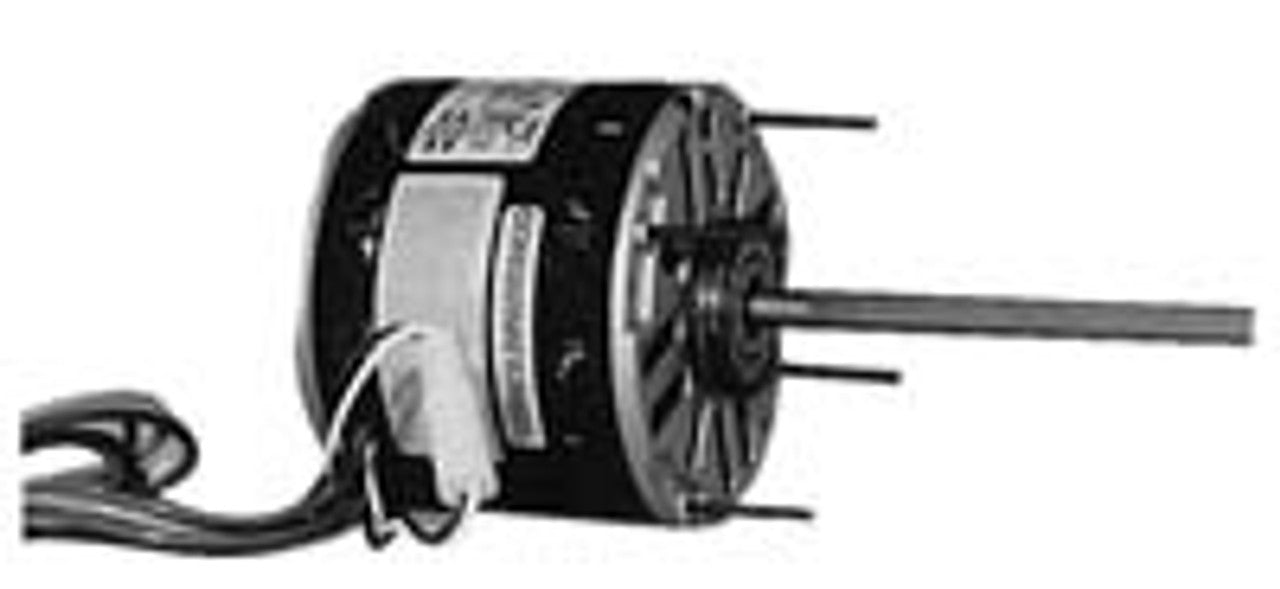

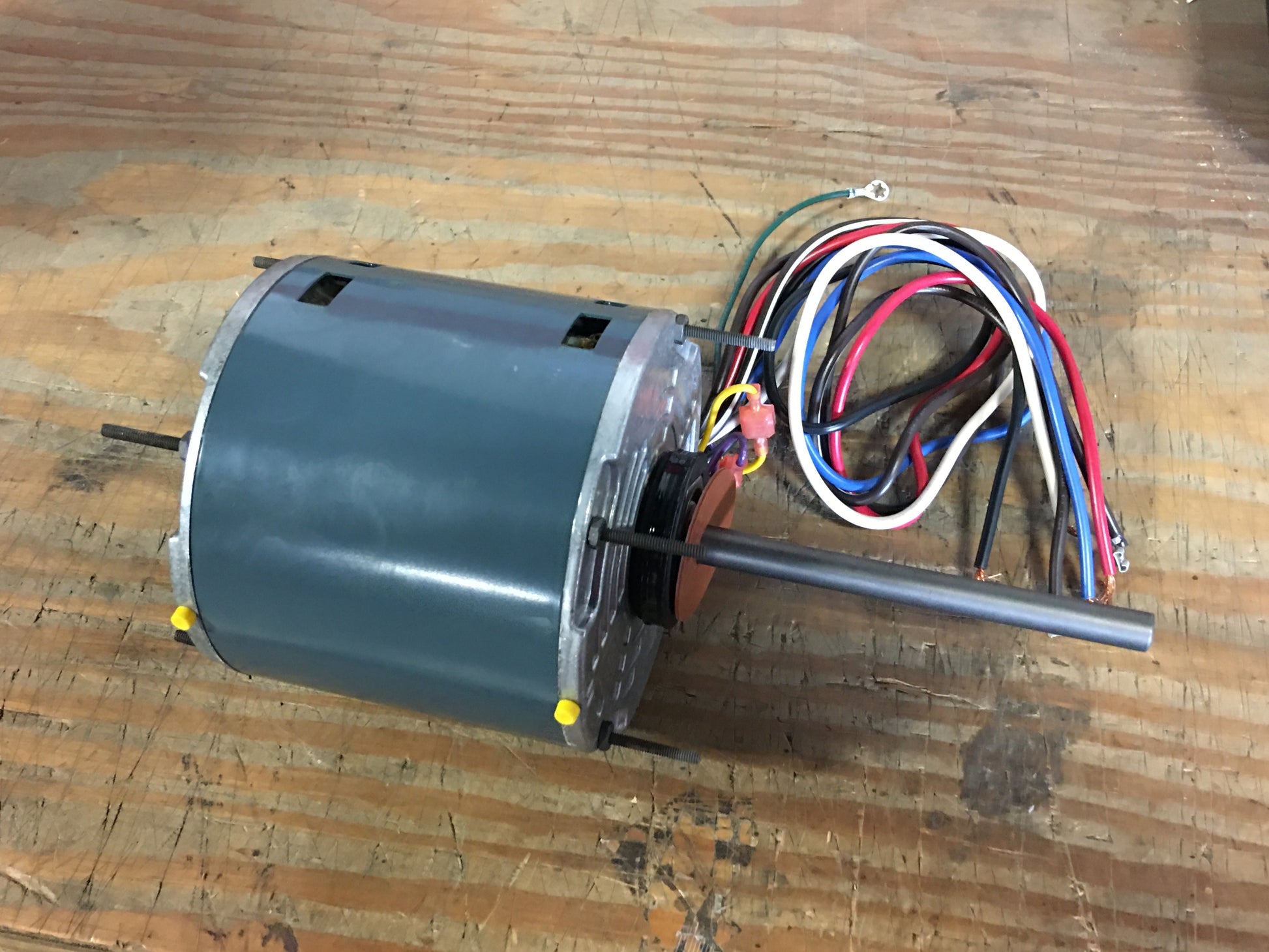

GENTEQ MOTORS D784 Electric Motor

Product Description

The GENTEQ MOTORS D784 is a three-speed electric motor suitable for indoor blower applications. This motor operates at 208-230 volts and is designed to function with a frequency of sixty hertz.

• Operates at 208-230 volts and sixty hertz.
• Includes three-speed options with reversible rotation.
• Constructed with sleeve bearings and features an auto protector.

Product Highlights

This GENTEQ MOTORS D784 electric motor is engineered for continuous air over applications. A capacitor is required for operation but is not included with the motor.

Product Information

Standard Information

• Manufacturer Part Number: D784
• Horsepower: 1/2-1/3-1/4

Technical Specifications

• Frequency: 60 Hz
• Input Voltage: 208-230 Volt
• Phase: 1
• Speed: 3
• RPM: 1625
• Input Current: 3.8-2.1 Amps
• Mounting Type: Stud Mount, Multiple Mount
• Bearing Type: Sleeve
• Rotation: Reversible
• Shaft Length: 5-3/8 inches
• Shaft Diameter: 1/2 Inch - Flatted Shaft
• Capacitor: 7.5 mfd-370V (not included)
• Capacitor Type: Psc 5 X 370 (not included)
• Ambient Temperature: 40 degrees Celsius
• Leads: 23 Leads (minimum)
• Frame Size: 48
• Weight: 15.00 pounds
• Features: Auto protector, continuous air over, high efficiency, open construction, resilient mounting rings included, permanent split capacitor
• Reversing Plug: Reversing plug
