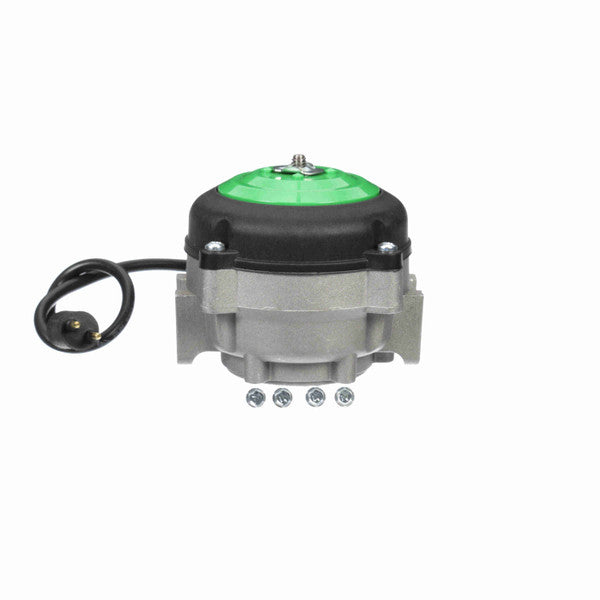

Genteq Motors 5R031 Refrigeration Motor

Product Description

The Genteq Motors 5R031 is a reliable single-phase refrigeration motor. It is designed for various refrigeration applications and operates with a single speed. This motor features electronically commutated technology for efficient performance. The motor is thermally and electronically protected and utilizes class B insulation to ensure durability and reliability in demanding environments.

• Single-phase, single-speed operation
• Totally enclosed air over enclosure
• IP65/IP66/IP67 rated and ATEX certified

Product Highlights

This refrigeration motor is suitable for different orientations and provides dependable operation for HVAC and refrigeration systems.

Product Information

Standard Information

• Brand: Genteq Motors
• MPN: 5R031

Technical Specifications

• Phase: 1
• Output Watts: 4-16 W
• Input Voltage: 90-240 V
• Frequency: 50-60 Hz
• Speed: 1550 rpm
• Service Factor: 1
• Efficiency: 76 %
• Thermal Protection: Automatic, Electronically Protected
• Ambient Temperature: 60 °C
• Input Current: 0.58-0.28 A
• Insulation Class: B
• Drive End Bearing Size: 607DD
• Opp Drive End Bearing Size: 607ZZ
• UL: E359622, Yes
• CSA: N, Y
• CE: Y, N
• IP Code: IP66/67, IP65
• Number of Speeds: 1
• Hazardous Location: ATEX
• Poles: 4
• Rotation: Clockwise Opposite Shaft End
• Motor Orientation: All
• Drive End Bearing: Sealed Ball Bearing
• Opp Drive End Bearing: Metal Shield Ball Bearing
• Shaft Type: Single flat, M4 thread
• Overall Length: 81 mm, 3.54 in
• Shaft Diameter: 0.276 in
• Frame: UNIT BEARING
• Enclosure: Totally Enclosed Air Over
• Electrical Type: Electronically Commutated Motor
• Starting Method: Across The Line
• Mounting: 2 BOSS/OSE 5 HOLES
• Frame Material: Aluminum
• Shaft Extension: 0.33 in
• Frame Length: 3.22 in
