Genteq 5kcp39kgb764s 1/3 Hp Blower Motor 1075 Rpm

Product Description

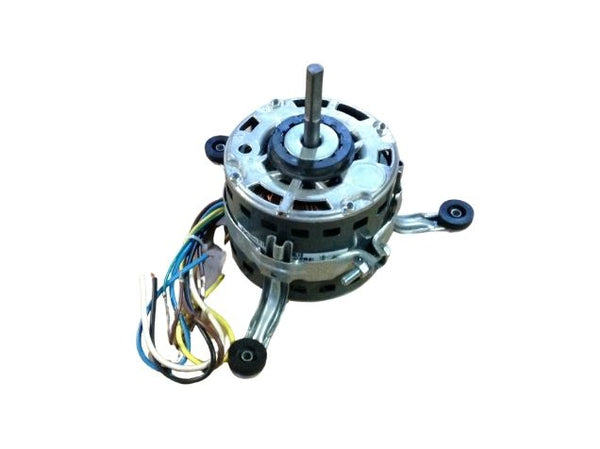

The GENTEQ 5kcp39kgb764s is a 1/3 horsepower PSC blower motor designed for forced-air HVAC applications. Rated at 208-230 volts, 60 Hz, single phase, and 1075 RPM, it delivers consistent airflow in residential and light commercial air handling equipment. The motor features a single shaft configuration with a 1/2-inch shaft diameter and a shaft length of 2.75 inches. Rotation is counter-clockwise lead end (CCWLE). At 11 pounds and measuring 4.5 inches in height with a 5.625-inch diameter, it fits band tri-mount configurations standard in many furnace and air handler assemblies. Licensed HVAC technicians are the typical installers for this motor.

This blower motor is suited for installation in residential and light commercial forced-air systems where a band tri-mount, single-shaft motor at 1075 RPM is specified. It is manufactured in Mexico and shipped in a box without manufacturer retail packaging. Its 208-230 volt rating makes it compatible with standard North American residential supply voltage, including many systems wired at either 208 or 230 volts. The motor is appropriate for indoor air handler or furnace blower compartments where a 5.625-inch diameter frame fits the existing motor mount.

Key Features

• 1/3 HP output at 1075 RPM for consistent blower performance
• 208-230 volt, 60 Hz, single-phase operation
• Counter-clockwise lead end (CCWLE) rotation
• Band tri-mount, single-shaft design for common HVAC blower applications
• 1/2-inch shaft diameter, 2.75-inch shaft length
• Compact 5.625-inch diameter frame at 4.5 inches in height

Compatibility

Designed as an OEM-style replacement blower motor for residential and light commercial forced-air furnace and air handler units requiring a band tri-mount, 5.625-inch diameter, 1/3 HP, 1075 RPM, 208-230 volt single-phase motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing motor. Confirm shaft rotation direction and voltage rating match the existing motor specifications before installation. Refer to the equipment manufacturer's wiring diagram and applicable local electrical codes during reconnection.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208-230 volts
• Frequency: 60 Hz
• Phase: Single
• Speed: 1075 RPM
• Rotation: Counter-clockwise lead end (CCWLE)
• Shaft Diameter: 0.5 inches
• Shaft Length: 2.75 inches
• Motor Diameter: 5.625 inches
• Motor Height: 4.5 inches
• Weight: 11 pounds
• Mounting Type: Band Tri-Mount
• Shaft Configuration: Single Shaft
• Country of Origin: Mexico

Standard Information

• Brand: GENTEQ
• Manufacturer Part Number: 5kcp39kgb764s
