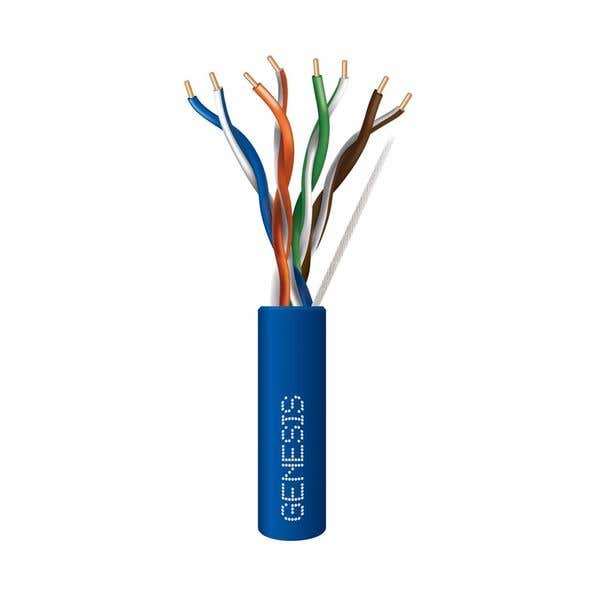

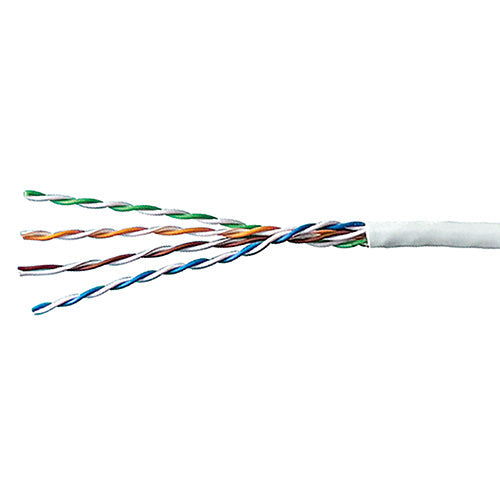

Genesis Cable 63301106 cat5e 24/4pr solid non-riser 1000pb

Product Description

The Genesis Cable 63301106 features 4 solid 24 AWG copper conductor-pairs and verified Category 5e performance. This cable has a general purpose rating, making it suitable for dependable voice and data wiring. It comes in a 1000 ft pull box.

• 4 solid 24 AWG copper conductor-pairs
• Verified Category 5e performance
• General purpose rating

Product Highlights

CAT5E cable with 4 solid 24 AWG copper conductor-pairs and a general purpose rating. Ideal for voice and data wiring.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 63301106

Technical Specifications

• Cable Rating: General Purpose
• Cable Listing: CM, Sunlight Resistant
• Wire Gauge (AWG): 24
• Solid or Stranded: Solid
• Number of Strands: 1
• Conductor Material: Bare Copper
• Number of Pairs: 4
• Shielding: Unshielded
• Rip Cord: Yes
• Jacket Material: PVC
• Nominal Outer Diameter: 0.210 in.
• Rated Voltage (Max): 300 Volts
• DC Resistance (Max): 9.38 Ohms / 100 m at 20 °C
• Capacitance (Nominal): 5.6 nF / 100 m at 20 °C
• Impedance (Nominal): 100 Ohms
• Velocity of Propagation: 0.69
• Temperature Rating (Max): 75 °C
• Temperature Rating (Min): -20 °C
• Product Length: 1000 ft
• Length Per Unit: 1000 ft.
• Package Quantity: 1
• Cable Packaging: Pull Box
• Product Type: Cat5E Cable
• Type: General Purpose
