Genesis Cable 54745501 Audacious Sound Cable, Riser 16 AWG

Product Description

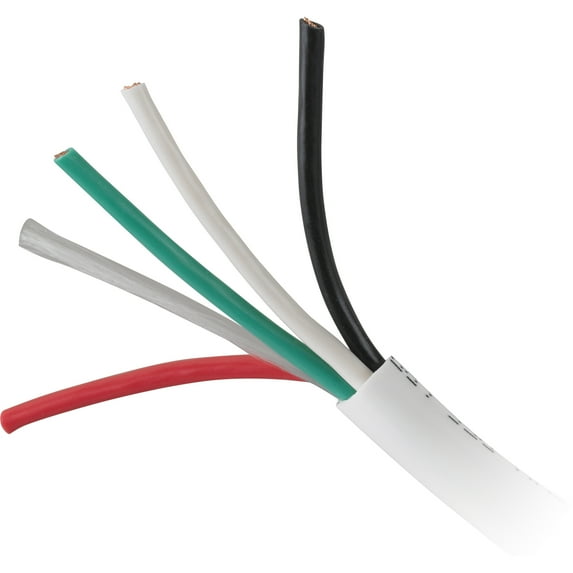

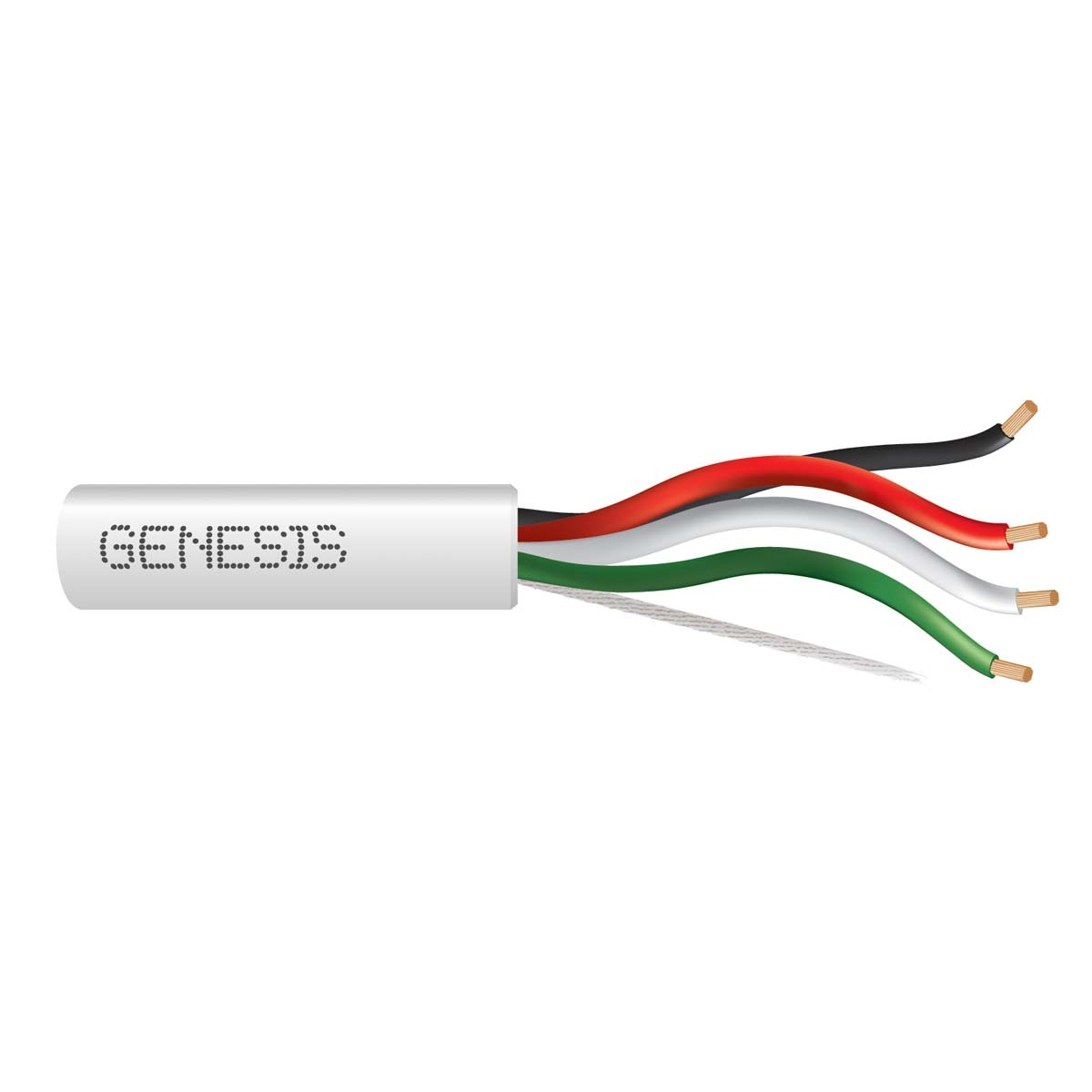

The Genesis Cable 54745501 Audacious Sound Cable is a riser-rated cable suitable for installation in metal raceways and risers. Features oxygen-free bare copper conductors for sound transmission and low voltage drop. Includes a durable rip cord for jacket stripping and Countdown length markings. Rated for 300 Volts and temperatures from -20°C to 75°C.

• Features oxygen-free bare copper conductors for excellent sound transmission.
• Includes a durable rip cord for efficient jacket stripping.
• Rated for 300 Volts and temperatures from -20 °C to 75 °C.

Product Highlights

Riser-rated sound cable with oxygen-free copper conductors, rip cord, and length markings.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 54745501
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 4
• Stranding: Stranded
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 49
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 54745501
• Packaged Quantity: 1
• Product Line: Audacious Sound Cable
• Product Model: 54745501
• Product Type: Audio & Speaker Cables
• American Wire Gauge: 16AWG
• Armored: No
• Cable Rating: Riser
• Conductor Count: 4
• Conductor Material: Oxygen-free Copper (OFC)
• Core/Cladding Diameter: 16/4
• Jacket Material: PVC
• Jacket Type: FT4, Riser
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 500'
• Insulation Material: PVC
• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Flame Rating: UL 1666 Riser
• DC Resistance: 4.19 Ohms/M' at 20C
• Impedance: 85 Ohms nom.
• Capacitance: 22 pf/ft nom.
• Operating Voltage: 300 Volts max.
• Temperature Rating: -20 to 60C
• UPC: 781410995659
• Country of Origin: United States
• Insulation: PVC
• Conductor: 4 Conductor Stranded
• Green Compliant: Yes
• Category: Sound Wire
• Packaging: Boxed Spool
• Jacket: CMR, CL3R, FT4
• Device Support: Audio Device
• Green Compliance Certificate/Authority: RoHS
• Certifications & Standards: UL, NEC Articles 725 & 800, E175106, C(UL)US
• RoHS Compliant: Yes
• Cable jacket material: Fluoropolymer, Polyvinyl Chloride (PVC)
• Rec location: Indoor
