Genesis Cable 50781106 Category 5e Cable, Riser 1000 FT PULL BOX

Product Description

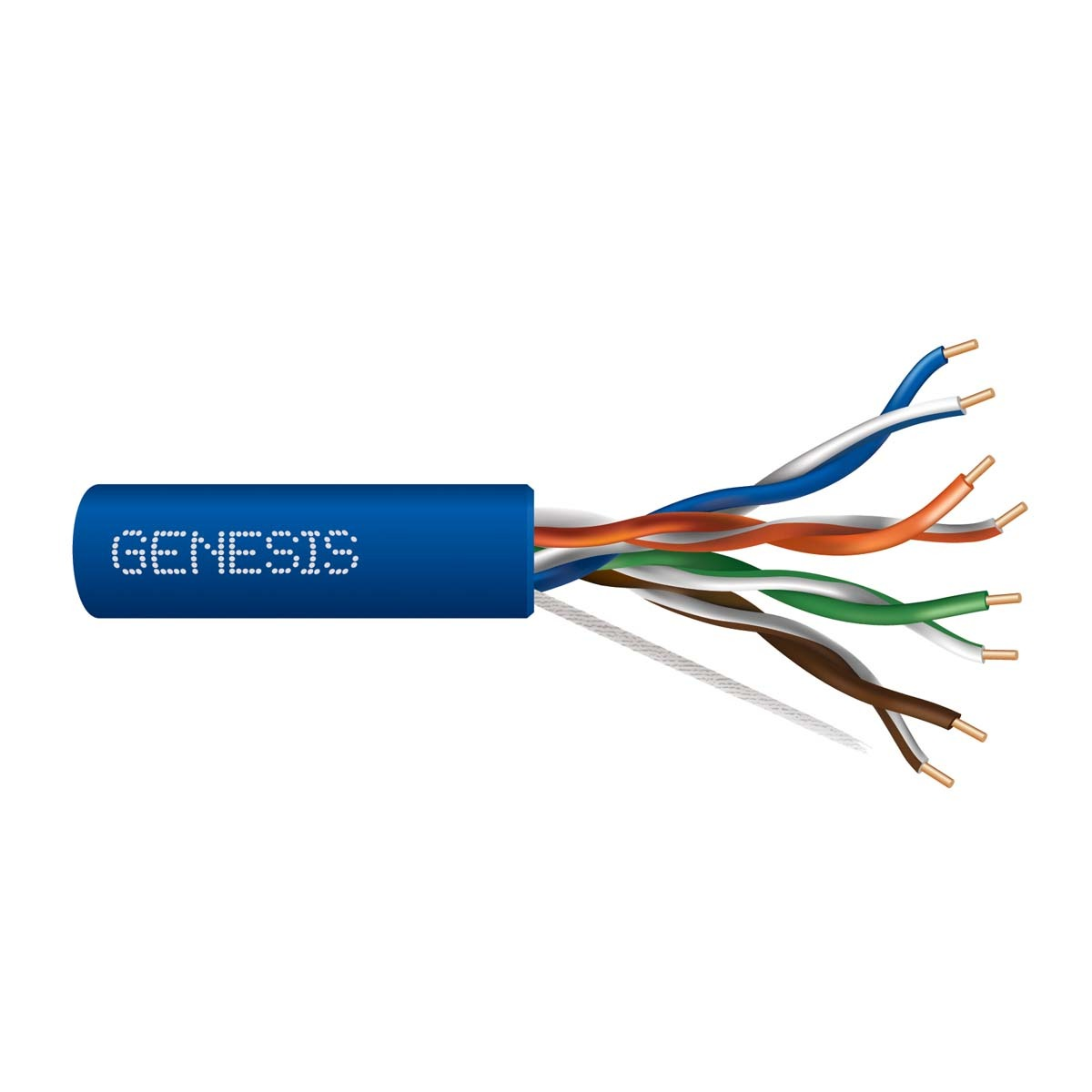

The Genesis Cable 50781106 is a Riser Rated Category 5e Cable suitable for installation in metal raceways and risers. Features bare copper conductors for signal transmission and low voltage drop. Includes Polypropylene or Polyethylene insulation and a PVC jacket. Designed with a durable rip cord for jacket stripping and removal and marked with Countdown length markings.

• Suitable for installation in metal raceways, solid bottom metal cable trays and risers.
• Bare Copper conductors for excellent signal transmission.
• Durable rip cord for efficient jacket stripping and removal.

Product Highlights

Category 5e cable with bare copper conductors, PVC jacket, and rip cord for easy installation. Ideal for networking and Ethernet applications.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 50781106
• Country of Origin: United States

Technical Specifications

• Construction: 24 AWG 4PR SOL
• Outer Jacket / Armor Color: BLACK, BLUE, GRAY, GREEN, ORANGE, PINK, PURPLE, RED, WHITE, YELLOW

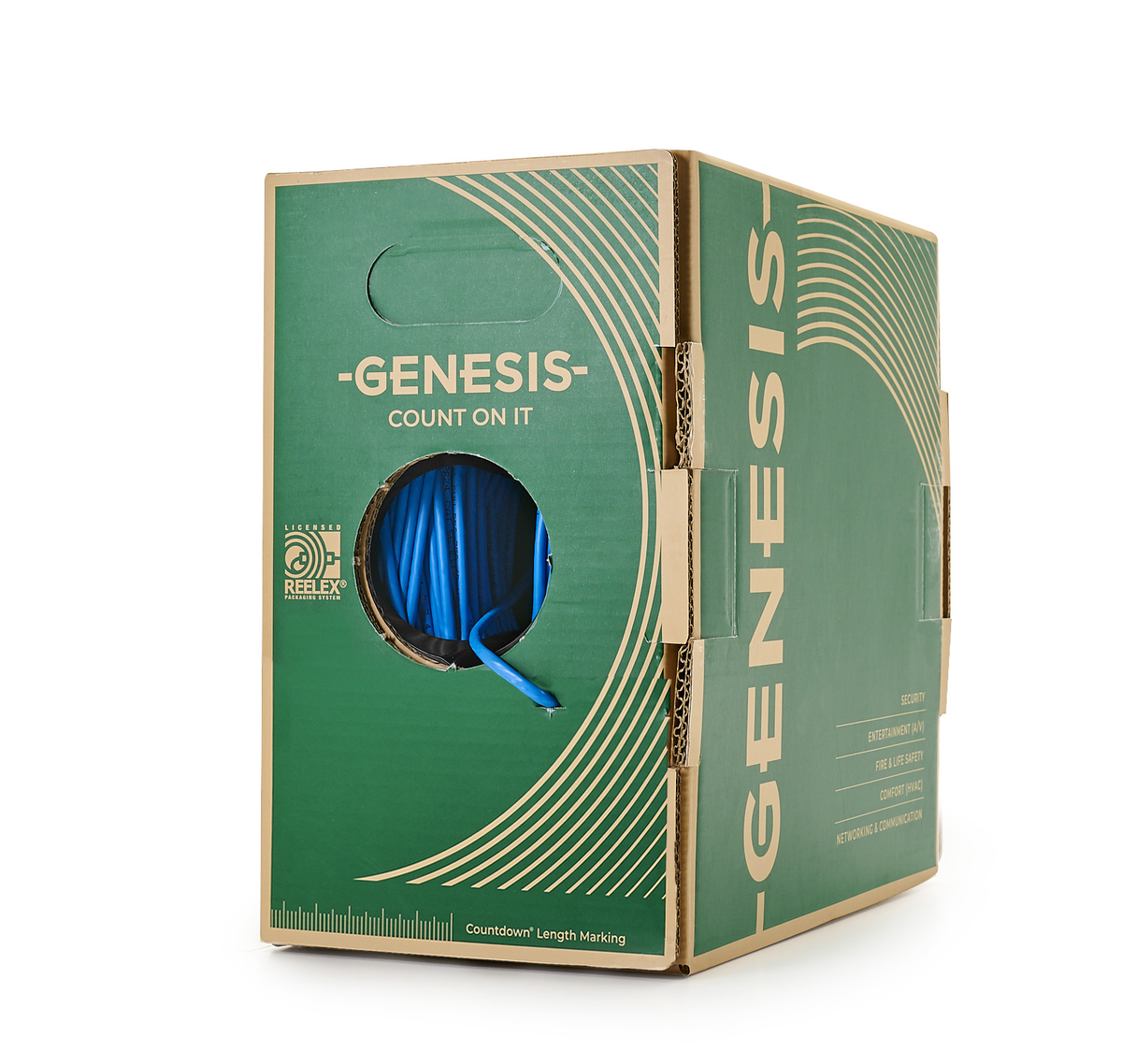

• Packaging: 1000 FT PULL BOX
• Size (AWG or kcmil): 24 AWG
• Number of Pairs: 4
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 21
• Nominal Total Weight (kgs/km): 31
• Material: Copper
• Gauge: 24.0
• Number of Conductors: 8
• Conductor: 24 AWG Solid Bare Copper Color Code Pair
• Conductor Count: 8 (4 pairs) Blue & White/Blue 1
• Insulation: HDPE or PP Orange & White/Orange 2
• Rip Cord: Yes Brown & Brown/White 4
• Jacket: PVC
• Overall Diameter: 0.200 nom.
• Temperature: -20°C to 75°C
• Operating Voltage: 300V max.
• RoHS Compliant: Yes
• Velocity of Propagation: 69% nominal
• DC Resistance: 9.38 Ohms/100m max. @ 20°C
• Resistance Unbalance: 5% max. @ 20°C
• Capacitance: 5.6 nF/100m max. @ 20°C
• Capacitance Unbalance: 330 pF/100m max. @ 20°C
• Propagation Delay: 570 ns/100m max. @ 20°C
• Delay Skew: 45 ns/100m max. @ 20°C
