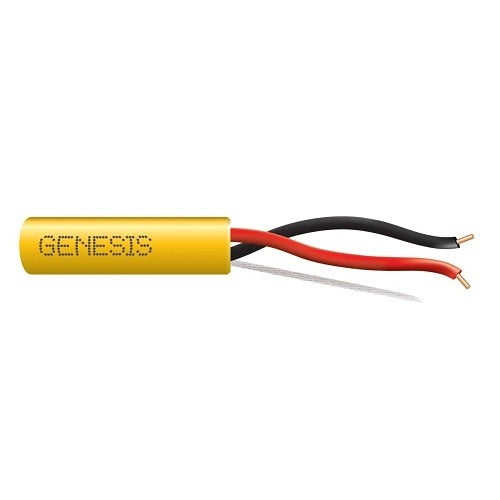

Genesis Cable 45131002 14/2 Solid Fplp Fire Alarm Cable Yellow

Product Description

The GENESIS CABLE 45131002 is a 14 AWG 2-conductor solid-conductor FPLP-rated fire alarm cable supplied on a 1000-foot roll in yellow jacketing. FPLP (Fire Power Limited Plenum) designation means this cable meets the plenum-space requirements of NFPA 72 and NEC Article 760, making it suitable for installation in air-handling spaces without conduit where local codes permit. The unshielded, solid-conductor construction is standard for initiating device circuits and notification appliance circuits in conventional and addressable fire alarm systems. Electricians and fire alarm system technicians are the primary installers.

This cable is used in commercial and residential fire alarm installations where plenum-rated wiring is required. Typical applications include connecting smoke detectors, pull stations, horn-strobes, and control modules back to a fire alarm control panel. The yellow jacket color is a widely recognized convention for fire alarm wiring, aiding in circuit identification during rough-in and future service work. The 1000-foot roll length suits new construction and large retrofit projects where longer home-runs are common.

Key Features

• FPLP plenum rating meets NEC Article 760 and NFPA 72 requirements for air-handling spaces
• 14 AWG solid conductors for low-resistance runs on initiating and notification circuits
• 2-conductor configuration covers standard two-wire circuit wiring
• Unshielded construction simplifies termination and reduces installation time
• Yellow outer jacket supports quick visual identification of fire alarm wiring
• 1000-foot roll minimizes splice points on longer circuit runs

Compatibility

Designed as an OEM-style plenum fire alarm cable suitable for use in conventional and addressable fire alarm system wiring applications requiring FPLP-rated 14 AWG 2-conductor solid cable.

Installation Notes

Installation must be performed by a licensed electrician or qualified fire alarm technician in accordance with NFPA 72, NEC Article 760, and all applicable local codes. De-energize the fire alarm control panel and follow lockout/tagout procedures before making any circuit connections. In plenum spaces, verify that the FPLP rating satisfies the authority having jurisdiction before pulling cable. Do not exceed the minimum bend radius of the cable during pull-through to avoid damaging conductor insulation.
