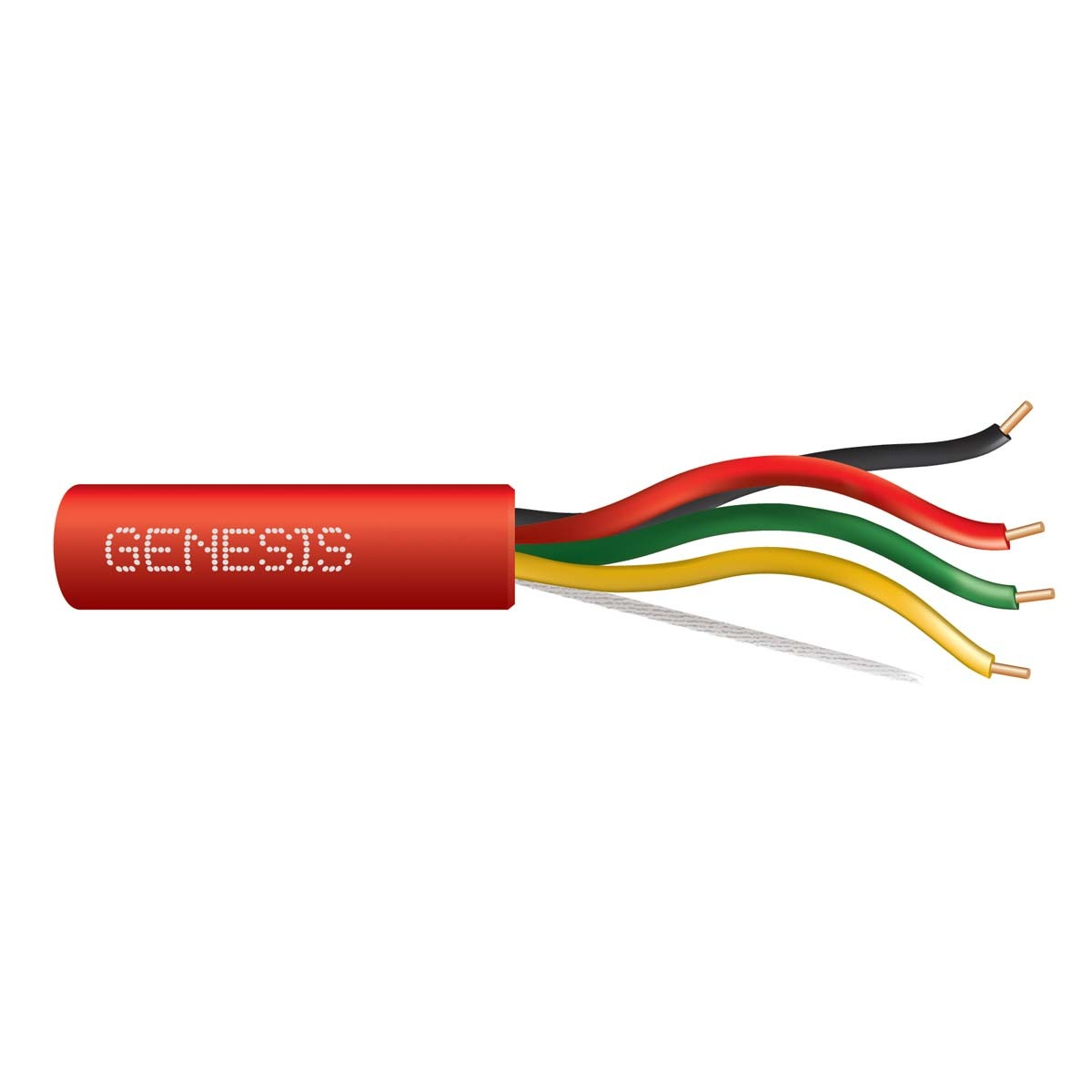

Genesis Cable 45071104 18/4 Solid Unshielded Fire Alarm Cable, Plenum, FPLP, 1000 feet Pull Box

Product Description

The Genesis Cable 45071104 is an 18/4 solid unshielded fire alarm cable, built to exceed fire safety codes. Features bare copper conductors, low-smoke PVC insulation, and a plenum PVC jacket. Designed for use in fabricated ducts and other spaces used for environmental air. Comes in a 1000' REELEX pull box.

• Bare Copper conductors for excellent conductivity and low voltage drop
• Low-Smoke PVC insulation
• Plenum PVC jacket

Product Highlights

Ensure uninterrupted fire protection with this UL listed, USA-made Genesis Cable. Ideal for fire alarm systems, it offers durability and safety with its plenum rating and robust construction.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 45071104
• Country of Origin: United States

Technical Specifications

• ADI Part Number: WG-45071104
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 45071104
• Packaged Quantity: 1
• Product Model: 45071104
• Product Type: Fire Alarm Cables
• American Wire Gauge: 18AWG
• Armored: No
• Cable Rating: Plenum
• Conductor Count: 4
• Conductor Material: Bare Copper
• Core/Cladding Diameter: 18/4
• Jacket Material: LS-PVC
• Jacket Type: Plenum
• Number of Conductors: 4
• Shielding: No
• Solid or Stranded: Solid
• TAA Compliant: Yes
• Cable Length: 1000'
• Insulation Material: LS-PVC
• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Nominal Total Weight (lbs/1000'): 27
• Connector on First End: Bare Wire
• Connector on Second End: Bare Wire
• Device Supported: Fire Alarm
• Material: Polyvinyl Chloride (PVC) - Jacket
