Genesis Cable 45061104 18/2 Solid Unshielded Cable 1000 feet/Box

Product Description

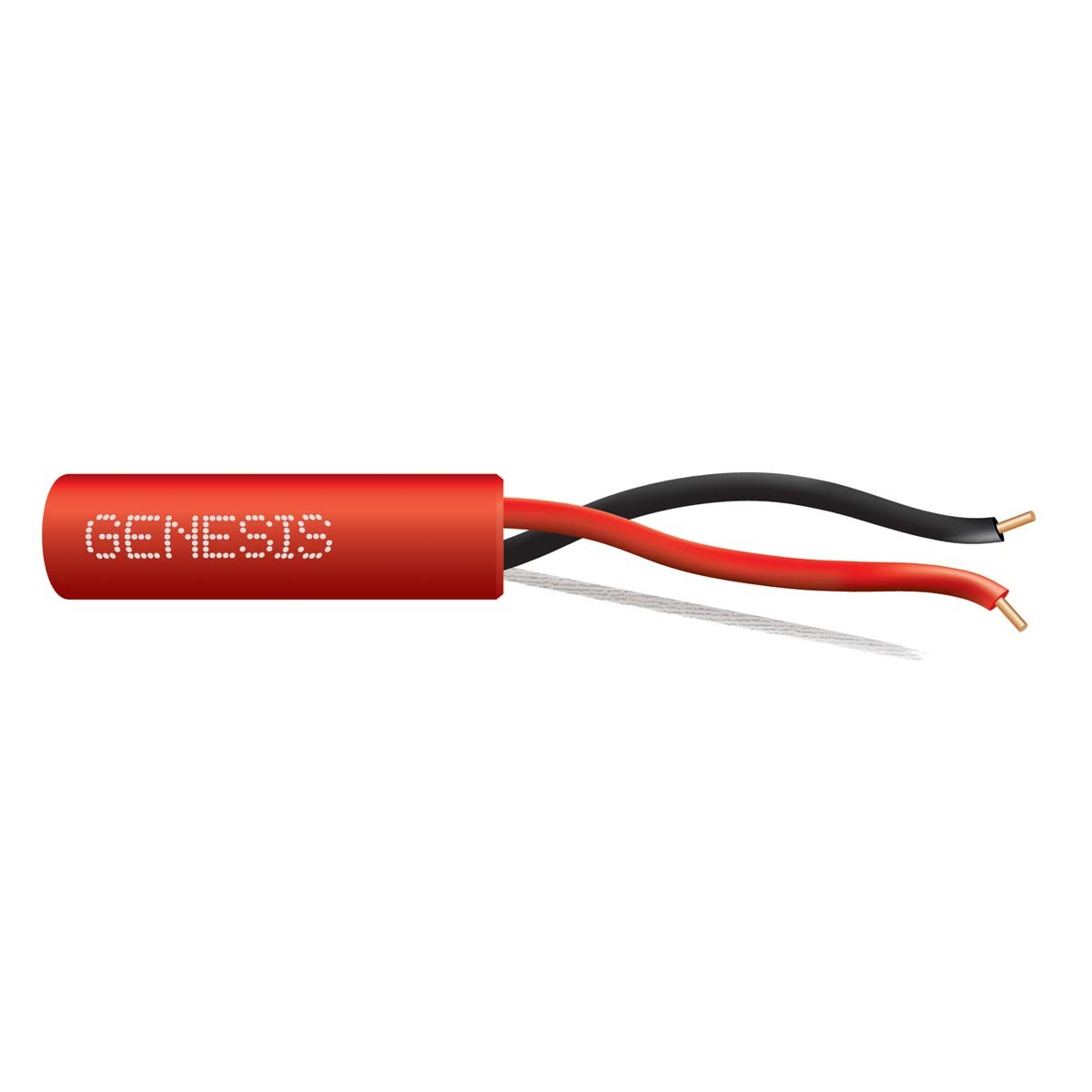

The Genesis Cable 45061104 is an 18/2 solid unshielded cable, supplied as a 1000'/Box. This fire alarm cable is built to exceed fire safety codes and regulations. It features bare copper conductors, Low-Smoke PVC insulation and a plenum PVC jacket. The cable is UL listed and Made in the USA.

• Bare Copper conductors for excellent conductivity and low voltage drop
• Low-Smoke PVC insulation
• Plenum PVC jacket
• Durable rip cord for efficient jacket stripping and removal

Product Highlights

This cable features countdown length markings for easy tracking and is rated for 300 Volts and -20 °C to 75 °C. It is REACH/RoHS Compliant.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 45061104
• Country of Origin: US

Technical Specifications

• Brand: Honeywell
• Manufacturer: Genesis Cable
• Model / MPN: 45061104
• Product Type: ELECTRONIC_CABLE
• Product Group: Electronics
• ADI Part Number: WG-45061104
• Packaged Quantity: 1
• Product Model: 45061104
• Product Name: 18 AWG 2C SOL Plenum, Red, 1000 ft. Pull Box
• Fire Alarm Cables: Fire Alarm Cables
• American Wire Gauge: 18AWG
• Armored: No
• Cable Rating: Plenum
• Conductor Count: 2
• Conductor Material: Bare Copper
• Core/Cladding Diameter: 18/2
• Jacket Material: LS-PVC
• Jacket Type: Plenum
• Number of Conductors: 2
• Number of Pairs: 1
• Shielding: No
• Solid or Stranded: Solid
• TAA Compliant: Yes
• ADI Part Number Replaces: WG-45062104
• Model Number Replaces: 45062104
• Cable Length: 1000'
• Insulation Material: LS-PVC

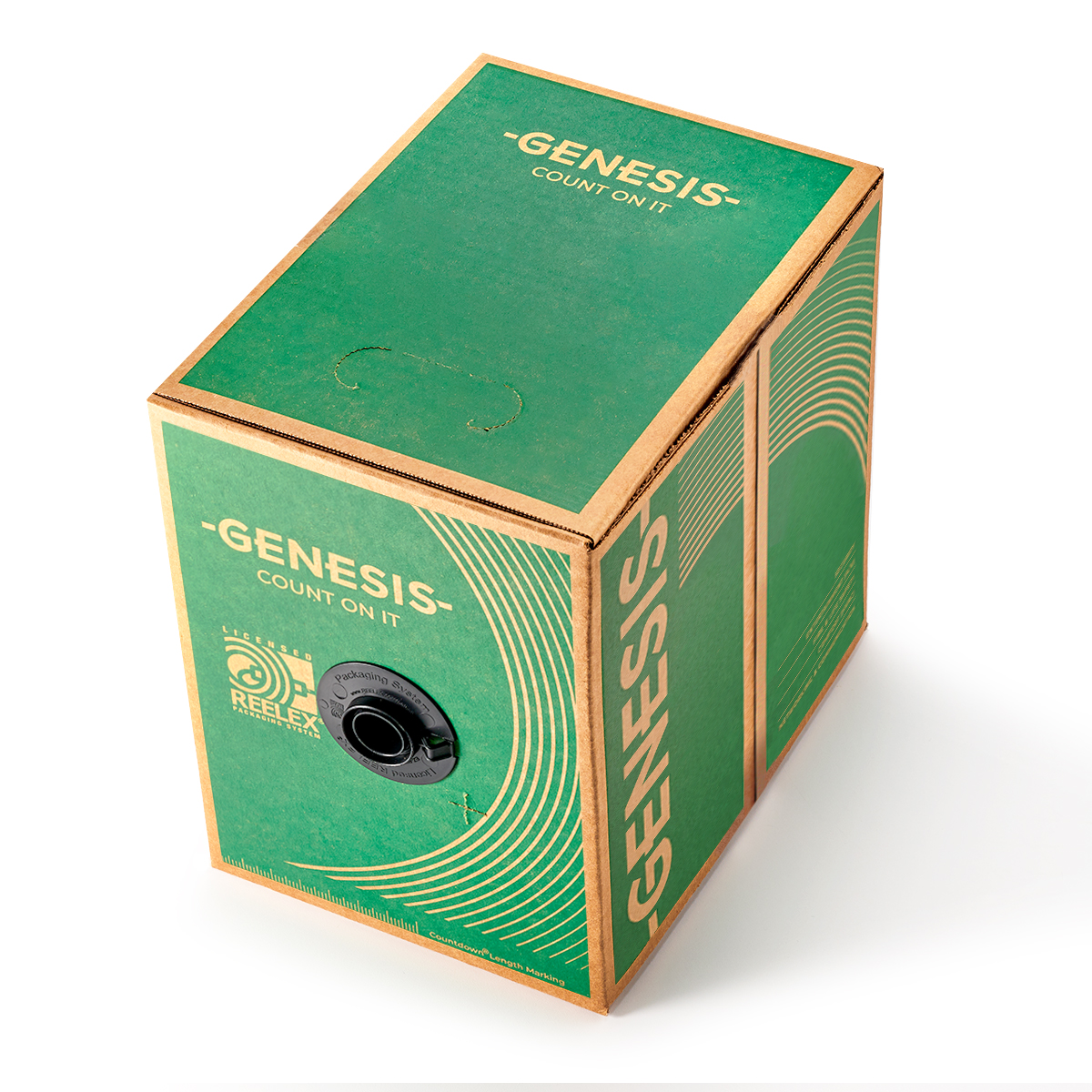

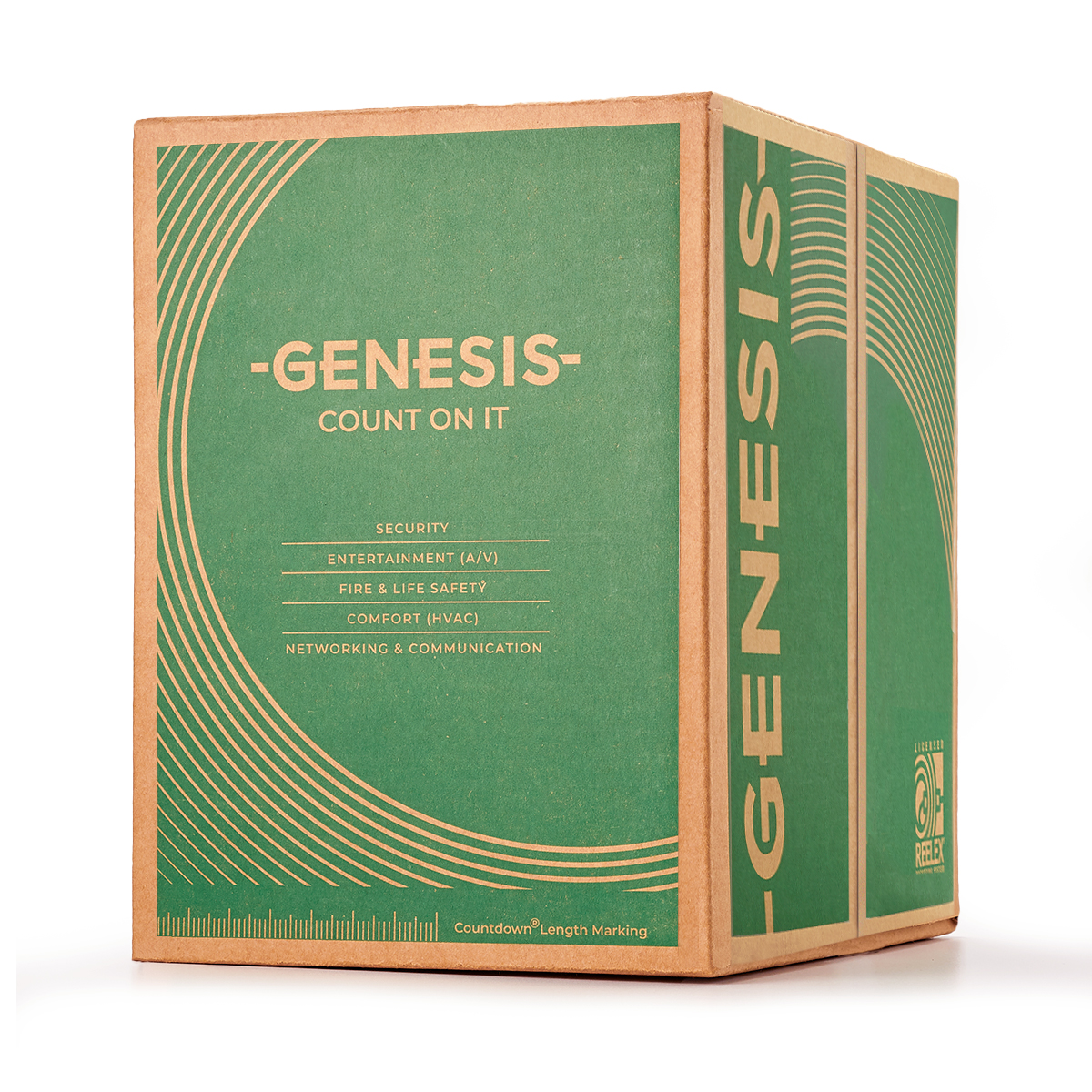

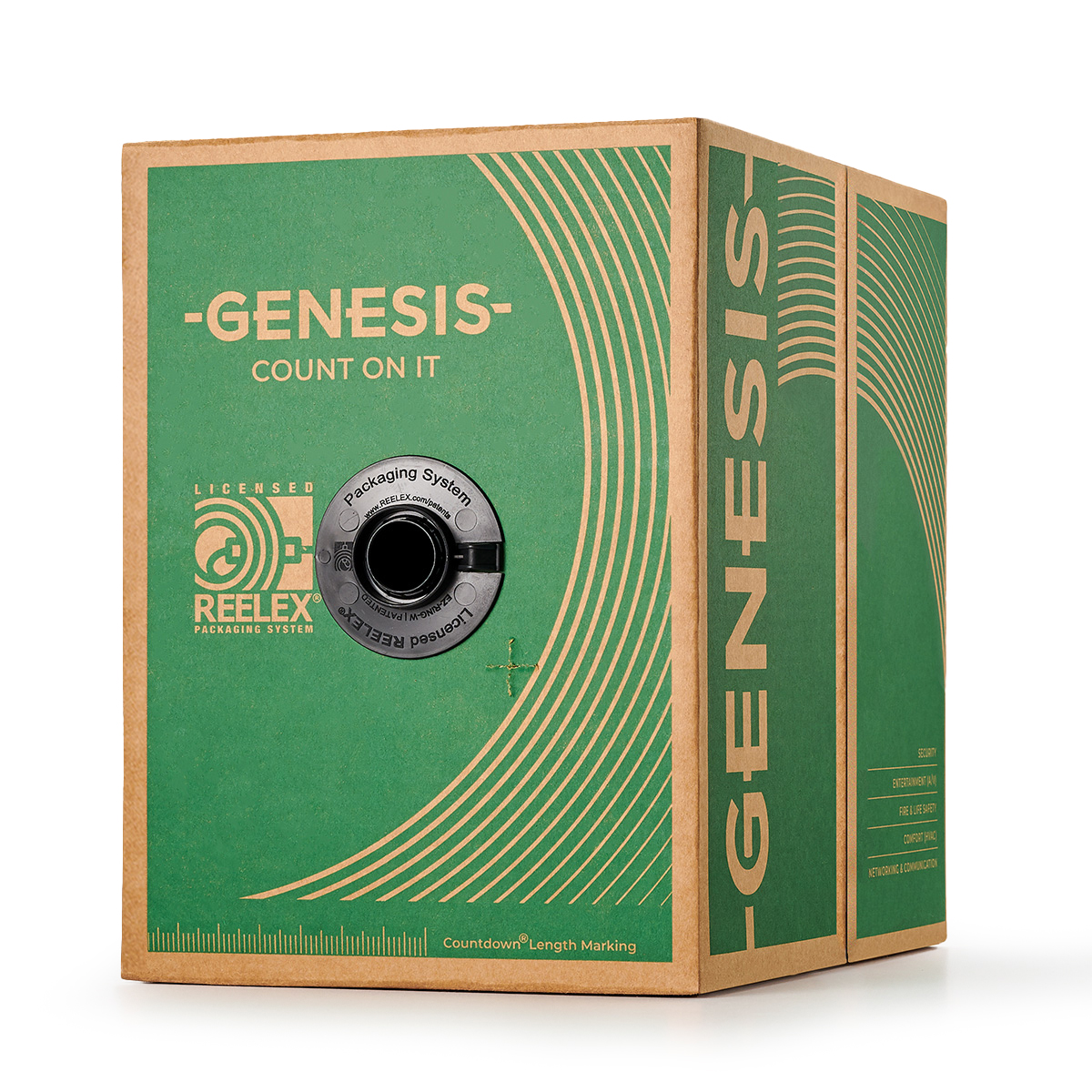

• Package Type: REELEX Pull Box
• Weight: 15.50 lb
• Limited Warranty: 1-Year
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Size (AWG or kcmil): 18 AWG
• Stranding: Solid
• Nominal Total Weight (lbs/1000'): 15
