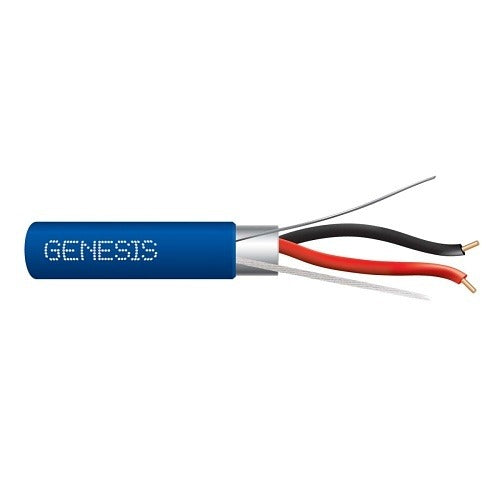

Genesis Cable 44061006 16/2 Solid Fplr Fire Alarm Cable Blue

Product Description

The GENESIS CABLE 44061006 is a 16 AWG 2-conductor solid fire alarm cable rated FPLR (Fire Power Limited Riser), supplied on a 1000-foot roll in blue. FPLR-rated cable is listed for use in riser applications, meaning it is approved to run vertically between floors in a building without requiring conduit in those pathways. The solid conductor construction provides reliable, low-resistance signal paths suited for fire alarm initiating circuits, notification circuits, and other low-voltage fire protection wiring. It is installed by licensed fire alarm technicians and low-voltage electricians working to NFPA 72 and local fire code requirements.

This cable is intended for use in commercial and residential fire alarm systems where a riser-rated, solid-conductor 16 AWG two-conductor cable is specified. The 1000-foot roll length is practical for larger installations and multi-floor commercial projects. Blue jacket color aids in circuit identification during installation and future service work. It is commonly used on fire alarm control panel wiring, initiating device circuits, and signaling line circuits where FPLR-rated cable is the specified minimum rating.

Key Features

• FPLR riser rating approved for vertical runs between floors without conduit in plenum-free riser shafts
• 16 AWG solid conductors for stable, low-resistance signal transmission
• 2-conductor configuration suitable for two-wire fire alarm circuits
• 1000-foot roll reduces splice points on large installations
• Blue jacket color supports field identification and circuit tracing

Compatibility

Designed as an FPLR-rated riser fire alarm cable for use in fire alarm systems requiring 16 AWG 2-conductor solid wiring per NFPA 72 and applicable local codes.

Installation Notes

Installation must be performed by a qualified fire alarm technician or licensed low-voltage electrician in accordance with NFPA 72, NFPA 70 (NEC Article 760), and local authority having jurisdiction requirements. De-energize and lock out the fire alarm control panel before splicing or terminating cable. FPLR-rated cable is not listed as a substitute for FPLP plenum-rated cable in air-handling spaces. Verify local code requirements for conduit fill, support spacing, and bend radius before pulling cable.
