Genesis Cable 43111004 fire alarm unshielded cable, riser 16 AWG

Product Description

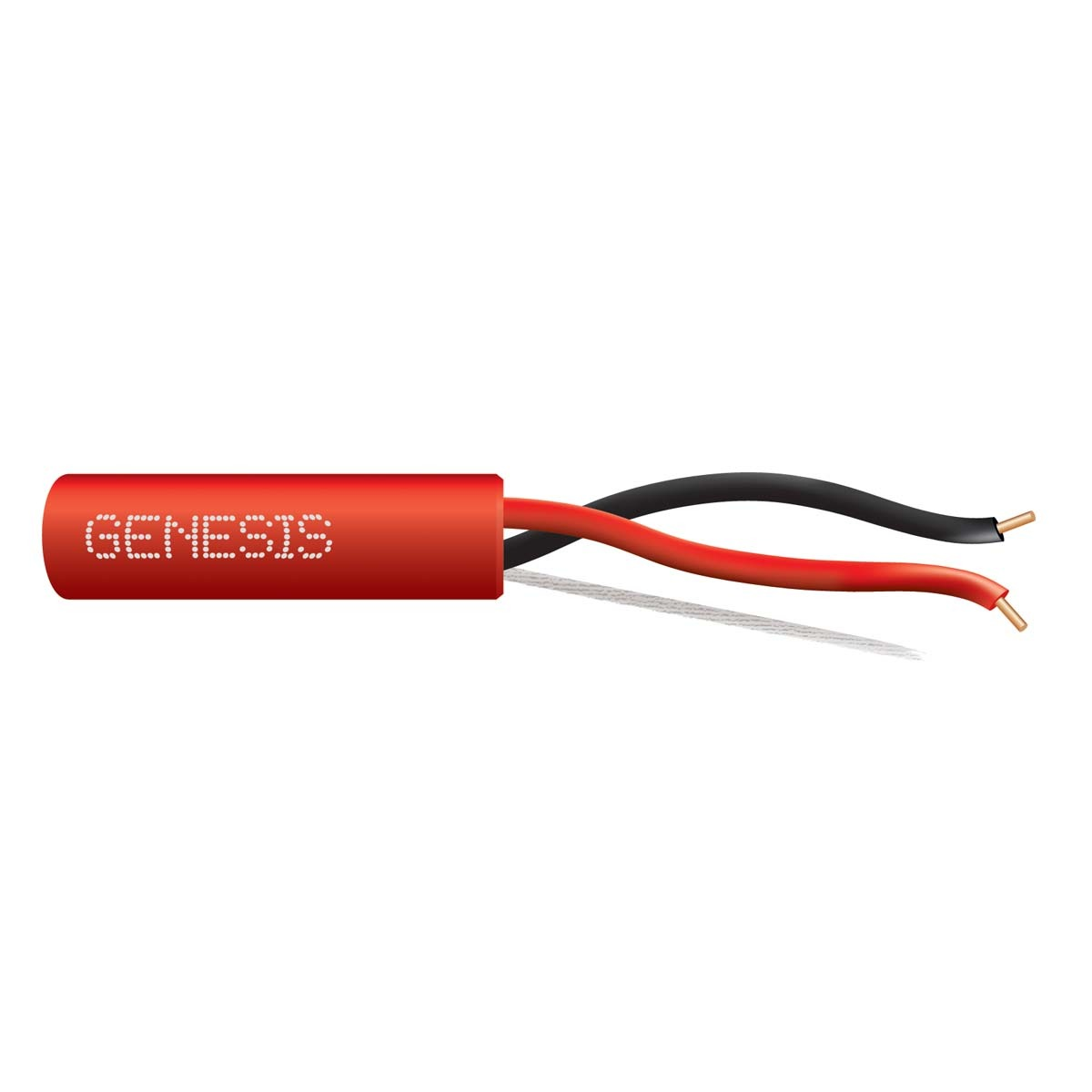

The Genesis Cable 43111004 is a riser-rated unshielded fire alarm cable suitable for installation in metal raceways, solid bottom metal cable trays with solid metal covers, and risers. This 16 AWG cable features bare copper conductors for excellent conductivity and low voltage drop. It is rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• PVC jacket.

Product Highlights

16 AWG unshielded fire alarm cable with bare copper conductors, polypropylene insulation and PVC jacket.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 43111004

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 2
• Stranding: Solid
• Shielding: Unshielded
• Device Supported: Fire Alarm
• Color: Red

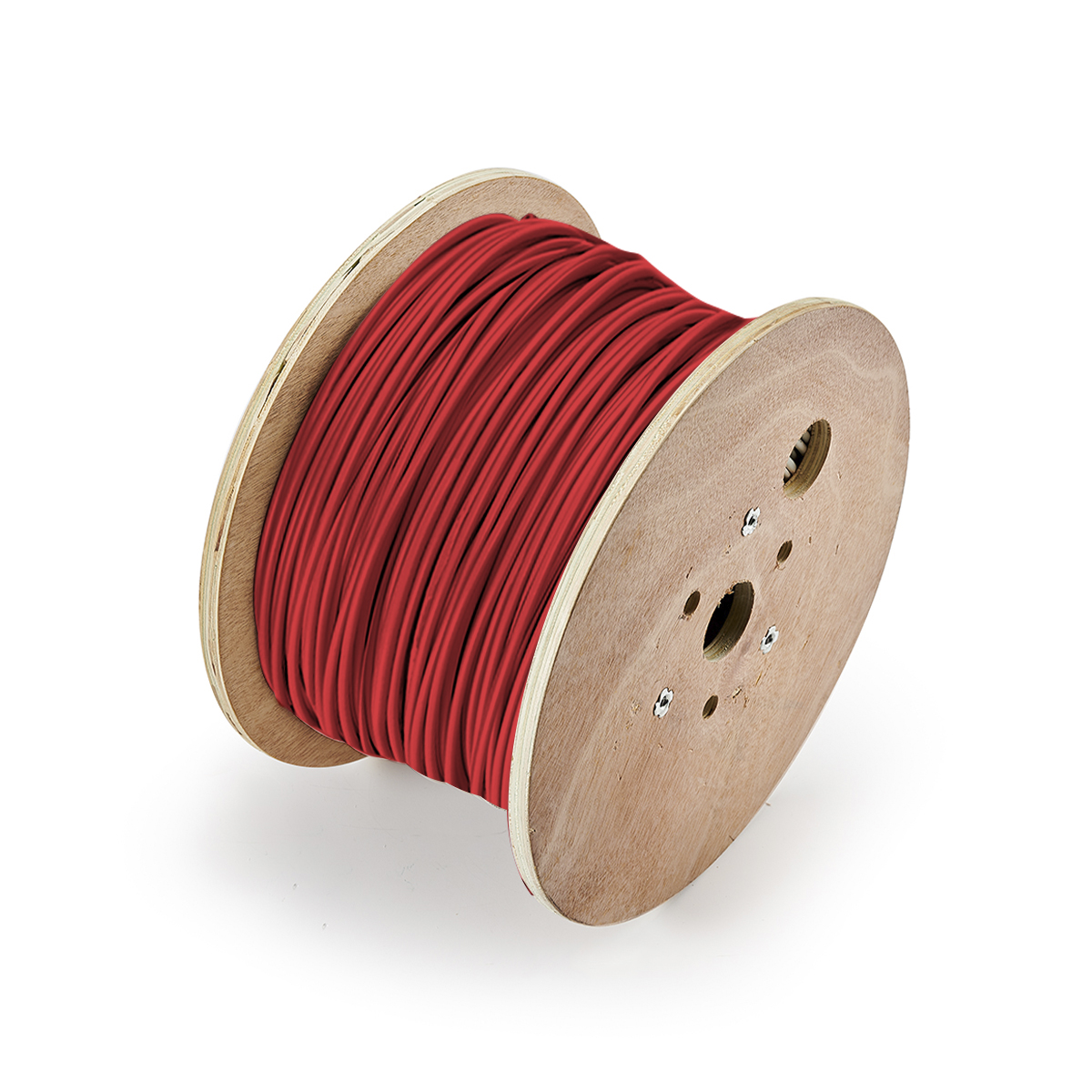

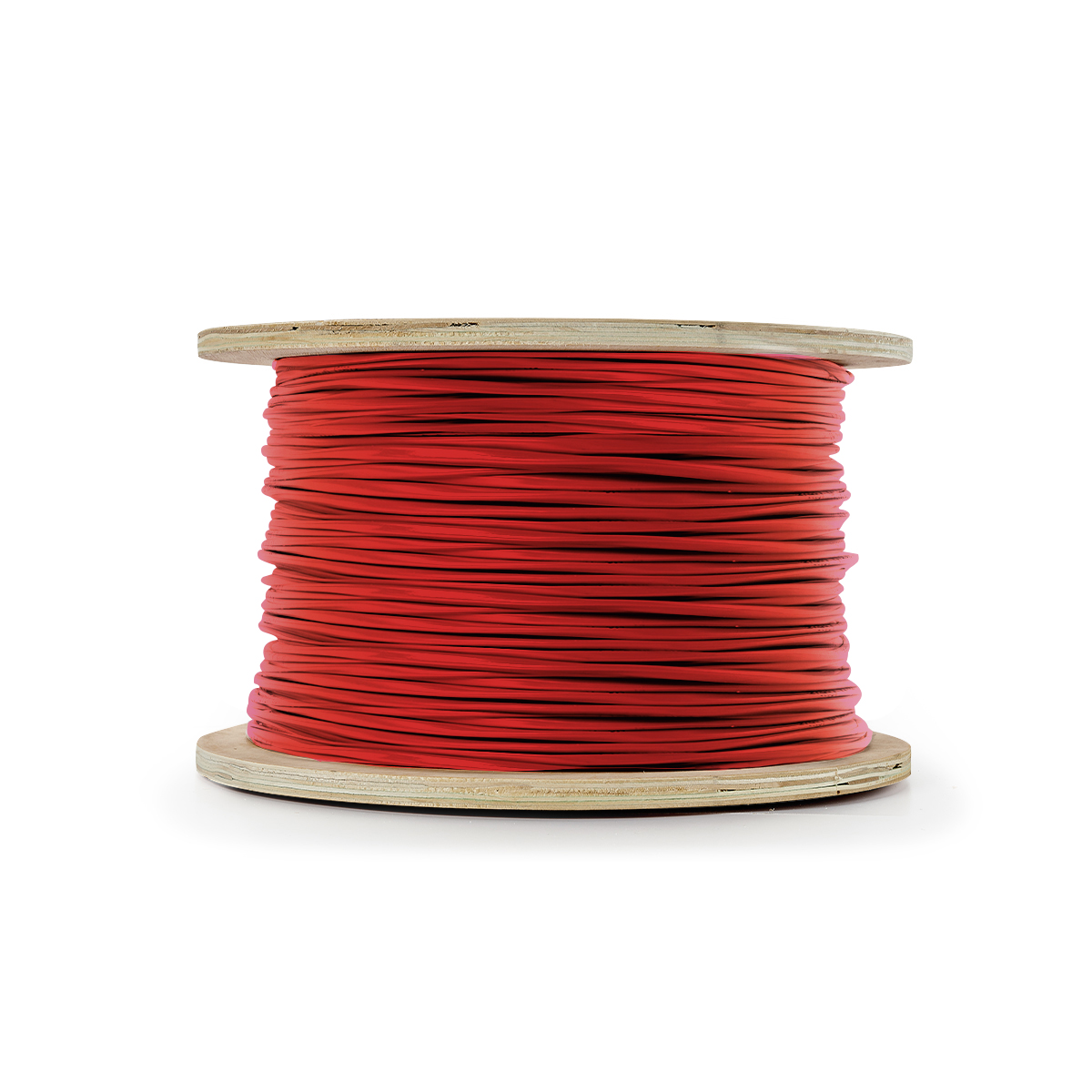

• Cable Length: 1000 ft
• Connector on First End: Bare Wire
• Product Type: Control Cable
• Material: Polyvinyl Chloride (PVC) - Jacket
• BRAND: Genesis Cable
• MFG #: 43111004
• SES #: HCA 43111004
• UPC: 619172016346
• Connector on Second End: Bare Wire
