Genesis Cable 43075504 fire alarm unshielded cable, riser 500 ft RM-294L2R

Product Description

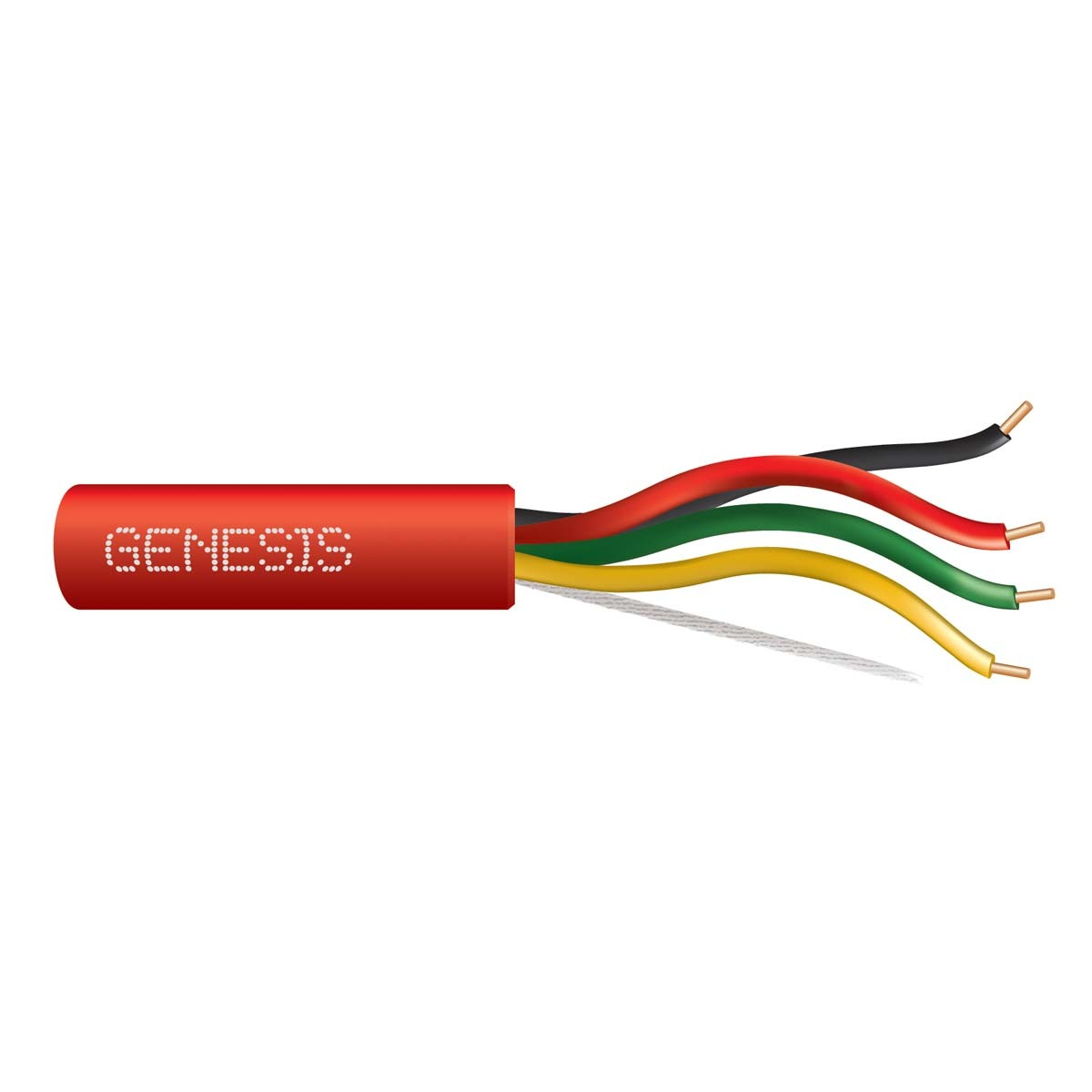

The Genesis Cable 43075504 is a riser-rated unshielded fire alarm cable suitable for a variety of installations. Features bare copper conductors for excellent conductivity, polypropylene insulation, and a PVC jacket. Includes a durable rip cord for efficient jacket stripping and Countdown length markings. Rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• PVC jacket.

Product Highlights

This Genesis Cable is a dependable fire alarm system wiring solution with 4 solid 18 AWG copper conductors and a riser rating.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 43075504
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 26
• Nominal Total Weight (kgs/km): 38
• Material: Copper
• Cable Rating: Riser
• Cable Listing: FPLR, CL3R, FT4, Sunlight Resistant
• Wire Gauge (AWG): 18
• Number of Strands: 1
• Conductor Material: Bare Copper
• Conductor Insulation Material: Polypropylene
• Insulation Colors: Black, Red, Green, Yellow
• Rip Cord: Yes
• Jacket Material: PVC
• Nominal Outer Diameter: 0.159 in.
• Rated Voltage (Max): 300 Volts
• DC Resistance (Max): 6.52 Ohms / 1000 ft. at 20 °C
• Capacitance (Nominal): 22.8 pF / ft.
• Impedance (Nominal): 66 Ohms
• Velocity of Propagation: 0.67
• Temperature Rating (Max): 75 °C
• Temperature Rating (Min): -20 °C
• Product Length: 500 ft
• Length Per Unit: 500 ft.
• Package Quantity: 1
• Cable Packaging: Pull Box
• Flame Rating: UL 1666 (Riser),C(UL) FT4
• Product Type: Fire Alarm Cables
• Type: Solid
• Color: Red
• Length: 500Ft.
• Manufacturer: Genesis Cable
• American Wire Gauge: 18AWG
• Armored: No
• Conductor Count: 4
• Jacket Type: Riser
• Insulation Material: PP

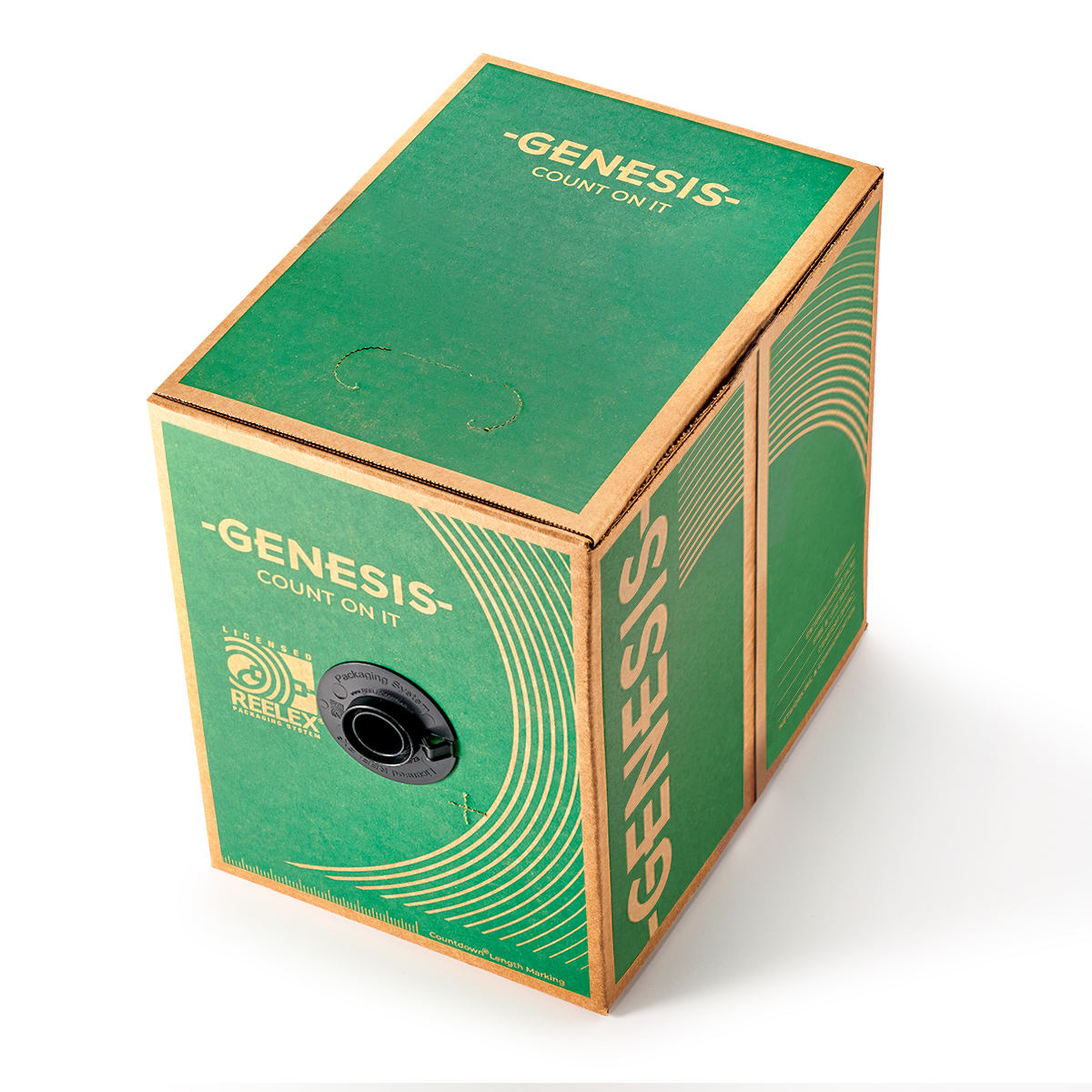

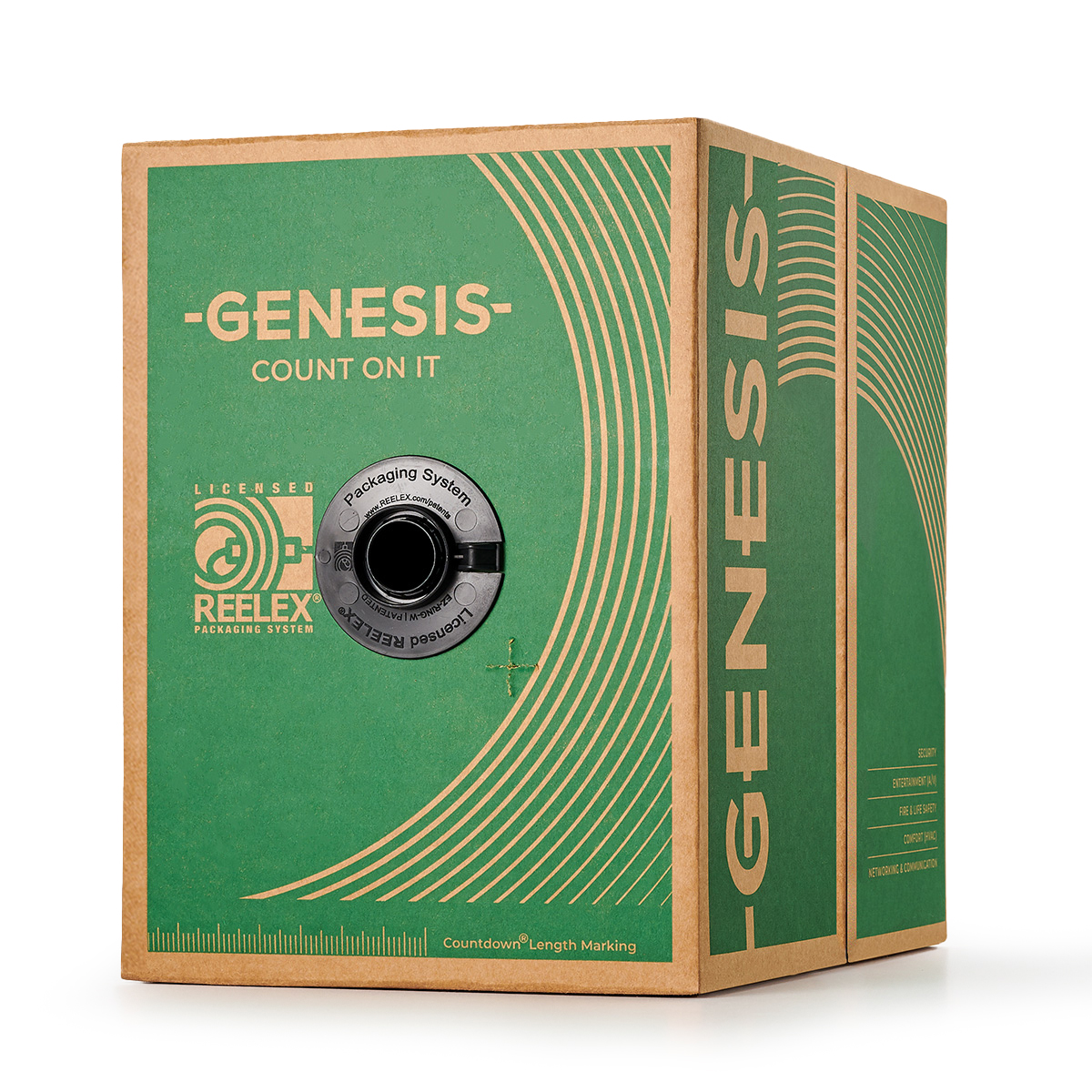

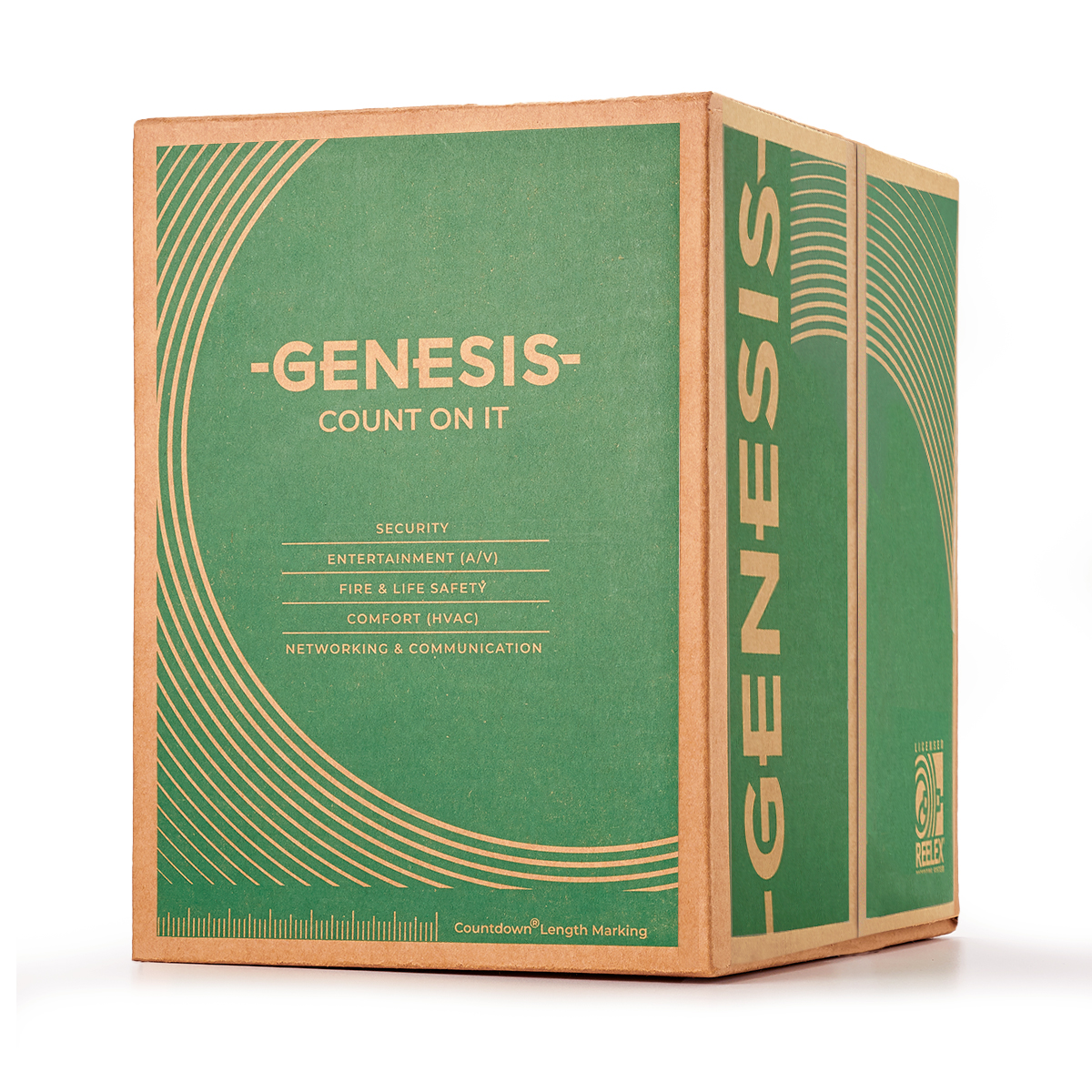

• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
