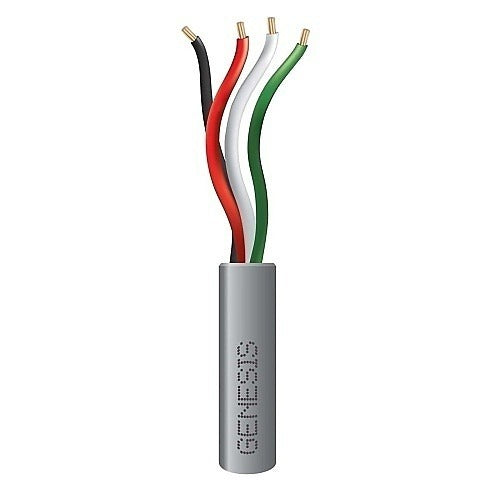

Genesis Cable 41325509 22/4 Stranded Riser Cable 500 Ft

Product Description

The GENESIS CABLE 41325509 is a 22 AWG, 4-conductor stranded riser-rated security cable supplied in a 500-foot box. This unshielded cable is designed for low-voltage security and alarm wiring in riser applications, running vertically between floors in commercial and residential buildings. The stranded conductor construction allows flexibility during pull-through installations, and the gray jacket provides a neutral finish suitable for surface or concealed routing. Licensed security and alarm installers rely on this type of cable for connecting control panels, sensors, keypads, and related devices in structured low-voltage systems.

This cable is suited for riser installations in both commercial and residential buildings where a CMR-rated (riser) cable run is required by code. Common applications include intrusion detection systems, access control wiring, and fire alarm auxiliary circuits where an unshielded 4-conductor run meets the design specification. The 500-foot box quantity supports larger single-run jobs or multiple shorter runs on the same project.

Key Features

• 22 AWG stranded conductors for flexibility during installation pulls
• 4-conductor configuration supports typical security and alarm device wiring
• Riser-rated jacket meets CMR vertical flame spread requirements
• Unshielded design appropriate for low-interference environments
• Gray jacket color for neutral, professional-looking installations
• 500-foot box quantity reduces mid-run splices on longer pulls

Compatibility

Designed as a standard riser-rated low-voltage security cable for use with intrusion detection panels, access control systems, keypads, and sensors that specify 22 AWG 4-conductor unshielded wiring.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm contractor in accordance with NFPA 72 and applicable local codes. De-energize all connected control panels and devices before terminating conductors. Riser-rated cable must be used in vertical shaft and floor-to-floor runs per NEC Article 800 and 760 requirements. Do not use this cable in plenum spaces where CMP-rated cable is required by code.
