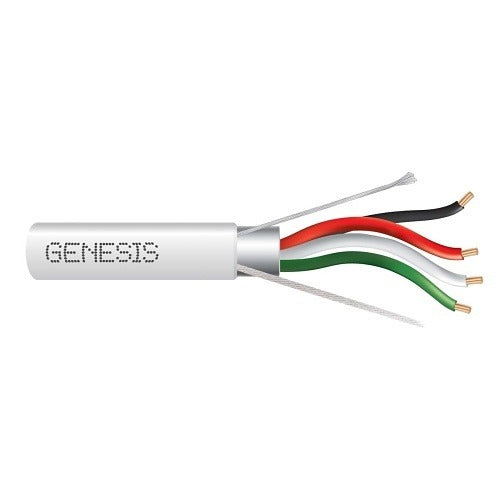

Genesis Cable 32241012 14/4 Stranded Shielded Plenum Cable

Product Description

The GENESIS CABLE 32241012 is a 14 AWG, 4-conductor stranded shielded security cable rated for plenum (CL2P) installations. It ships in a 1,000-foot roll and is engineered for low-voltage signal distribution in security, access control, and alarm system applications. The stranded conductors provide flexibility during pull-through installations, while the overall shield helps reduce electromagnetic interference (EMI) in sensitive signal runs. The CL2P plenum rating meets the code requirements for installation in air-handling spaces without conduit in most jurisdictions.

This cable is suited for commercial and residential security system installations where the cable pathway passes through plenum air-handling spaces above drop ceilings or within HVAC supply and return plenums. Typical applications include wiring for intrusion detection panels, access control readers, door contacts, motion detectors, and similar low-voltage devices that require a multi-conductor shielded run. The 1,000-foot roll quantity is appropriate for larger commercial projects or stocking by security installation contractors.

Key Features

• 14 AWG stranded conductors for flexibility during installation and reduced resistance over longer runs
• 4-conductor configuration supports multi-wire device connections in a single cable run
• Overall shield reduces EMI and signal noise on sensitive security and alarm circuits
• CL2P plenum rating allows installation in air-handling spaces per NEC Article 800 and related provisions
• 1,000-foot roll reduces splicing and supports large commercial pull lengths

Compatibility

Designed as an OEM-style plenum security cable for use with low-voltage security, access control, and alarm systems requiring 14 AWG 4-conductor shielded wiring in plenum-rated pathways.

Installation Notes

Installation should be performed by a licensed low-voltage or electrical contractor familiar with NEC plenum wiring requirements. De-energize all panels and control equipment before terminating conductors. Verify that the plenum space is confirmed as an air-handling ceiling or floor cavity before pulling CL2P-rated cable without conduit. Maintain minimum bend radius during the pull to avoid damaging the shield or conductor insulation.
