Genesis Cable 32215512 Multiconductor Shielded Cable, Plenum 16 AWG

Product Description

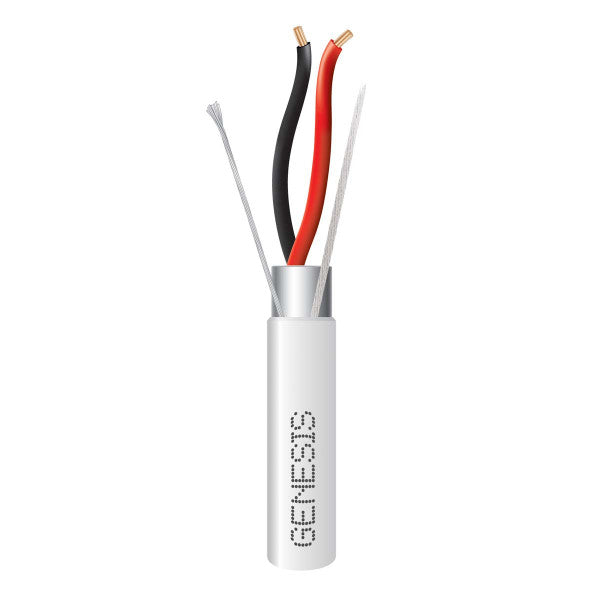

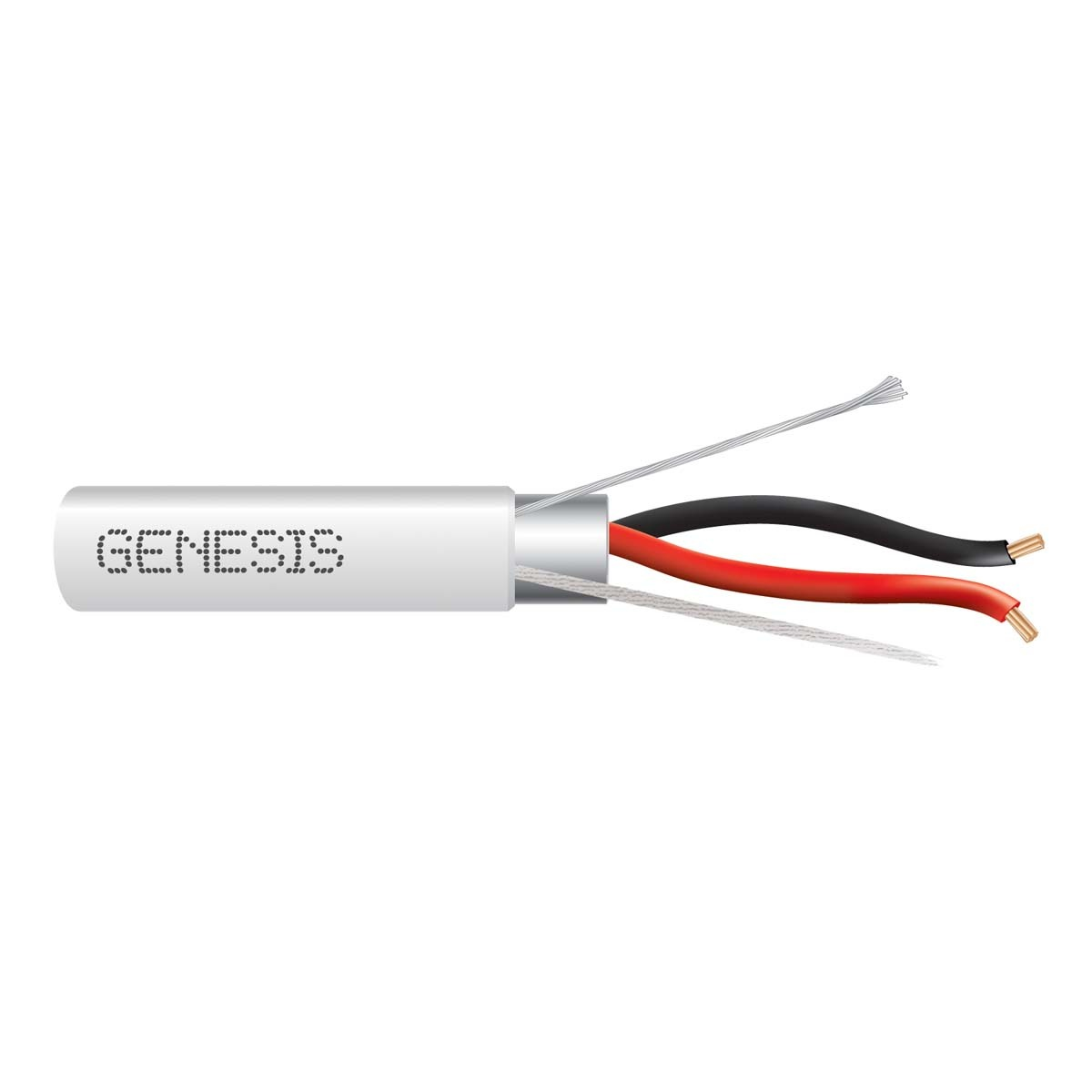

The Genesis Cable 32215512 is a plenum-rated shielded multiconductor cable suitable for installation in fabricated ducts, environmental air spaces, risers, and within buildings. It features bare copper conductors for conductivity and low voltage drop, and a foil shield over all conductors. Rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Foil shield over all conductors.

Product Highlights

This shielded multiconductor cable ensures a dependable connection for security, controls, audio, and other low-voltage applications in plenum spaces.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 32215512

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 2
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 26
• Product Type: 16/2 Wire
• Cable Type: CMP/FT6
• Conductor Gauge: 16 AWG
• Number of Conductors: 2
• Conductor Material: Bare Copper
• Insulation: Low-Smoke PVC
• Jacket: Plenum PVC
• Voltage Rating: 300 Volts
• Temperature Rating: -20 °C to 75 °C
• Overall Shielding: Overall foil shield with drain wire
• Jacket Material: CMP rated plenum grade PVC
• Application: Security systems, access control circuits, intercom wiring, audio runs, general structured cabling
• AWG Size: 16
