Genesis Cable 32165512 multiconductor shielded cable, plenum (500 feet)

Product Description

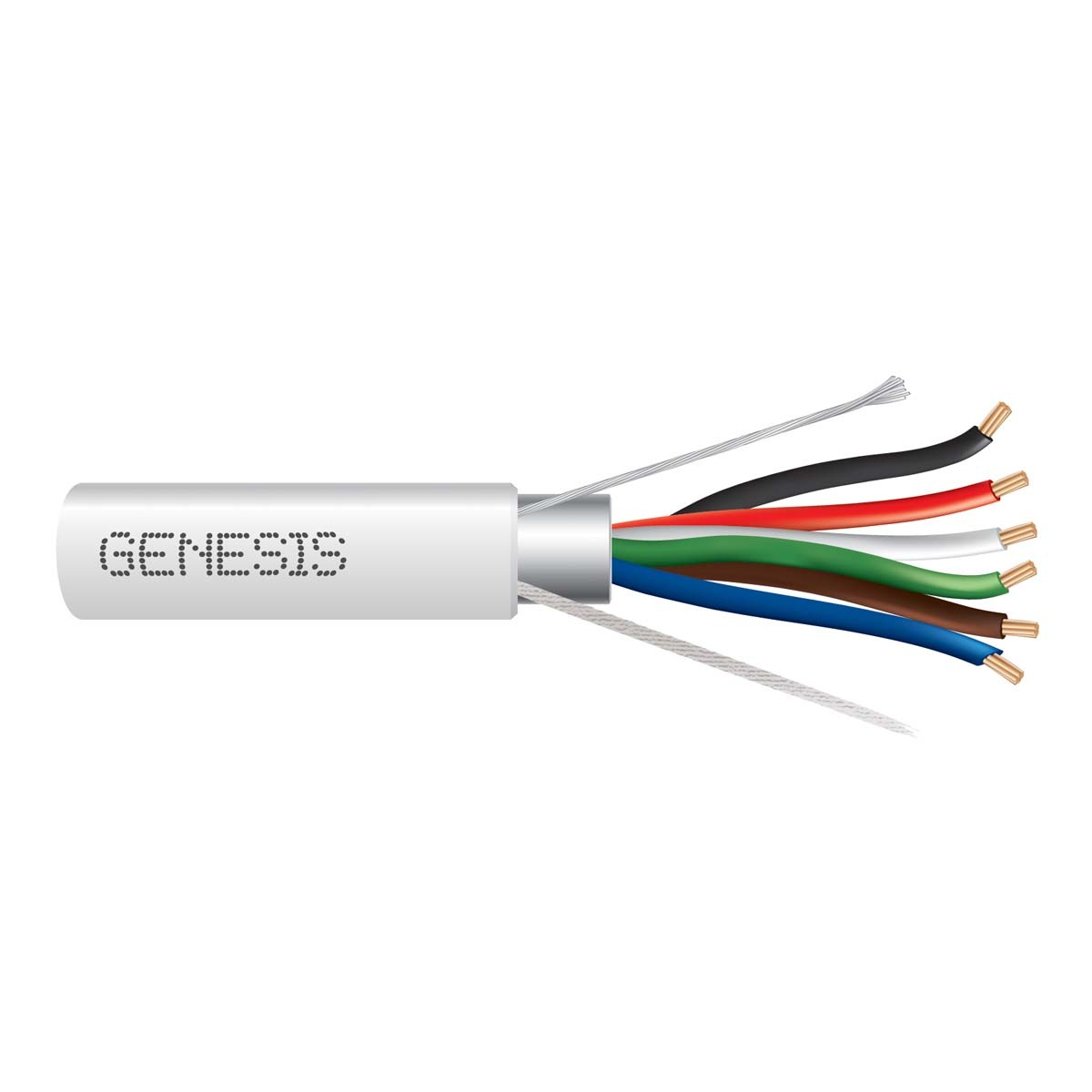

The Genesis Cable 32165512 is a plenum rated shielded multiconductor cable suitable for installation in fabricated ducts, environmental air spaces, and risers. Features bare copper conductors, low-smoke PVC insulation, and a foil shield over all conductors. Includes a durable rip cord and Countdown length markings for efficient use. Rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Foil shield over all conductors.

Product Highlights

This cable ensures stable signal transmission for access control, security, audio, and structured cabling with its shielded design and durable construction.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 32165512
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 6
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 44
• Country of Origin: United States
• Category: Multiple Conductor Cable
• Brand: Genesis Cable
• MFG #: 32165512
• SES #: HCA 32165512
• UPC: 619172022613
• Jacket Rating: CMP (Plenum)
• Length: 500'
• Conductor Material: Bare Copper
• Voltage Rating: 300V
• Temperature Range: 20 C to 75 C
• Cable Length: 500 ft
• Material: Polyvinyl Chloride (PVC) - Jacket
• Product Type: Control Cable
