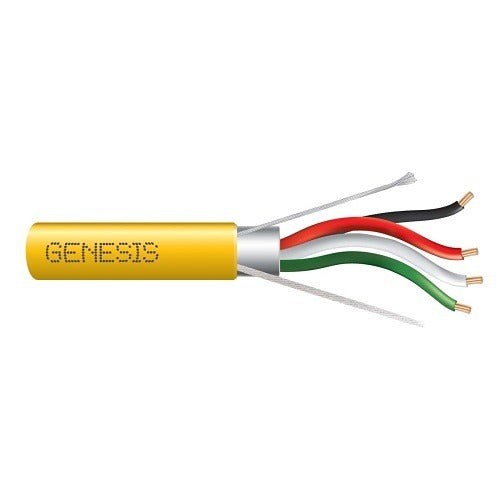

Genesis Cable 32152102 18/4 Stranded Shielded Security Cable

Product Description

The GENESIS CABLE 32152102 is an 18 AWG, 4-conductor stranded shielded security cable supplied on a 1000-foot reel box. Designed for low-voltage security and alarm system wiring, this cable features an overall aluminum shield and plenum-rated or foil construction suited for demanding installation environments. The stranded conductor configuration provides flexibility during routing through conduit, walls, and ceilings. Licensed security installers and low-voltage technicians specify this cable for professional-grade alarm, access control, and surveillance system wiring runs.

This cable is suited for commercial and residential security system installations where a shielded, multi-conductor cable is required. The 4-conductor layout supports typical alarm panel, motion detector, door contact, and keypad wiring configurations. The 1000-foot reel box format is standard for contractors running multiple home runs or longer commercial cable runs from a central distribution point.

Key Features

• 18 AWG stranded conductors for flexibility during installation
• 4-conductor configuration supports multi-wire security device connections
• Overall aluminum foil shield reduces electromagnetic interference on signal runs
• 1000-foot reel box format minimizes waste and supports large commercial pulls
• Category designation consistent with plenum-rated or FT6-rated jacket requirements

Compatibility

Designed as a standard 18 AWG 4-conductor shielded cable for low-voltage security, alarm, and access control system wiring applications.

Installation Notes

Installation should be performed by a licensed low-voltage or security system technician in accordance with applicable NEC low-voltage wiring requirements. De-energize all panels and control equipment before terminating conductors. Maintain minimum bend radius when routing through conduit or framing to preserve shield integrity. Verify local code requirements for plenum or riser-rated cable before installation in air-handling spaces.
