Genesis Cable 32145512 Multiconductor Shielded Cable Plenum 500 ft

Product Description

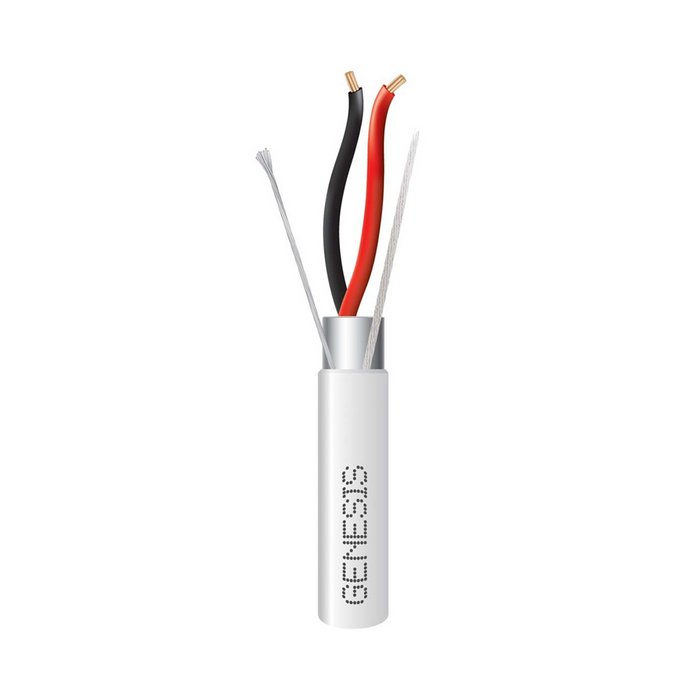

The Genesis Cable 32145512 is a plenum-rated shielded multiconductor cable suitable for installation in fabricated ducts, environmental air spaces, risers, and within buildings. It features bare copper conductors for excellent conductivity and low voltage drop. This cable is designed for general purpose and security systems.

• Features bare copper conductors for excellent conductivity.
• Equipped with a foil shield over all conductors.
• Rated for 300 Volts and temperatures from -20 to 75 deg C.

Product Highlights

This 18 AWG cable has a plenum PVC jacket, stranded conductors, and is marked with Countdown length markings for easy tracking.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 32145512
• Country of Origin: US

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 2
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 19
• Conductor Size: 18 AWG
• Conductor Type: Stranded
• Country of Origin: US
• Insulation Material: Plenum PVC
• Jacket Color: Natural
• Jacket Material: Plenum PVC
• Length: 500 ft
• Manufacturer Name: Southwire Company
• Number of Conductors: 2
• Outside Diameter: 0.156 in

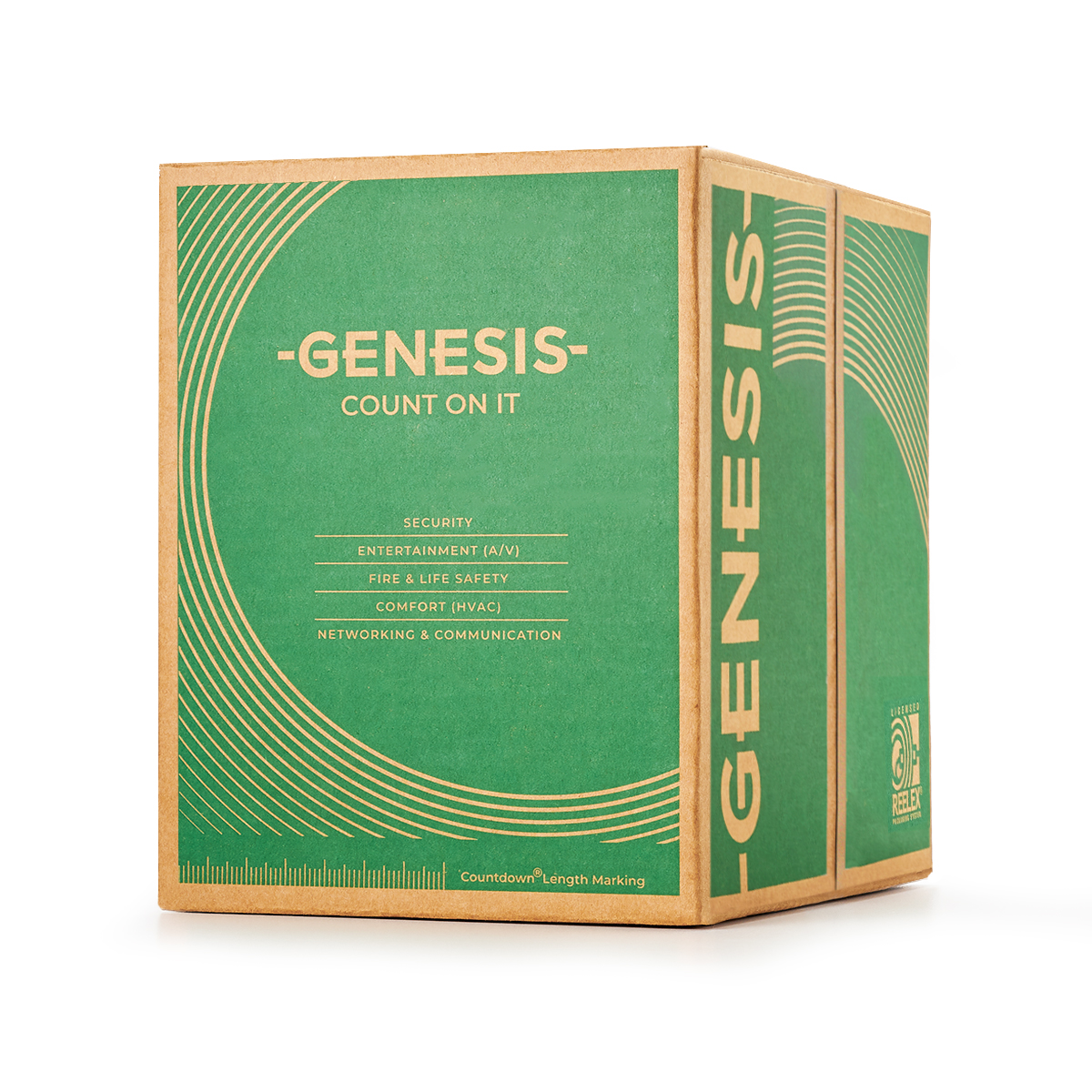

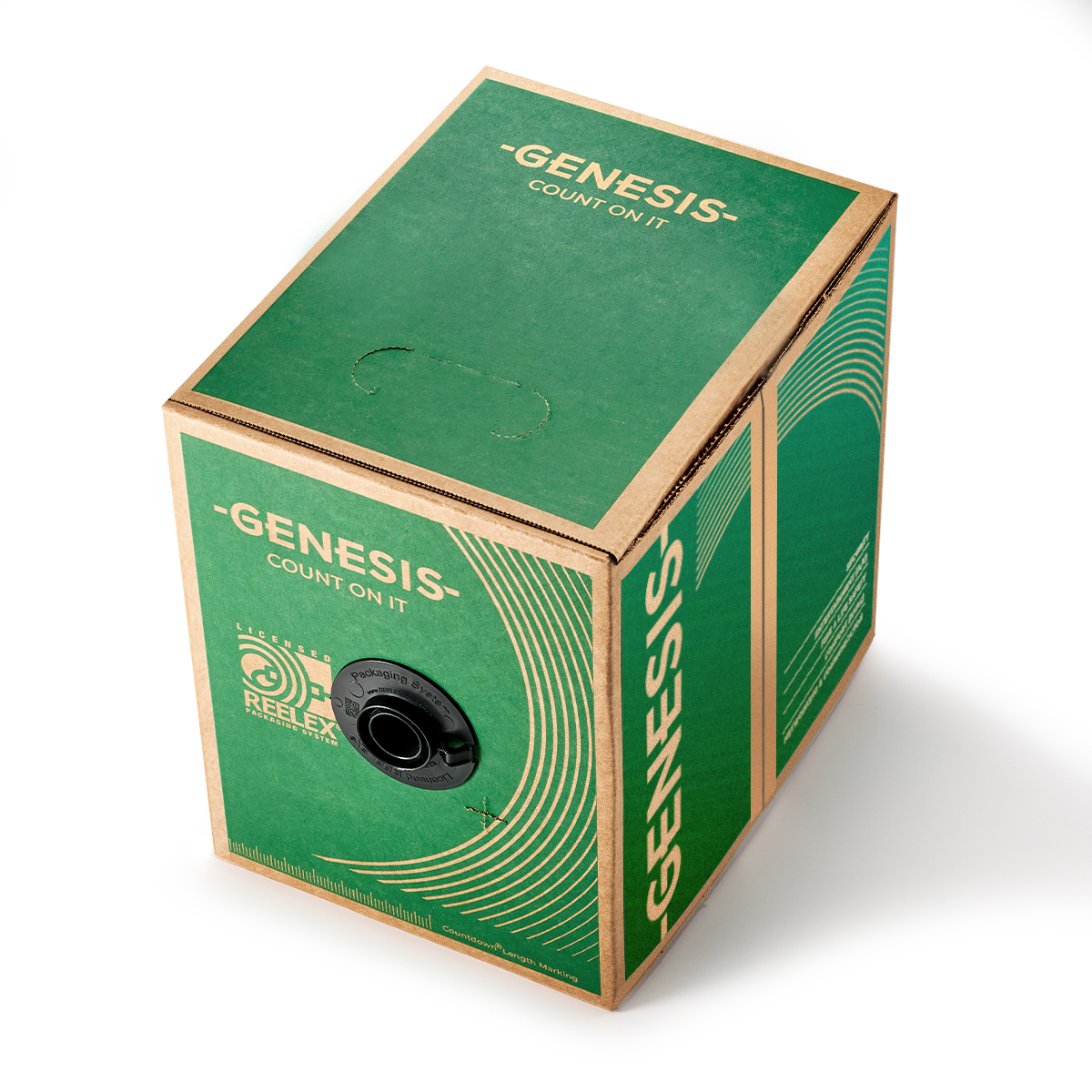

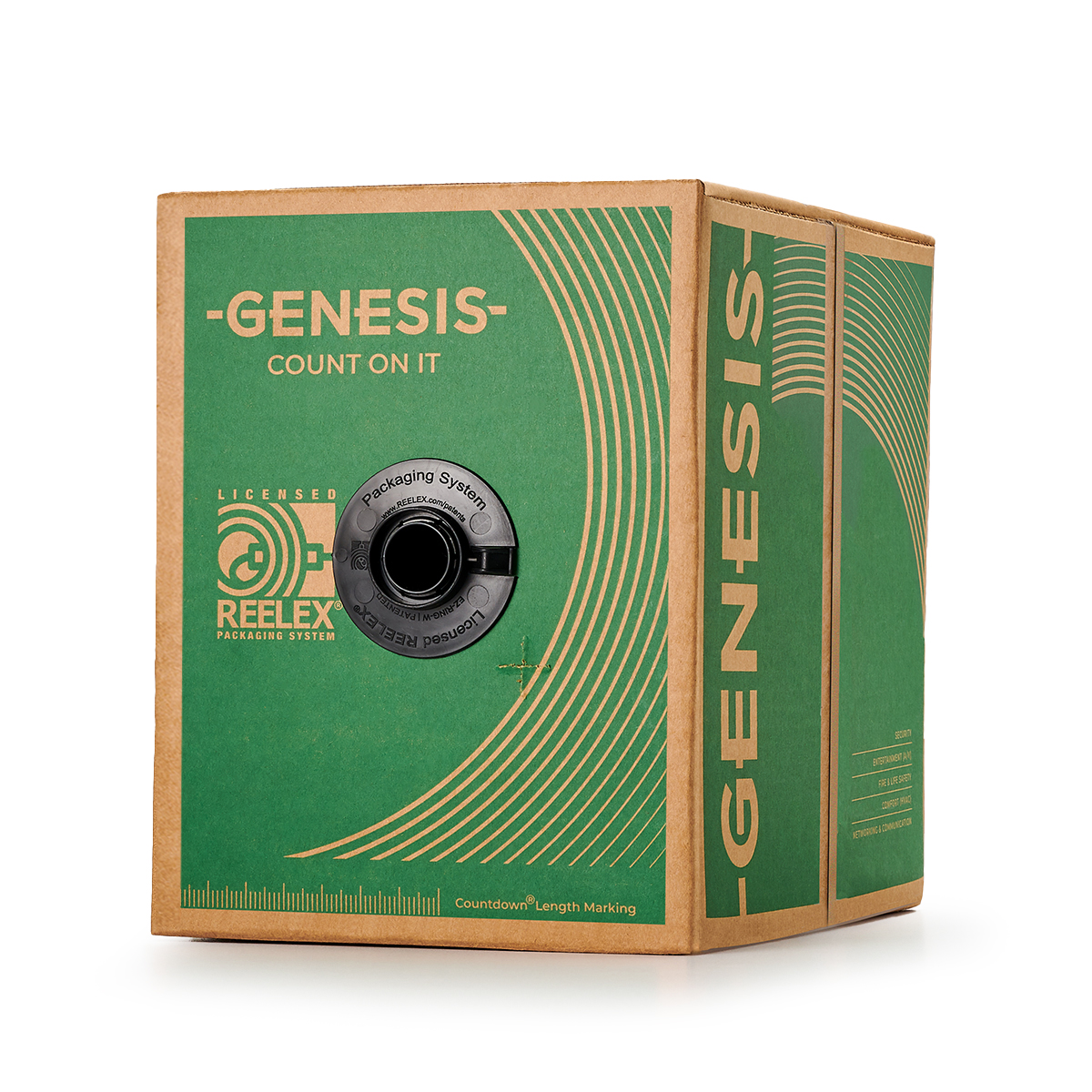

• Packaging Type: Pull Box
• Resistance: 6.66 Ohm/1000 ft at 20 deg C
• Series: 3214
• Strands: 19
• Temperature Rating: -20 to 75 deg C
• Type: Multipurpose
• Voltage Rating: 300 V
• American wire gauge: 18
• Conductor material: Copper
• Cable length: 500'
• Cable jacket material: Polyvinyl Chloride (PVC)
