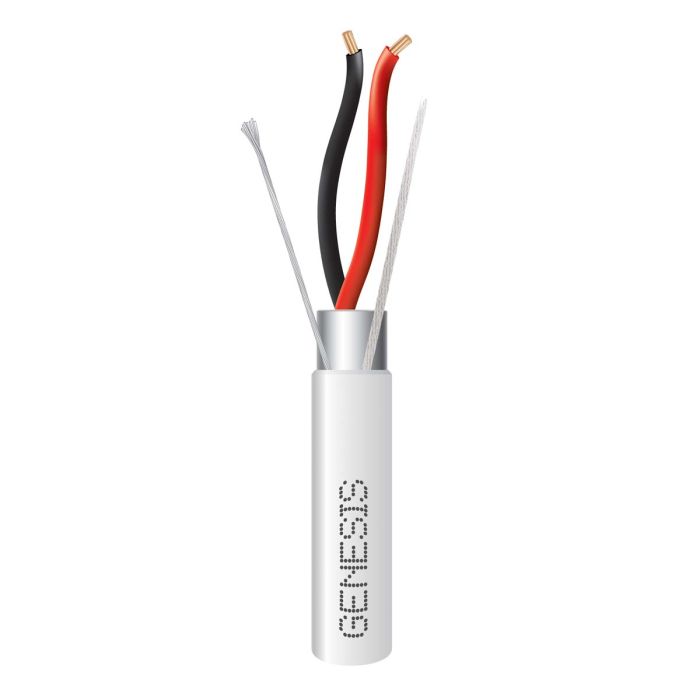

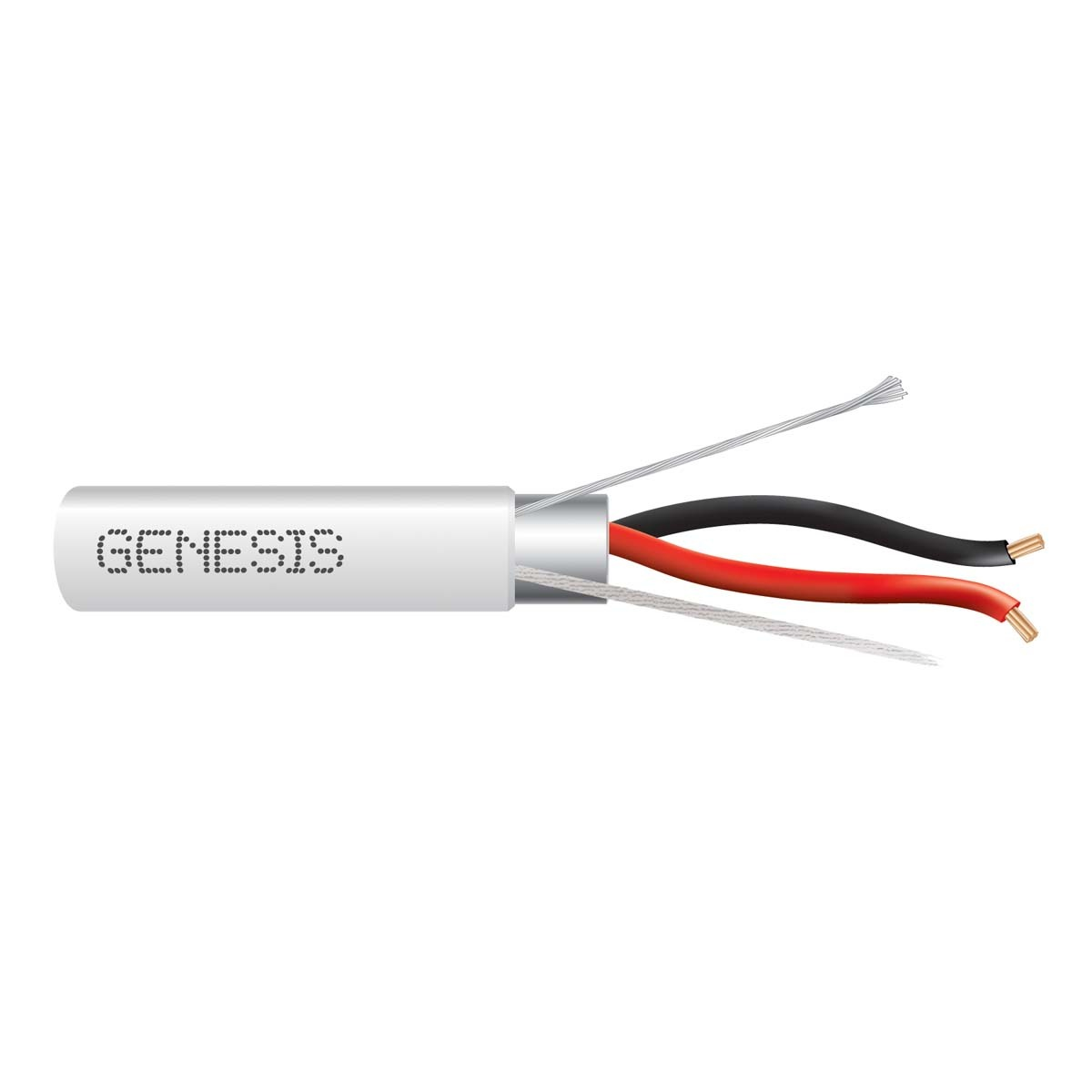

Genesis Cable 32141112 multiconductor shielded cable, plenum

Product Description

The Genesis Cable 32141112 is a plenum-rated shielded multiconductor cable suitable for installation in fabricated ducts, environmental air spaces, and risers. Features bare copper conductors, low-smoke PVC insulation, and a foil shield over all conductors. It also has a plenum PVC jacket and a durable rip cord for jacket stripping. Rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Foil shield over all conductors.

Product Highlights

Plenum rated shielded multiconductor cable with bare copper conductors, low-smoke PVC insulation and foil shielding.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 32141112
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 2
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 19
• ADI Part Number: WG-32141112
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 32141112
• Packaged Quantity: 1
• Product Model: 32141112
• Product Name: 32141112 Control Cable
• Product Type: Control Cable
• American Wire Gauge: 18AWG
• Armored: No
• Cable Rating: Plenum
• Conductor Material: Bare Copper
• Jacket Material: LS-PVC
• Jacket Type: FT6, Plenum
• Number of Conductors: 2
• Number of Pairs: 1
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 1000'
• Insulation Material: LS-PVC

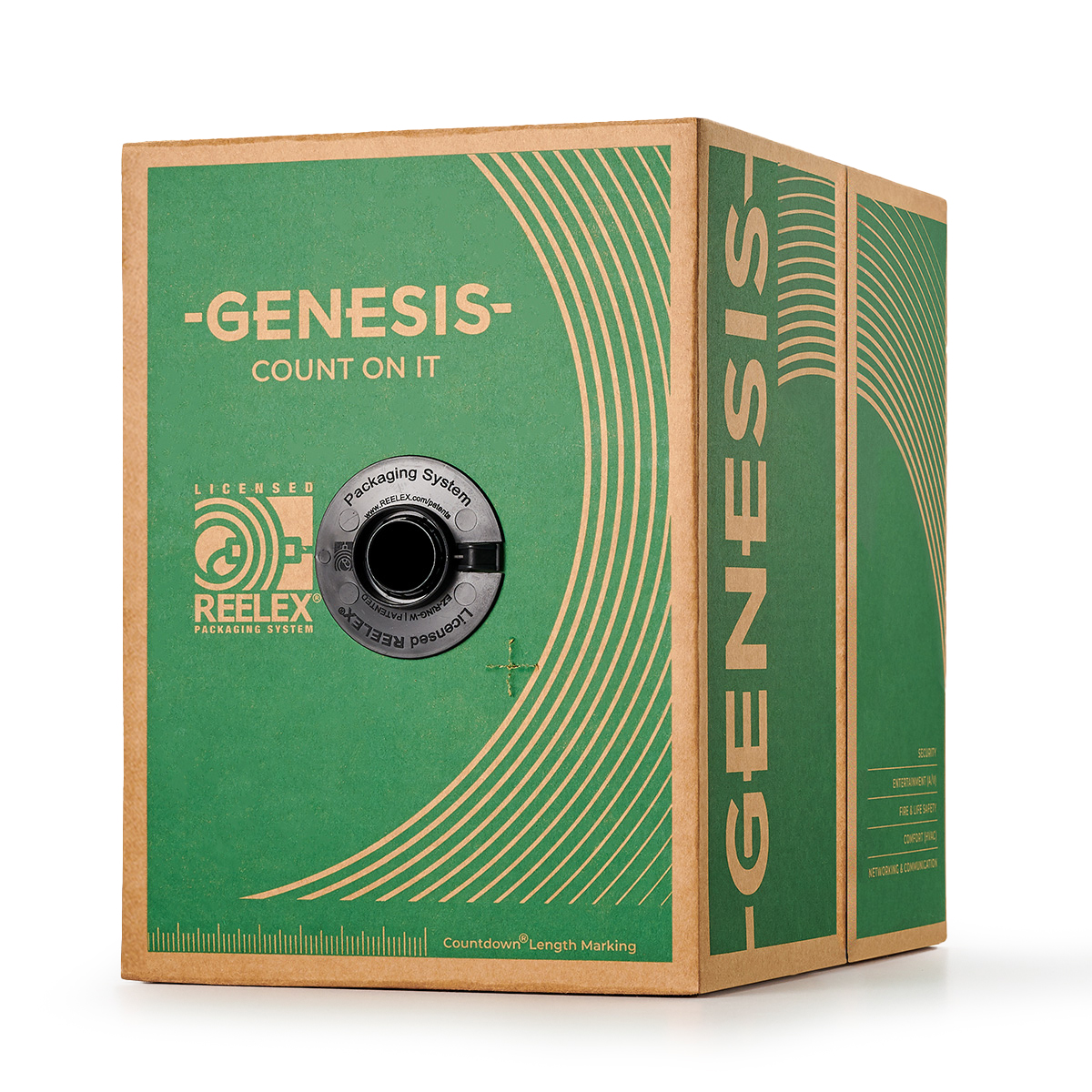

• Package Type: REELEX Pull Box
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Gauge: 18.0
• Material: Copper
• Number of Cable Strands: Multi Strand
• No. of wires: 36
• Device Supported: Burglar Alarm, Intercom, Phone, Speaker
• Connector on Second End: Bare Wire
• Connector on First End: Bare Wire
