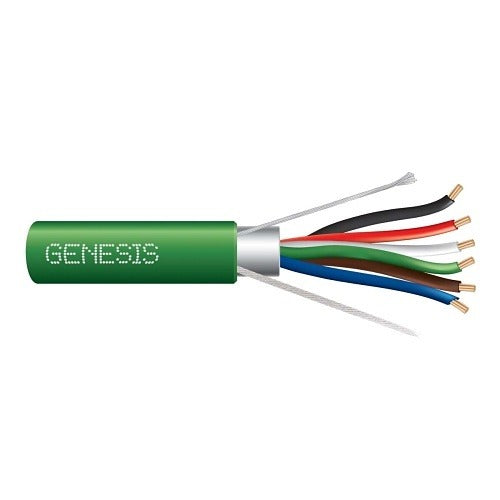

Genesis Cable 32062105 22AWG 6C Shielded Security Cable 1000ft

Product Description

The GENESIS CABLE 32062105 is a 22 AWG 6-conductor stranded shielded security cable rated for low-voltage alarm and access control applications. The stranded construction improves flexibility during pulls through conduit or finished walls, and the overall foil shield provides protection against electromagnetic interference. The green jacket color aids identification in multi-cable installations. This cable is sold by the 1000-foot reel and is a common choice for security system installers and low-voltage technicians running detector loops, panel home-runs, and device feeds.

This cable is suited to residential and light commercial security installations where a shielded, multi-conductor run is required between control panels and field devices such as motion detectors, door contacts, keypads, and glass-break sensors. The FT6 plenum-equivalent or riser rating indicated in the part data makes it appropriate for installations where code requires flame-rated cable in vertical or plenum spaces. Always verify local AHJ requirements before selecting cable for a specific installation zone.

Key Features

• 22 AWG stranded conductors for improved flexibility and pull performance
• 6-conductor configuration supports multi-wire device connections in a single cable run
• Overall shield reduces EMI and RFI interference on low-voltage signal circuits
• FT6 flame rating suitable for riser and applicable code-required pathways
• Green jacket for easy visual identification in multi-cable installations
• 1000-foot reel quantity minimizes mid-run splices on long pulls

Compatibility

Designed as an OEM-style stranded shielded low-voltage security cable for use with standard residential and commercial alarm panel systems requiring 22 AWG 6-conductor wiring.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm systems technician in accordance with NFPA 72, NEC Article 725, and any applicable local codes. De-energize the control panel and all connected devices before terminating conductors. Maintain the shield continuity and ensure the drain wire is grounded at one end only to avoid ground loops. Avoid running low-voltage signal cable parallel to or bundled with line-voltage wiring.
