Genesis Cable 32061112 Multiconductor Shielded Cable, Plenum 22 AWG

Product Description

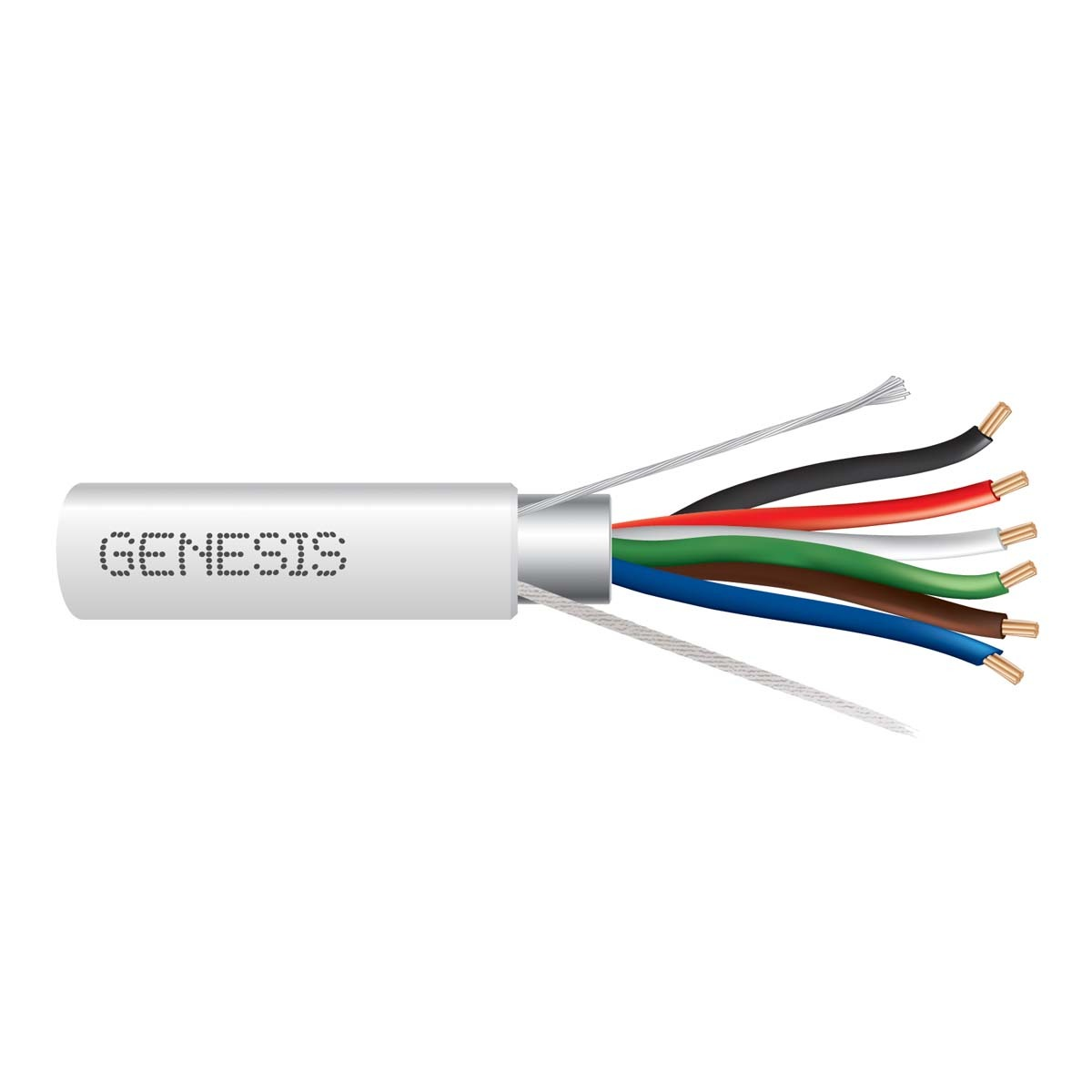

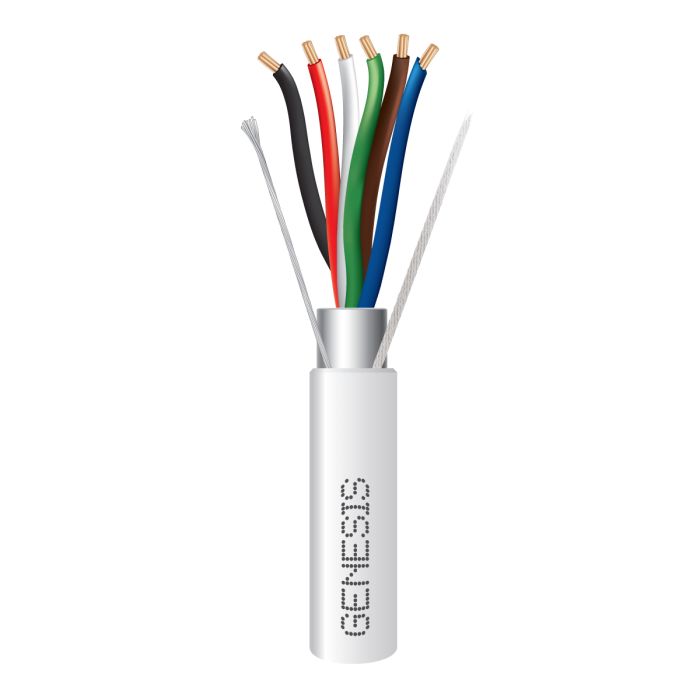

The Genesis Cable 32061112 is a plenum-rated shielded multiconductor cable suitable for installation in fabricated ducts, environmental air spaces, and risers. The shielded cables minimize electrical noise and interference to protect sensitive signals. It is constructed with bare copper conductors and a plenum PVC jacket.

• Features bare copper conductors for excellent conductivity and low voltage drop
• Foil shield over all conductors
• Durable rip cord for efficient jacket stripping and removal

Product Highlights

This 22 AWG cable is REACH/RoHS compliant and features countdown length markings for easy tracking of usage. It is rated for 300 Volts and for temperatures between -20 °C to 75 °C.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 32061112
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 22 AWG
• No. of Conductors: 6
• Stranding: Stranded
• Shielding: Shielded
• ADI Part Number: WG-32061112
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 32061112
• Packaged Quantity: 1
• Product Model: 32061112
• Product Name: 32061112 Control Cable
• Product Type: Security & Control Cables
• American Wire Gauge: 22AWG
• Armored: No
• Cable Rating: Plenum
• Conductor Count: 3
• Conductor Material: 6 Conductor Copper
• Jacket Material: LS-PVC
• Jacket Type: Plenum
• Number of Conductors: 6
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 1000'
• Insulation Material: LS-PVC

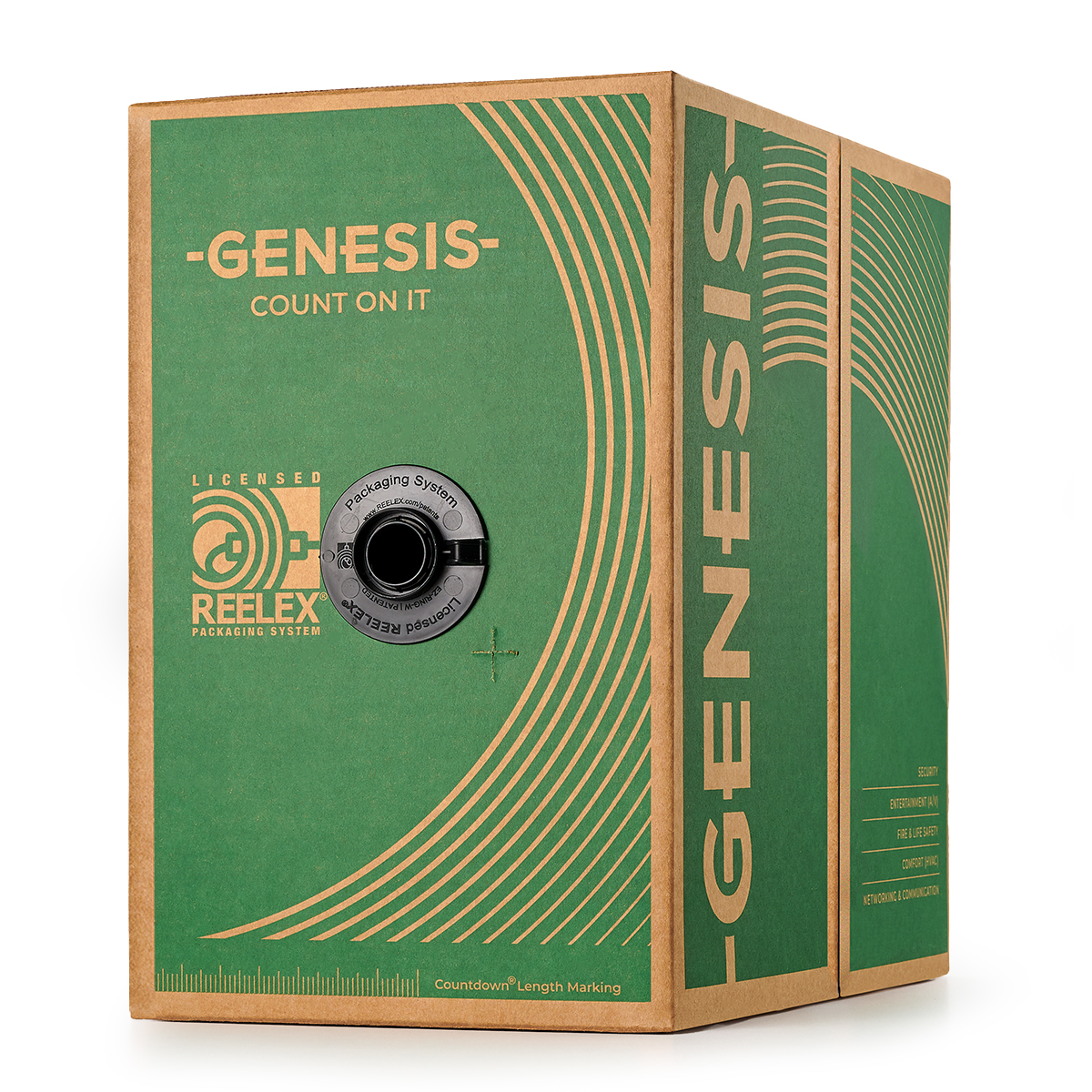

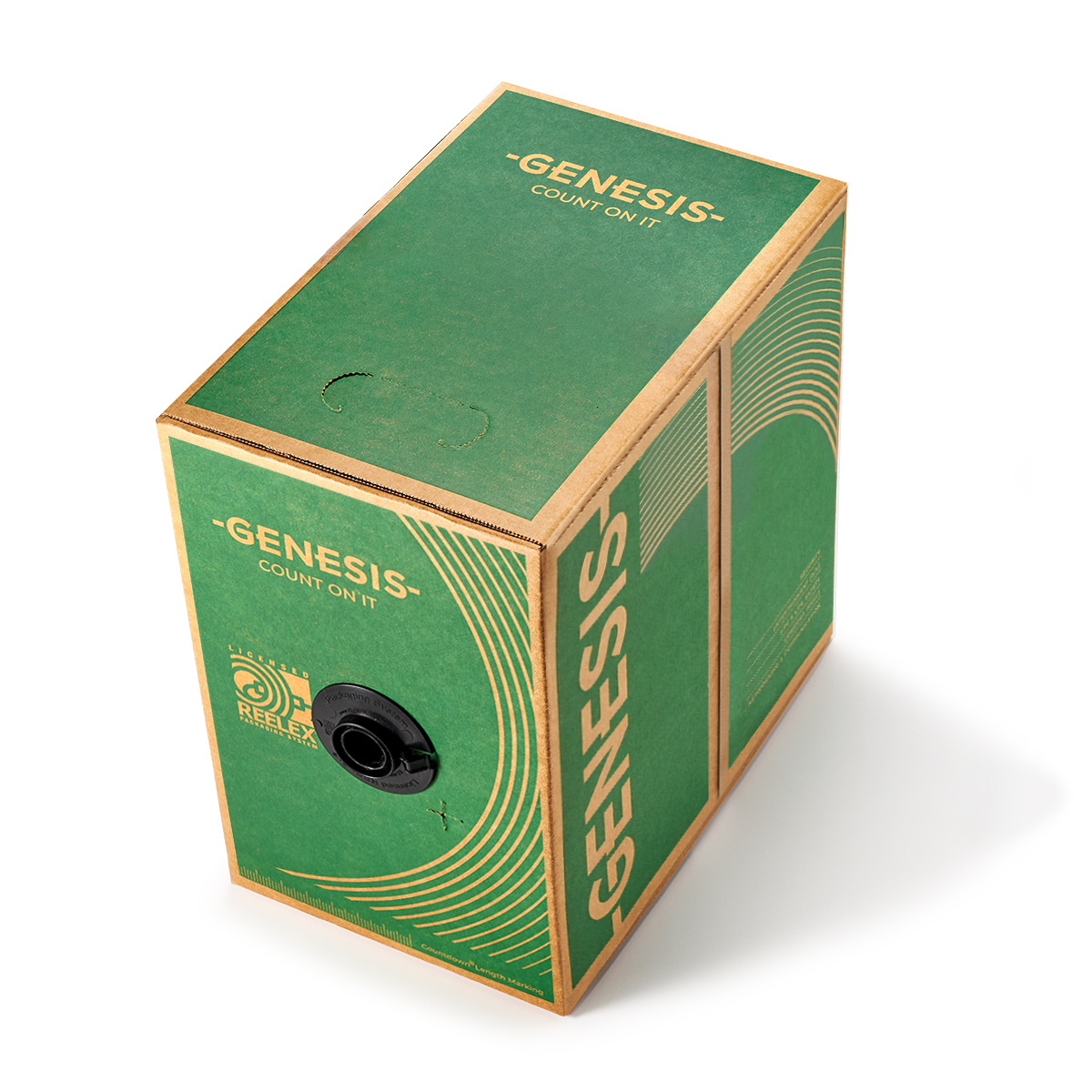

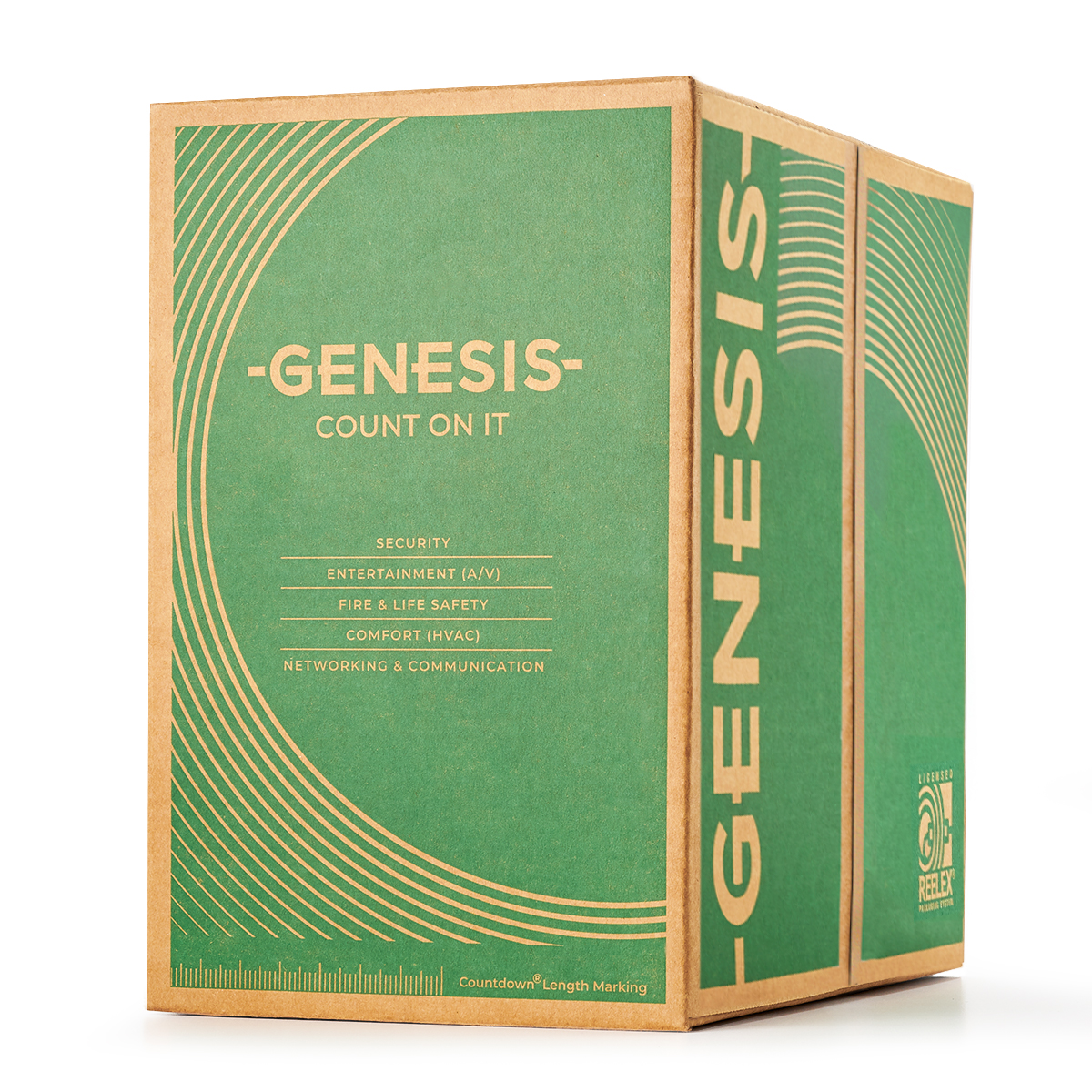

• Package Type: REELEX Pull Box
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Sheath Color: Natural
• Type: Alarm
• Wire Gauge: 22
