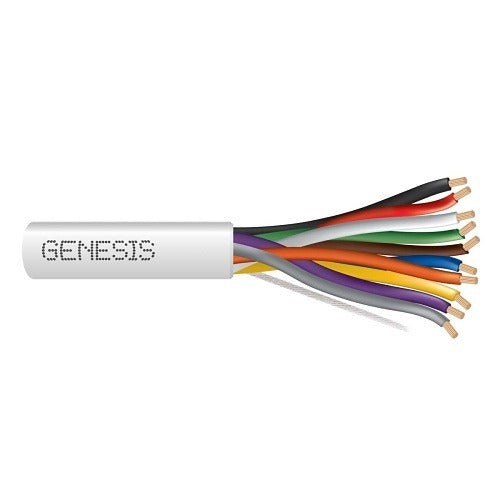

Genesis Cable 31181012 18/10 Stranded CL2P Security Cable

Product Description

The GENESIS CABLE 31181012 is an 18 AWG, 10-conductor stranded security cable rated CL2P for plenum-rated installations. It is designed for low-voltage security and alarm system wiring in commercial and residential applications where the cable must pass through air-handling spaces. The CL2P rating meets the National Electrical Code requirements for plenum environments, making it suitable for above-ceiling and HVAC plenum installations. This cable comes on a 1000-foot reel, providing enough continuous run length for large projects. Licensed security and low-voltage electricians are the primary installers of this product.

This cable is used in structured wiring for security systems, access control, intrusion detection, and similar low-voltage applications. The 10-conductor configuration supports multi-zone panels and complex security layouts without requiring multiple cable runs. The stranded construction provides flexibility during pull-through and routing in tight conduit or cable trays. It is well suited for both new construction and retrofit jobs where plenum-rated wiring is required by code in air-handling spaces.

Key Features

• 18 AWG stranded conductors for flexibility and ease of routing
• 10-conductor configuration supports multi-zone security and alarm layouts
• CL2P plenum rating meets NEC requirements for air-handling space installations
• 1000-foot reel reduces splices and supports long continuous runs
• Unshielded construction suitable for standard low-voltage security wiring
• Natural jacket color for general-purpose identification

Compatibility

Designed as a CL2P-rated, 18 AWG 10-conductor stranded cable for use with low-voltage security panels, access control systems, and alarm system wiring that require plenum-rated cable per NEC Article 800 and Article 725 guidelines.

Installation Notes

Installation should be performed by a licensed low-voltage or electrical contractor familiar with NEC Article 725 Class 2 wiring requirements. Confirm that all junction boxes, terminal connections, and pathway systems are rated for CL2P plenum cable before pulling. De-energize the security panel and any connected equipment before terminating conductors. Avoid sharp bends or kinking during the pull to preserve the integrity of the stranded conductors and outer jacket.
