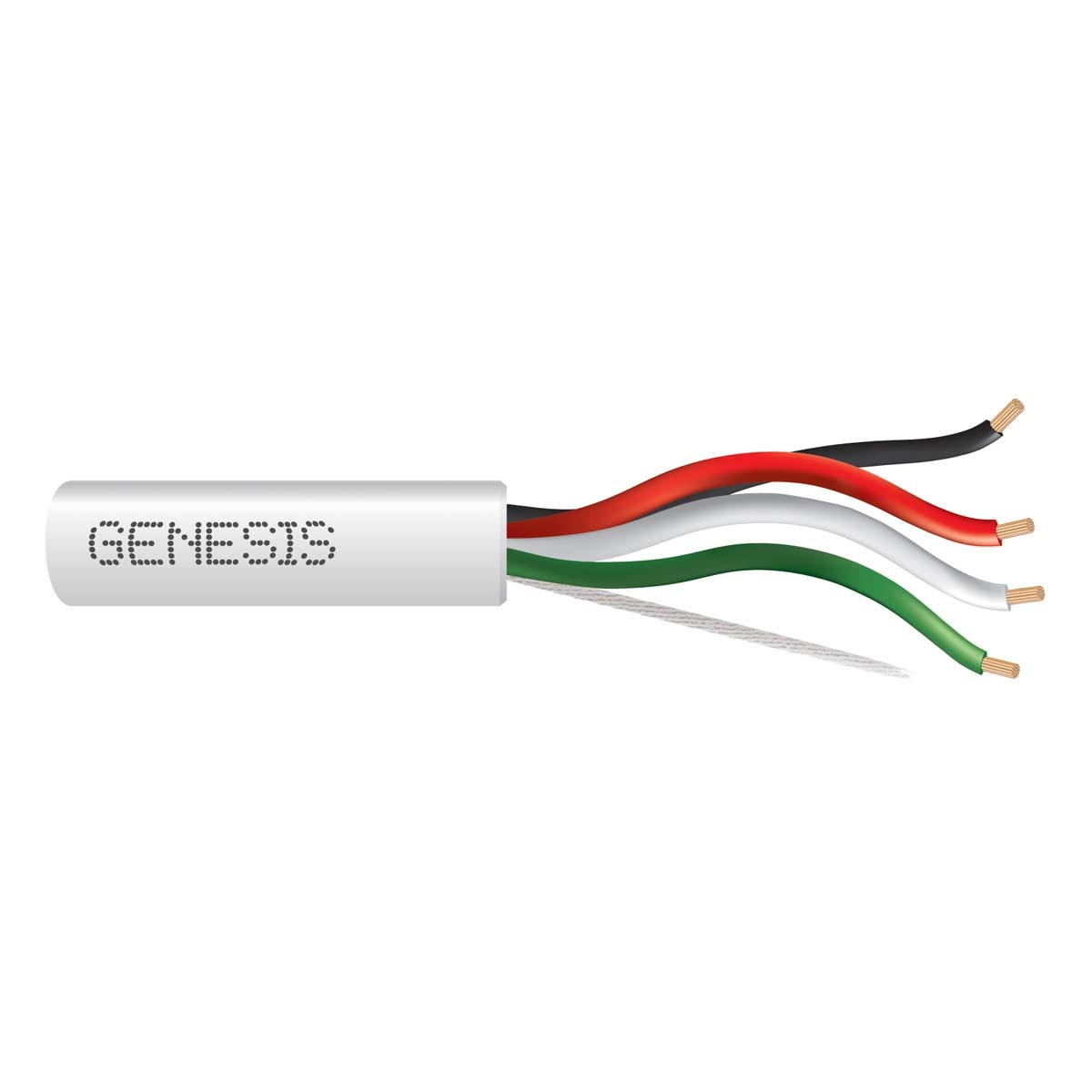

Genesis Cable 31165512 Multiconductor Unshielded Cable 500 FT

Product Description

The Genesis Cable 31165512 is a plenum-rated unshielded multiconductor cable suitable for installation in fabricated ducts, environmental air spaces, and risers, as described in NEC 300.22(B) and 300.22(C). It is also suitable for use within buildings in other than air-handling spaces and risers. This cable provides a dependable connection for security, controls, audio, and other low-voltage applications.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Low-Smoke PVC insulation.
• Plenum PVC jacket.

Product Highlights

Features 18 AWG stranded copper conductors, a durable rip cord, and Countdown length markings. Rated for 300 Volts and -20 °C to 75 °C.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 31165512

Technical Specifications

• Size (AWG or kcmil): 18 AWG
• No. of Conductors: 6
• Stranding: Stranded
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 41
• Nominal Total Weight (kgs/km): 62
