Genesis Cable 31152103 18/4 Stranded Security Cable 1000 Ft

Product Description

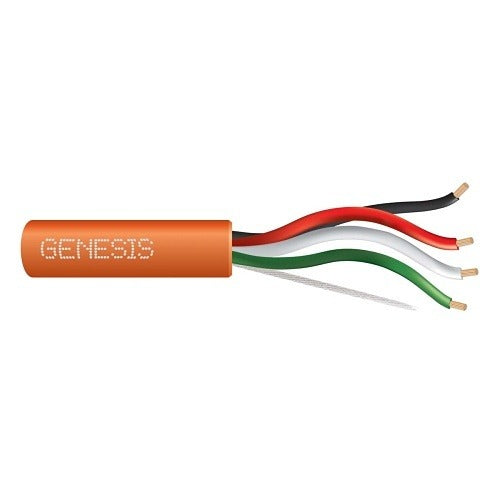

The GENESIS CABLE 31152103 is an 18 AWG 4-conductor stranded unshielded security cable supplied on a 1000-foot reel box in orange. This cable is designed for low-voltage signal and control wiring in security and alarm system installations. The stranded conductor construction improves flexibility during pull and termination compared to solid wire, making it easier to route through conduit, raceways, and building cavities. The orange jacket provides visual identification in the field, which is useful when multiple cable types are run in the same pathway. Licensed alarm and security installers are the primary users of this product.

This cable is suited for residential and light commercial security system wiring, including intrusion detection panels, motion detectors, door and window contacts, glass-break sensors, and similar low-voltage devices. The 18 AWG conductor size and 4-conductor configuration make it a standard choice for runs from a central panel to individual zones or peripheral devices. The reel box format supports clean, tangle-free payouts on the job site.

Key Features

• 18 AWG stranded conductors for improved flexibility during installation
• 4-conductor configuration supports multi-wire security and alarm circuit runs
• Unshielded construction suited for standard low-voltage security applications
• Orange jacket aids visual identification in multi-cable installations
• 1000-foot reel box format allows tangle-free payout on the job site

Compatibility

Designed as a standard low-voltage stranded unshielded security cable for use with residential and commercial intrusion alarm panels and peripheral zone devices requiring 18 AWG 4-conductor wiring.

Installation Notes

Installation should be performed by a licensed alarm or low-voltage systems technician in accordance with applicable local codes and NFPA 72 requirements. De-energize the alarm panel and any connected power supplies before making terminations. Observe minimum bend radius for stranded cable during pulls to avoid conductor damage. Secure cables at regular intervals per code and keep low-voltage wiring separated from line-voltage conductors as required by the NEC.
