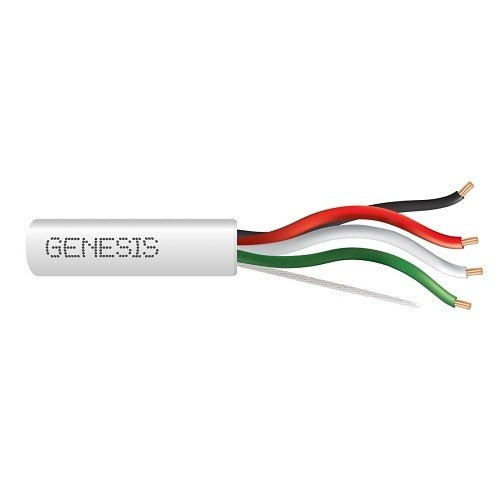

Genesis Cable 31041101 22/4 Stranded CL2P Security Cable White

Product Description

The GENESIS CABLE 31041101 is a 22 AWG 4-conductor stranded unshielded plenum-rated security cable packaged in a 1000-foot pull box. The CL2P rating qualifies this cable for installation in air-handling spaces and plenum ceilings where building codes require low-smoke, flame-retardant materials. Stranded construction provides flexibility during pulls through conduit, wall cavities, and ceiling spaces. The white jacket blends with standard commercial and residential interior finishes. Low-voltage security and alarm installers rely on this wire type for signal and control runs in access control, intrusion detection, and fire alarm auxiliary circuits.

This cable is suited for residential and light commercial security system installations where a plenum-rated, multi-conductor low-voltage wire is required. Typical applications include connecting door and window contacts, motion detectors, keypads, and other low-voltage devices back to a central control panel. The 1000-foot box format supports larger installations and reduces the need for mid-run splices, which improves signal integrity across longer cable runs.

Key Features

• CL2P plenum rating meets code requirements for air-handling and plenum ceiling spaces
• 22 AWG stranded conductors provide flexibility for routing through tight pathways
• 4-conductor configuration supports common security device wiring needs
• Unshielded design keeps installation straightforward in low-interference environments
• White PVC jacket suits standard interior finishes and aids circuit identification
• 1000-foot box format minimizes splices on larger jobs

Compatibility

Designed as a standard 22 AWG 4-conductor CL2P replacement or new-installation cable for residential and commercial low-voltage security, access control, and alarm systems.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm technician in accordance with applicable NEC Article 725 requirements for Class 2 plenum wiring. De-energize the control panel and any connected devices before terminating conductors. Avoid sharp bends that exceed the cable minimum bend radius, as stranded conductors can be damaged by tight kinking during a pull. Plenum-rated cable must be used in any air-handling space per local building and fire codes.
