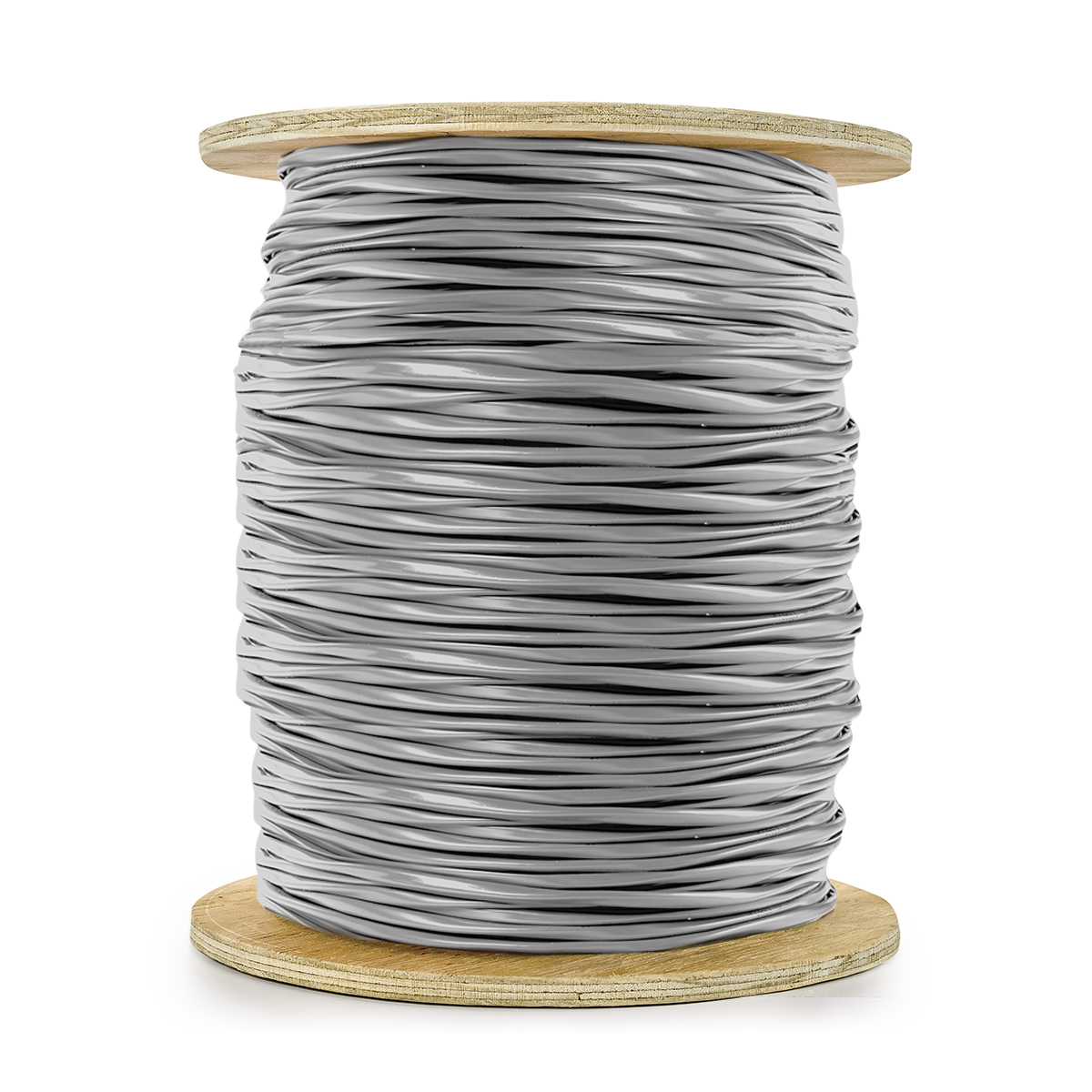

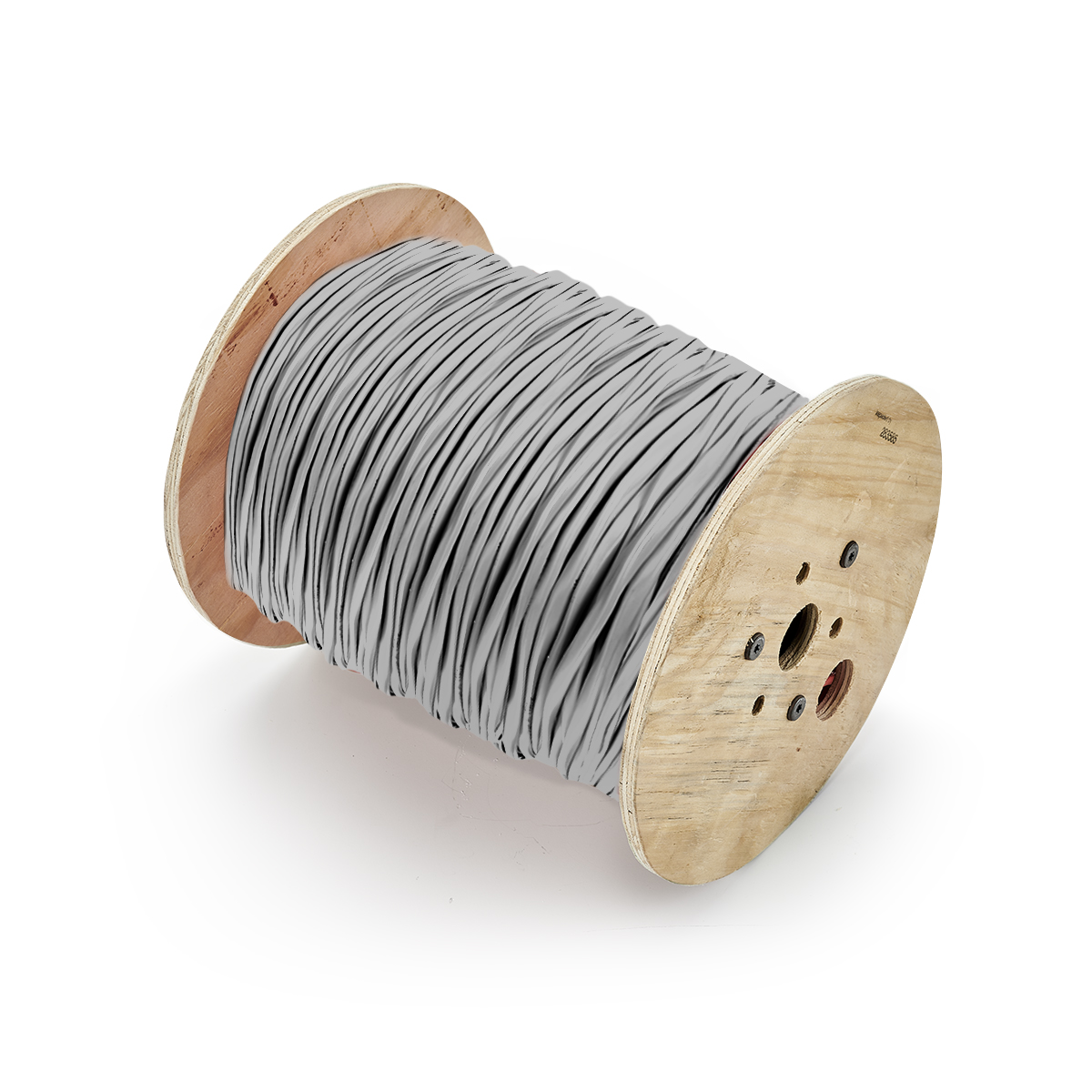

Genesis Cable 22221009 multiconductor shielded cable 16 AWG 1000 ft

Product Description

The Genesis Cable 22221009 is a riser rated shielded multiconductor cable suitable for metal raceways, solid bottom metal cable trays, risers, and within buildings. Features bare copper conductors, polypropylene insulation, and a PVC jacket. Designed to minimize electrical noise and interference to protect sensitive signals. Rated for 300 Volts and -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.

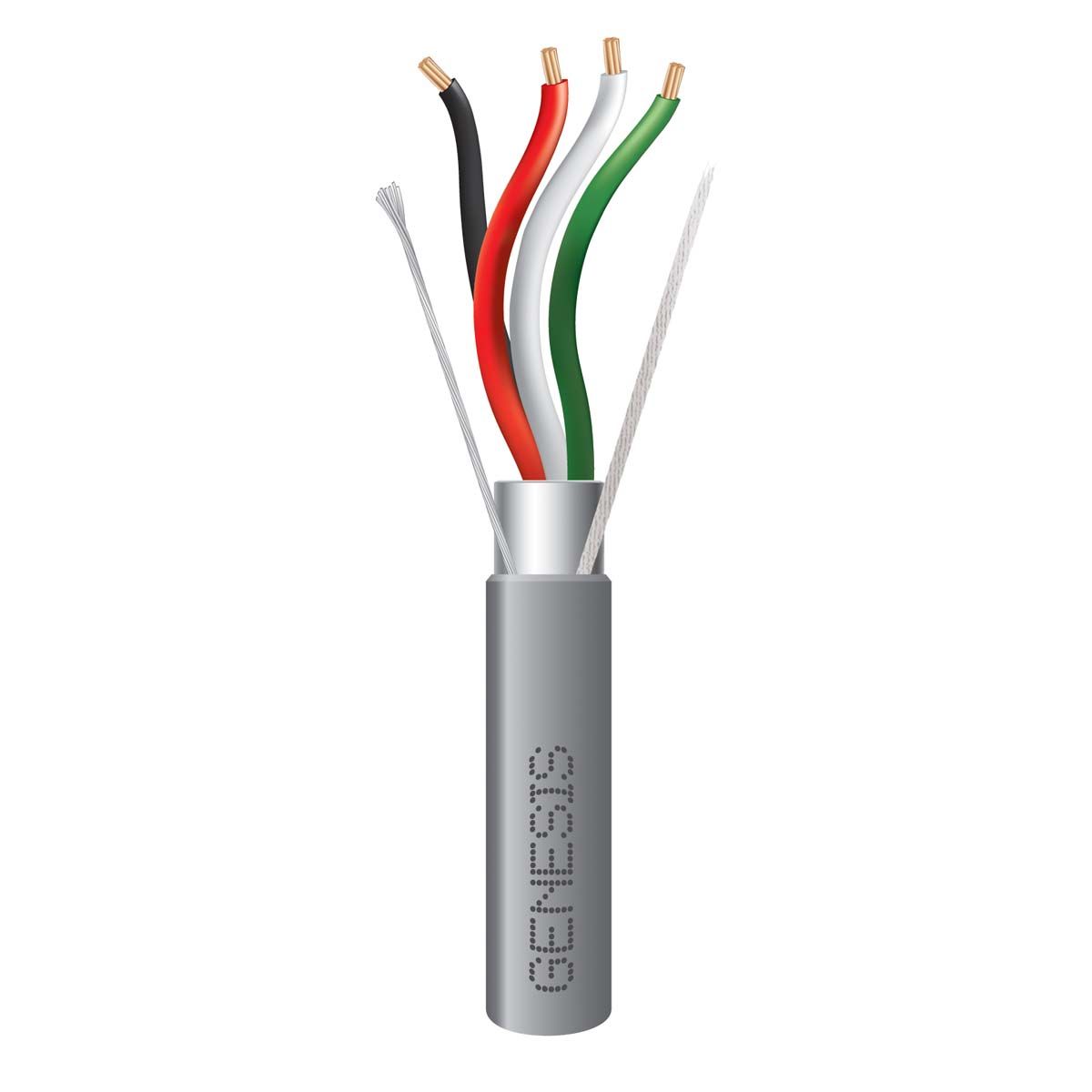

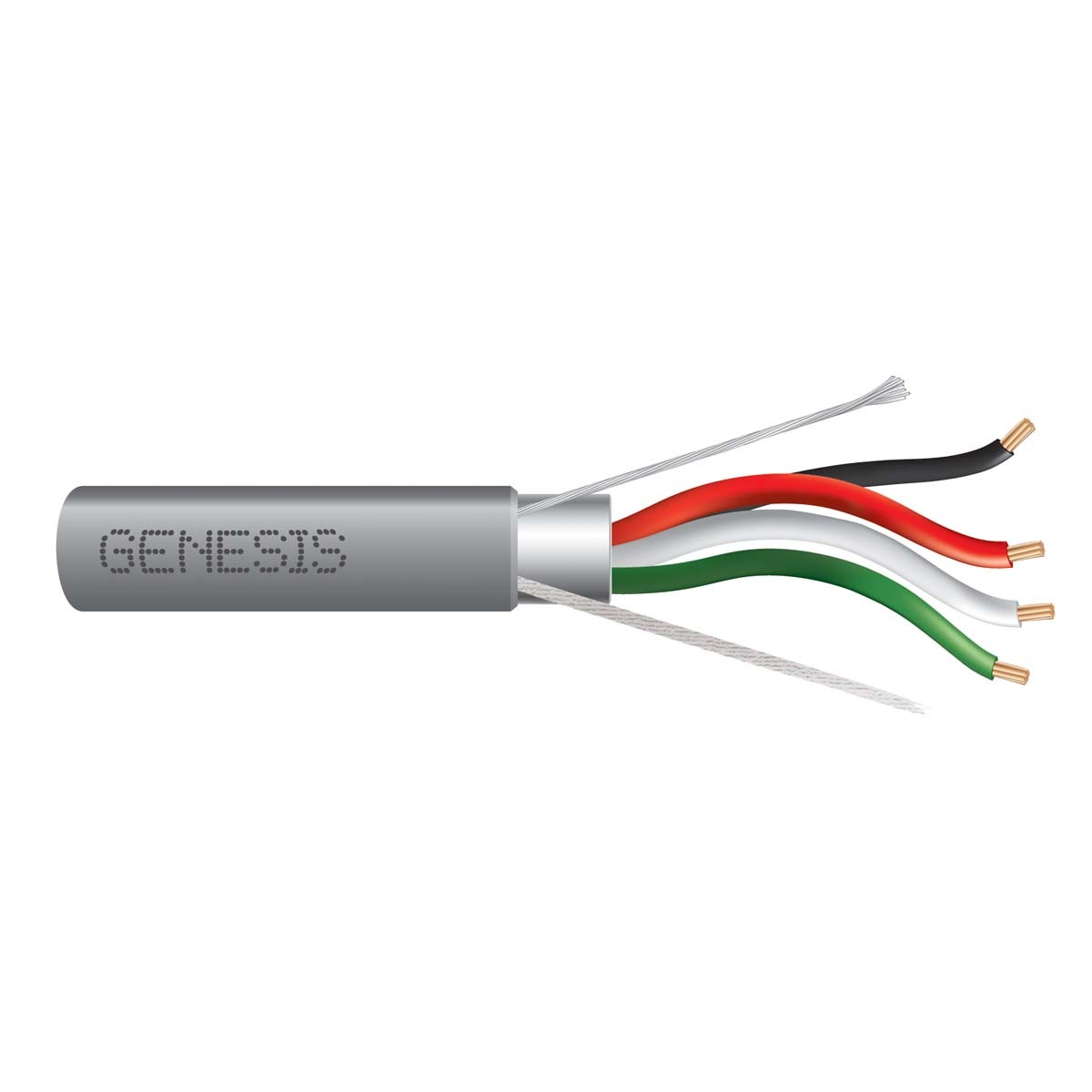

• Foil shield over all conductors.

Product Highlights

This shielded cable ensures a dependable connection for security, controls, audio, and other low-voltage applications, featuring a durable rip cord and Countdown length markings.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 22221009
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 16 AWG
• No. of Conductors: 4
• Stranding: Stranded
• Shielding: Shielded
• Nominal Total Weight (lbs/1000'): 46
• ADI Part Number: WG-22221009
• Brand Name: Genesis
• Manufacturer: Genesis Cable
• Manufacturer Part Number: 22221009
• Packaged Quantity: 1
• Product Model: 22221009
• Product Name: 22221009 - 16 AWG 4C STR Shielded Riser, Gray, 1000 FT. Reel
• Product Type: Security & Control Cables
• American Wire Gauge: 16AWG
• Armored: No
• Cable Rating: Riser
• Conductor Material: Bare Copper
• Jacket Material: PVC
• Jacket Type: FT4, Riser
• Number of Conductors: 4
• Solid or Stranded: Stranded
• TAA Compliant: Yes
• Cable Length: 1000'
• Insulation Material: PP
• Package Type: Reel/Spool
• Country of Origin: US
• Environmental Certification: RoHS
• Indoor/Outdoor: Indoor
• Category: Plenum Shielded Multiconductor Cables
• Voltage Rating: 300 V
• Temperature Range: 20 C to 75 C
• Application: Security Systems, Access Control, Audio Video Distribution, Structured Wiring
