Genesis Cable 22145509 18/2 Stranded CL3R (PVC) Honeywell Genesis Control Cable 500 ft

Product Description

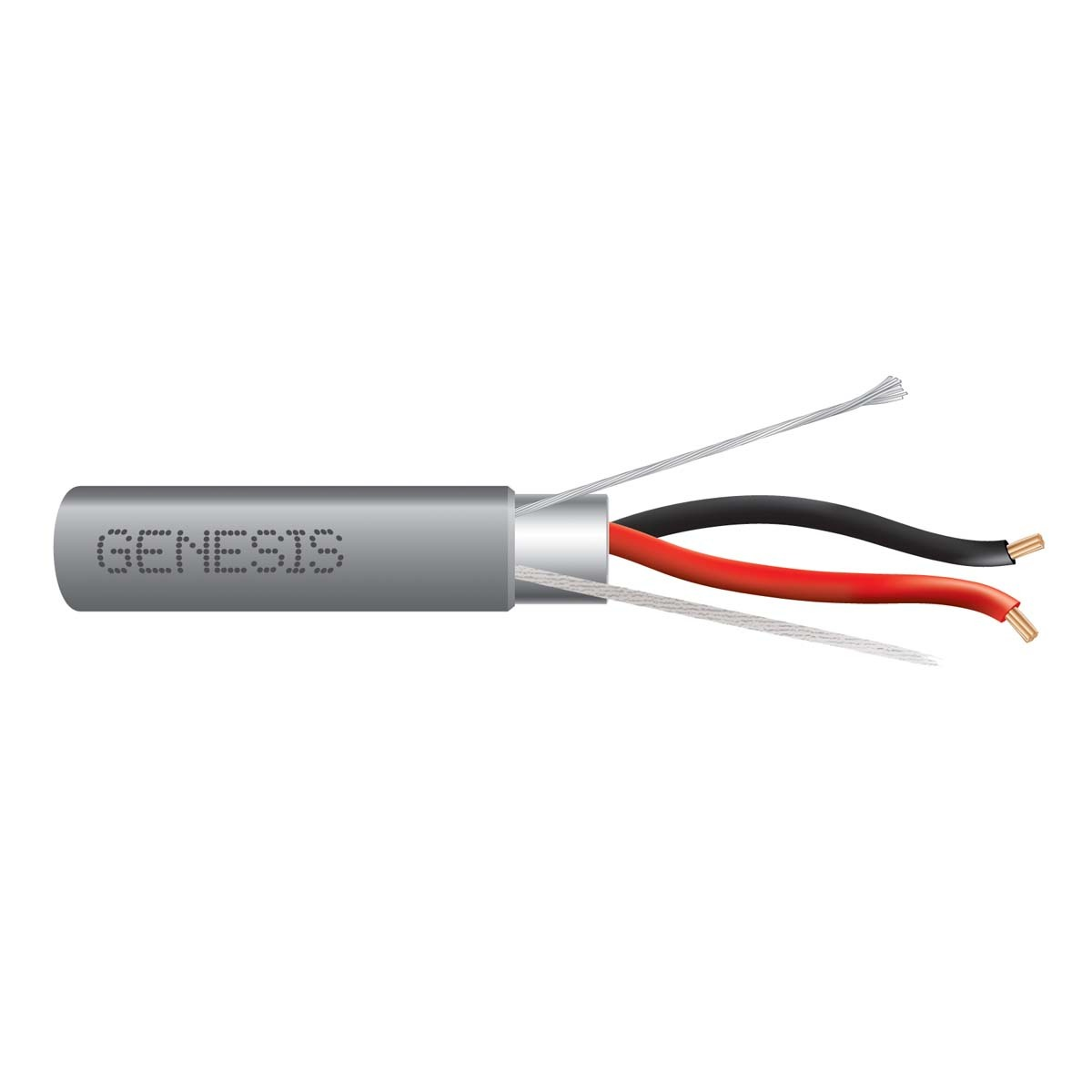

The Genesis Cable 22145509 features 2 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a riser rating. This cable provides a dependable connection for security, controls, audio, and other low-voltage applications. It has a PVC jacket and a durable rip cord for efficient jacket stripping.

• Bare copper conductors for excellent conductivity.
• Foil shield over all conductors.
• Rated for -20 °C to 75 °C.

Product Highlights

This 18 AWG shielded multi-conductor cable is suitable for riser installation and is sunlight resistant. It is CL3R, FPLR, CMR, and FT4 rated.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 22145509
• Country of Origin: United States

Technical Specifications

• Wire Type: Low Voltage
• AWG: 18
• Features: Riser-Rated, PVC Coated, Shielded
• Type: Stranded
• Application: Multi-Purpose
• Voltage: 300v
• Conductors: 2
• Outside Diameter: 0.154
• Approvals: FPLR, CL3R, FT4, CMR
• Package Type: Reels
• Shielding: Shielded
• Cable Rating: Riser, FT4
• Cable Listing: CL3R, FPLR, CMR, FT4, Sunlight Resistant
• Wire Gauge (AWG): 18
• Solid or Stranded: Stranded
• Number of Strands: 19
• Conductor Material: Bare Copper
• Conductor Insulation Material: Polypropylene
• Insulation Colors: Black, Red
• Shielding Type: Overall Foil
• Rip Cord: Yes
• Jacket Material: PVC
• Nominal Outer Diameter: 0.154 in.
• Rated Voltage (Max): 300 Volts
• DC Resistance (Max): 6.66 Ohms / 1000 ft. at 20 °C
• Capacitance (Nominal): 42.9 pF / ft.
• Impedance (Nominal): 36 Ohms
• Velocity of Propagation: 0.67
• Temperature Rating (Max): 75 °C
• Temperature Rating (Min): -20 °C
• Length Per Unit: 500 ft.
• Package Quantity: 1

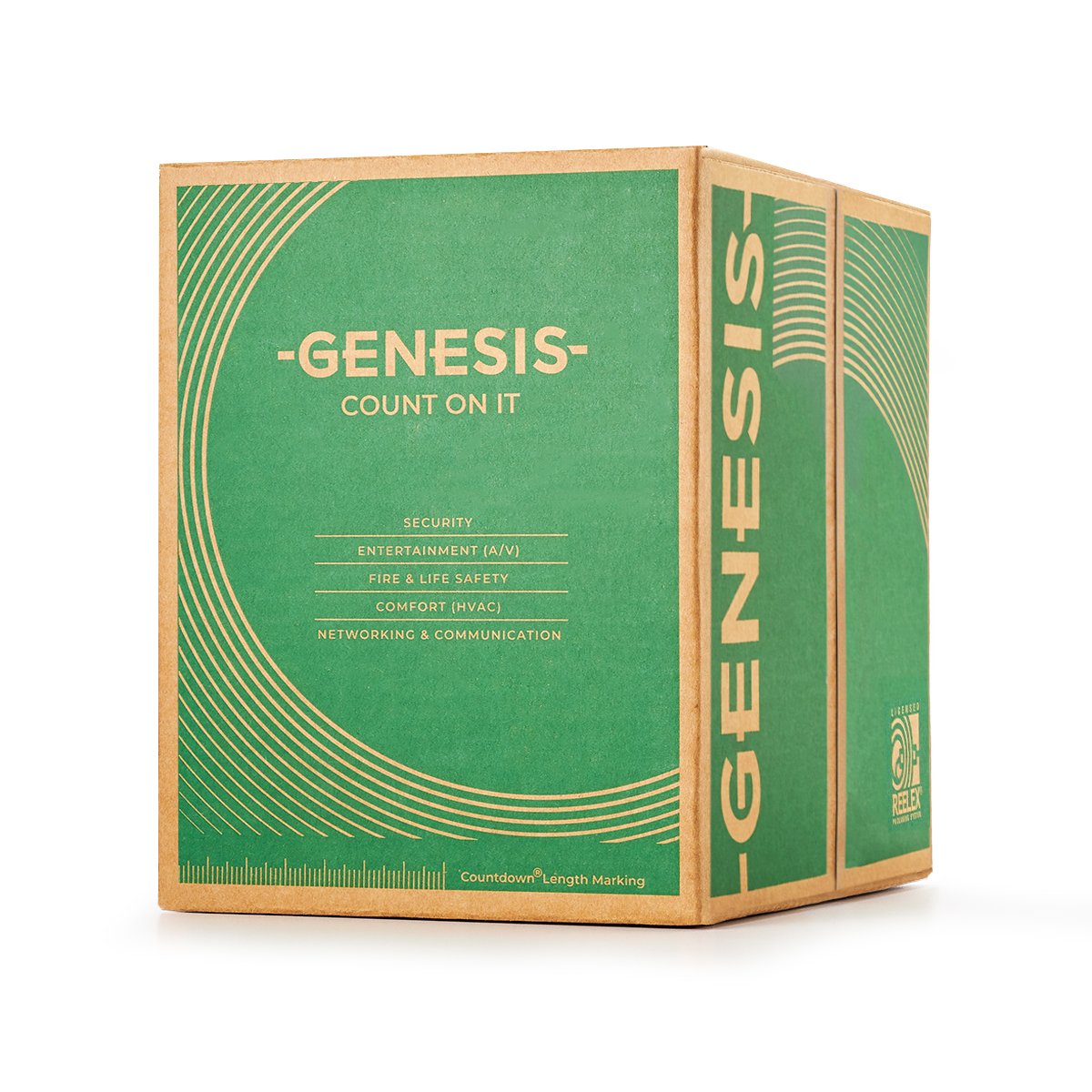

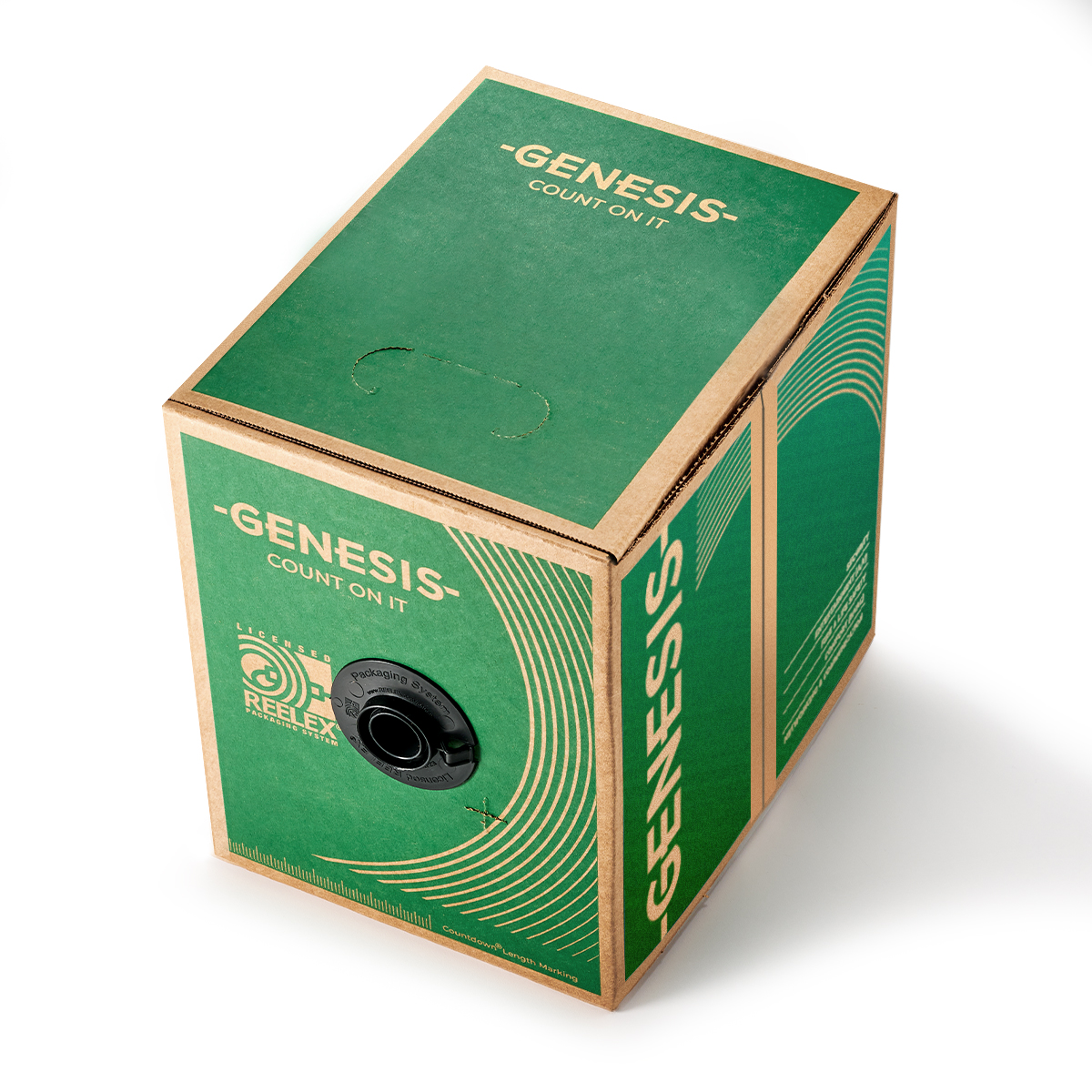

• Cable Packaging: Pull Box
• Brand: Honeywell
• Number of Conductors: 2
• Country of Origin: United States
