Genesis Cable 22041109 22/4 Stranded Shielded CL2R Cable

Product Description

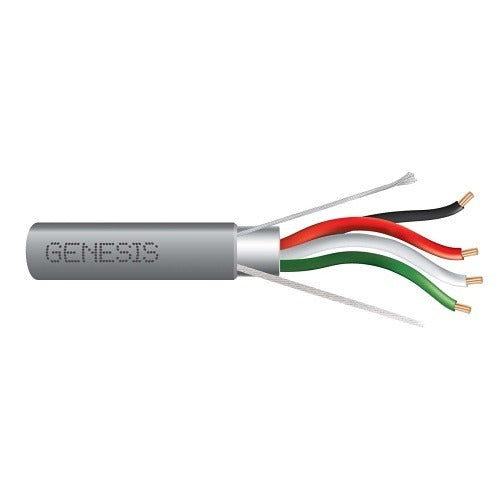

The GENESIS CABLE 22041109 is a 22 AWG, 4-conductor stranded shielded security cable rated CL2R for riser applications. This cable is designed for low-voltage security, alarm, and access control wiring where a fire-rated riser classification is required by code. The stranded conductor construction provides flexibility during pull-through and termination. The overall shield helps suppress interference in installations where signal integrity is a priority. It ships in a 1,000-foot box and is colored gray for standard security rough-in work. Licensed alarm and security installers are the primary end users for this product.

This cable is used in commercial and residential security system installations, including intrusion alarm panels, access control runs, motion detector wiring, and similar low-voltage signal applications. The CL2R riser rating makes it suitable for vertical runs between floors in commercial buildings where fire codes require riser-rated cable. The 1,000-foot pull box format is suited for new construction and large retrofit projects where a full box quantity is practical.

Key Features

• 22 AWG stranded conductors for flexibility during installation pulls
• 4-conductor configuration supports multi-wire security and alarm circuits
• Overall shield helps reduce signal interference in low-voltage runs
• CL2R riser rating meets fire code requirements for vertical shaft and riser installations
• Gray jacket provides standard color identification for security rough-in work
• 1,000-foot box quantity reduces waste and simplifies inventory management on larger jobs

Compatibility

Designed as a standard low-voltage stranded shielded security cable suitable for use with typical alarm panels, access control systems, and other low-voltage security equipment requiring 22 AWG 4-conductor riser-rated wiring.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm systems contractor in accordance with NFPA 72, NEC Article 725, and applicable local codes. De-energize all connected equipment before terminating conductors. CL2R-rated cable is approved for riser use but is not a substitute for plenum-rated (CL2P) cable in air-handling spaces. Verify that shield drain wire termination requirements are met at the panel end per the equipment manufacturer instructions.
