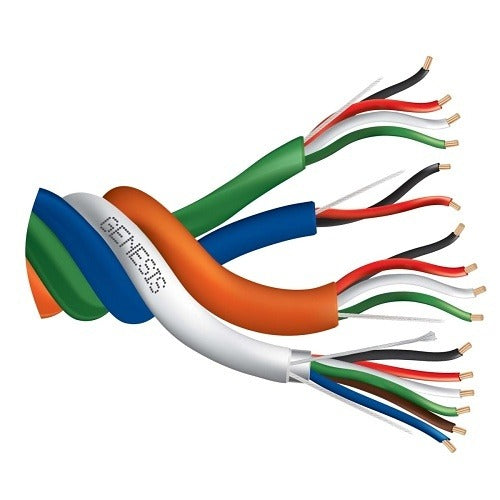

Genesis Cable 21951099 Access Control Cable Cmr

Product Description

The GENESIS CABLE 21951099 is a multi-conductor composite access control cable designed for structured security and access control wiring installations. This cable combines 18 AWG 4-conductor and 22 AWG 2-, 4-, and 6-conductor runs in a single jacketed assembly with an overall foil shield (1S), simplifying multi-function wiring pulls in commercial and residential security applications. Rated CMR (Communications Multipurpose Cable Riser) for riser-rated installations, it is sold as a single unit per order. Licensed low-voltage technicians and security system integrators are the primary installers of this product.

This cable is suited for access control panels, door controllers, credential readers, and related low-voltage security hardware that require simultaneous power and signal conductors in a single cable run. The composite construction reduces conduit fill and labor time by bundling multiple conductor groupings in one pull. It is appropriate for commercial office buildouts, multi-tenant residential buildings, and institutional facilities where riser-rated cabling is required between floors or through plenums adjacent to riser pathways.

Key Features

• Composite cable construction combines 18 AWG 4-conductor and 22 AWG 2-, 4-, and 6-conductor groupings in one jacket
• Overall foil shield (1S) provides signal integrity and noise rejection across conductor groupings
• CMR (Riser) rating meets NEC requirements for installation in riser applications between building floors
• Reduces conduit fill and labor compared to running separate cables for power and signal functions
• Suitable for access control readers, door strikes, and multi-function security panel wiring

Compatibility

Designed for use in low-voltage access control and security systems requiring composite multi-conductor cabling with CMR riser rating in commercial and residential installations.

Installation Notes

Installation should be performed by a licensed low-voltage technician or security systems integrator in accordance with NEC Article 800 requirements for communications riser cable. De-energize all access control panels and door hardware circuits before terminating conductors. Maintain minimum bend radius during pulls to avoid damaging the foil shield or conductor insulation. Do not install CMR-rated cable in plenum air-handling spaces where CMP-rated cable is required by local code.
