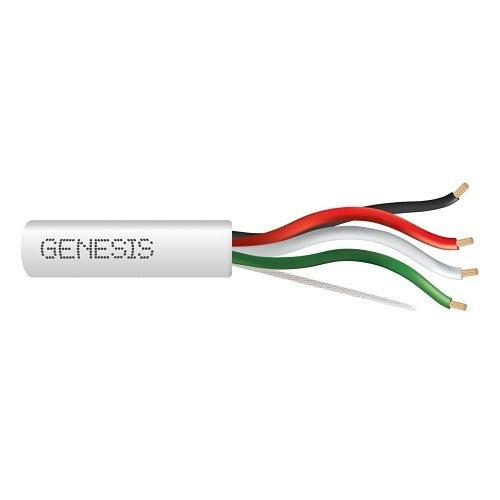

SOUTHWIRE Genesis Cable 21155501 18/4 Stranded CL2R Security Cable

Genesis Cable 21155501 18/4 Stranded CL2R Security Cable

SOUTHWIRE
Brand: SOUTHWIRE
SKU: 21155501
Availability: In Stock

Ships same day if ordered by 12 pm

$369.24
$369.24
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The GENESIS CABLE 21155501 is an 18 AWG, 4-conductor stranded security cable rated CL2R for riser-rated installations. The stranded construction provides flexibility during routing and termination, making it well suited for low-voltage security, access control, and alarm system wiring runs. The CL2R rating qualifies this cable for installation in building risers — vertical runs between floors — where fire resistance requirements apply. It ships in a pull box for clean, tangle-free installation on the job site. The white jacket finish is standard for indoor security wiring applications.

This cable is used in residential and light commercial low-voltage security installations, including intrusion alarm systems, access control panels, motion detector wiring, and door or window contact runs. The 4-conductor configuration supports common alarm zone wiring layouts. Licensed low-voltage technicians and security system installers are the primary trades working with this product. The pull box packaging is well matched to new construction rough-in and retrofit panel wiring work.

Key Features

  • 18 AWG stranded conductors for flexibility and ease of termination
  • 4-conductor configuration suits standard alarm and access control wiring layouts
  • CL2R riser rating meets fire resistance requirements for vertical building runs
  • White PVC jacket — standard finish for indoor low-voltage security wiring
  • Pull box packaging supports clean, controlled cable dispensing on the job site

Compatibility

Designed as an OEM-style replacement and standard-stock option for residential and light commercial low-voltage security, alarm, and access control wiring applications requiring CL2R-rated 18 AWG 4-conductor stranded cable.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with NFPA 72 and applicable local building codes. De-energize all connected panels and control equipment before making terminations. CL2R-rated cable is approved for riser use but is not rated for plenum spaces — verify ceiling and shaft classifications before routing. Avoid running low-voltage security cable in the same conduit or bundle as line-voltage wiring.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications
Conductor Size
18 AWG
Number of Conductors
4
Conductor Type
Stranded
Cable Rating
CL2R (Riser)
Jacket Color
White
Packaging
Pull Box
Category
Security Stranded Unshielded Riser
Brand
GENESIS CABLE
Manufacturer Part Number
21155501
