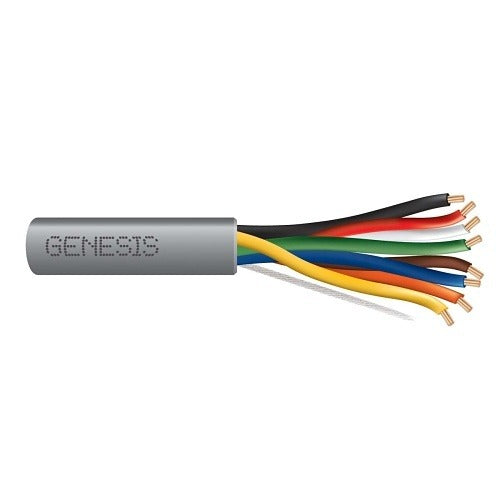

Genesis Cable 21075509 22AWG 8C Stranded Riser Cable 500ft

Product Description

The GENESIS CABLE 21075509 is an unshielded, stranded 22 AWG 8-conductor riser-rated security cable supplied in a 500-foot pull box. Built to CMR (riser) fire code ratings, this cable is designed for vertical in-building runs between floors. The stranded conductor construction provides flexibility during installation, making it well suited for routing through conduit, wall cavities, and cable trays. Security integrators and low-voltage technicians specify this cable for alarm panels, access control wiring, and other low-voltage signal applications where a riser rating is required by code.

This cable is used in commercial and residential security and access control installations. Typical applications include connecting door contacts, motion detectors, keypads, card readers, and other security peripherals back to a central control panel. The 8-conductor count provides enough pairs to handle multi-zone or multi-function device wiring in a single cable run. The gray jacket blends with standard building finishes and is appropriate for exposed or concealed indoor riser installations.

Key Features

• 22 AWG stranded conductors for flexibility during pull and termination
• 8 conductors in a single jacket for multi-zone or multi-function runs
• Unshielded construction suited for standard low-voltage security signal wiring
• CMR riser rating meets NEC requirements for vertical floor-to-floor cable runs
• 500-foot pull box reduces handling and speeds installation on larger jobs
• Gray PVC jacket for standard indoor finished-space applications

Compatibility

Designed as a general-purpose riser-rated security cable compatible with standard low-voltage alarm, access control, and security panel wiring applications requiring 22 AWG 8-conductor unshielded CMR cable.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm technician in accordance with NEC Article 725 and any applicable local codes. Verify the riser rating meets the authority having jurisdiction requirements before running cable vertically between floors. Do not run this unshielded cable in close parallel proximity to AC power conductors, as signal interference may result. Terminate conductors with the appropriate punch-down blocks, screw terminals, or crimp connectors specified by the panel or device manufacturer.
