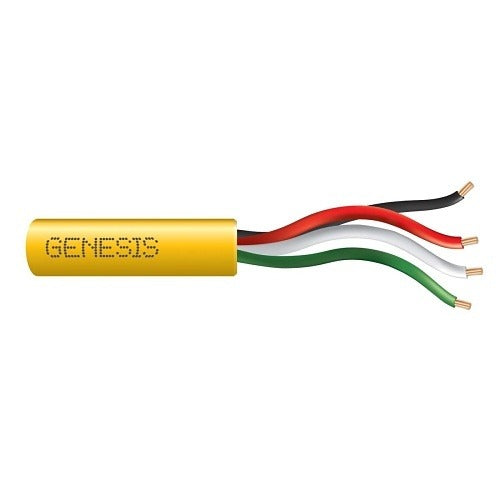

Genesis Cable 21045802 22/4 Stranded Riser Security Cable 500 Ft

Product Description

The GENESIS CABLE 21045802 is a 22 AWG 4-conductor stranded unshielded riser-rated security cable supplied on a 500-foot spool in yellow jacket. Classified for riser (CMR) installations, this cable is built to run vertically between floors in commercial and residential structures where fire-spread resistance is required by code. The stranded conductor construction provides flexibility during pulls through conduit or along cable runs, making it a practical choice for alarm panels, access control systems, and low-voltage security device wiring.

This cable is suited for low-voltage security and alarm wiring applications in both residential and light commercial buildings. It is commonly used to connect motion detectors, door and window contacts, keypads, and other security peripherals back to a central control panel. The yellow jacket aids visual identification in multi-cable installations and during future service calls. Installers working on fire alarm, intrusion detection, or access control systems will find this a standard workhorse conductor for structured security wiring.

Key Features

• 22 AWG stranded conductors for flexibility during installation
• 4-conductor configuration supports multi-wire security device connections
• Unshielded design suited for standard low-voltage security runs
• Riser (CMR) rating meets vertical fire-spread resistance requirements
• Yellow jacket for easy identification in multi-cable environments
• 500-foot pull quantity reduces splice points on longer runs

Compatibility

Designed as an OEM-style replacement and standard-use conductor for residential and commercial low-voltage security and alarm wiring systems requiring riser-rated 22 AWG 4-conductor cable.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm systems technician in accordance with NFPA 72, NEC Article 760, and applicable local codes. De-energize the security panel and any connected devices before terminating conductors. Riser-rated cable must be routed through fire-rated floor and wall penetrations using approved firestop methods. Do not exceed the cable bend radius minimum during pulls to avoid conductor damage.
