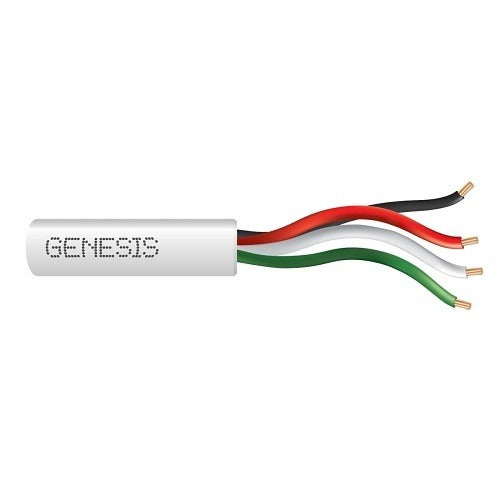

Genesis Cable 21045501 22/4 Stranded CL2R Security Cable White

Product Description

The GENESIS CABLE 21045501 is a 22 AWG, 4-conductor stranded unshielded security cable rated CL2R for in-wall and riser applications. Constructed with a jacketed design and a white outer jacket, this cable is built for low-voltage security, access control, and alarm system wiring in residential and light commercial installations. The CL2R rating means it meets the National Electrical Code requirements for riser installations, allowing the cable to be run vertically between floors without requiring conduit in most jurisdictions. Licensed low-voltage technicians and security system installers are the primary trade professionals working with this cable.

This cable is suited for security alarm panels, motion detectors, door and window contacts, access control readers, and similar low-voltage devices that require a 4-conductor run. The stranded conductor construction improves flexibility during pull-through and termination compared to solid conductor alternatives. It is commonly used in new construction and retrofit projects where in-wall or riser routing is required. The white jacket blends with standard interior finishes and is suitable for surface routing in finished spaces.

Key Features

• 22 AWG stranded conductors for flexibility during installation and termination
• 4-conductor configuration supports multi-wire security and access control device wiring
• CL2R riser rating meets NEC requirements for vertical in-wall runs between floors
• Unshielded construction suited for typical low-voltage security applications
• White outer jacket compatible with finished interior environments
• Jacketed design protects conductors during pull and long-term installation

Compatibility

Designed as a standard 22 AWG 4-conductor stranded CL2R cable for use with low-voltage security alarm systems, access control panels, and similar devices requiring riser-rated in-wall wiring.

Installation Notes

Installation should be performed by a licensed low-voltage technician in accordance with NEC Article 725 and local jurisdiction requirements. De-energize the security panel or control device before making any terminations. Avoid running this cable parallel to high-voltage AC wiring to prevent signal interference. Do not exceed the minimum bend radius during pulls to protect conductor integrity.
