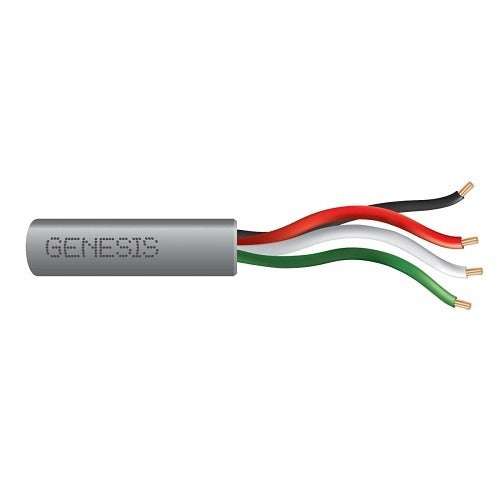

Genesis Cable 21041109 22AWG 4-conductor Riser Security Cable

Product Description

The GENESIS CABLE 21041109 is a 22 AWG, 4-conductor stranded unshielded riser-rated security cable supplied on a 1000-foot box spool in gray jacket. Riser (CMR) rating qualifies this cable for vertical runs between floors in commercial and residential buildings, where building codes require flame-retardant cable that limits fire spread through floor penetrations. The stranded conductor construction provides flexibility for routing through conduit, cable trays, and tight pathways common in security and low-voltage alarm installations. Licensed low-voltage and alarm technicians are the primary installers of this product.

This cable is suited for security alarm systems, access control wiring, intrusion detection panels, and similar low-voltage signal applications in both residential and light commercial construction. The 4-conductor configuration supports common zone wiring, door and window contact loops, and motion detector runs. The gray jacket blends with standard conduit and surface-raceway installations common in commercial security work.

Key Features

• 22 AWG stranded conductors for flexibility in routing and termination
• 4-conductor configuration supports multi-zone and multi-wire security device wiring
• Unshielded design keeps installation straightforward for standard alarm signal runs
• Riser (CMR) rating meets building code requirements for vertical inter-floor cable runs
• 1000-foot box spool reduces job-site handling and pull friction compared to smaller spools
• Gray jacket suits standard security and low-voltage installation aesthetics

Compatibility

Designed as a standard riser-rated low-voltage signal cable for residential and commercial security alarm, access control, and intrusion detection system wiring applications.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm technician in accordance with applicable local codes and NFPA 70 (NEC) Article 760 governing fire alarm and signaling cable. De-energize any connected control panels and devices before making terminations. Riser-rated cable must not be substituted for plenum-rated (CMP) cable in air-handling spaces. Secure and support cable at intervals required by the authority having jurisdiction.
