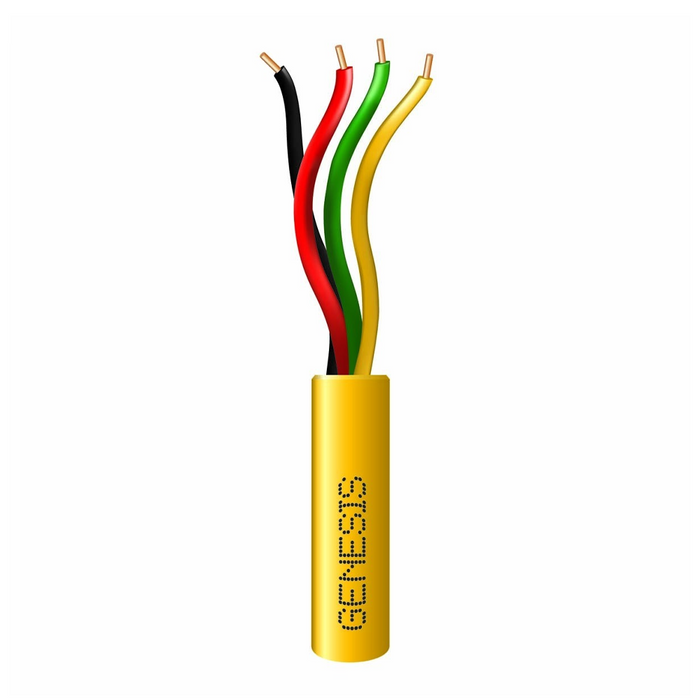

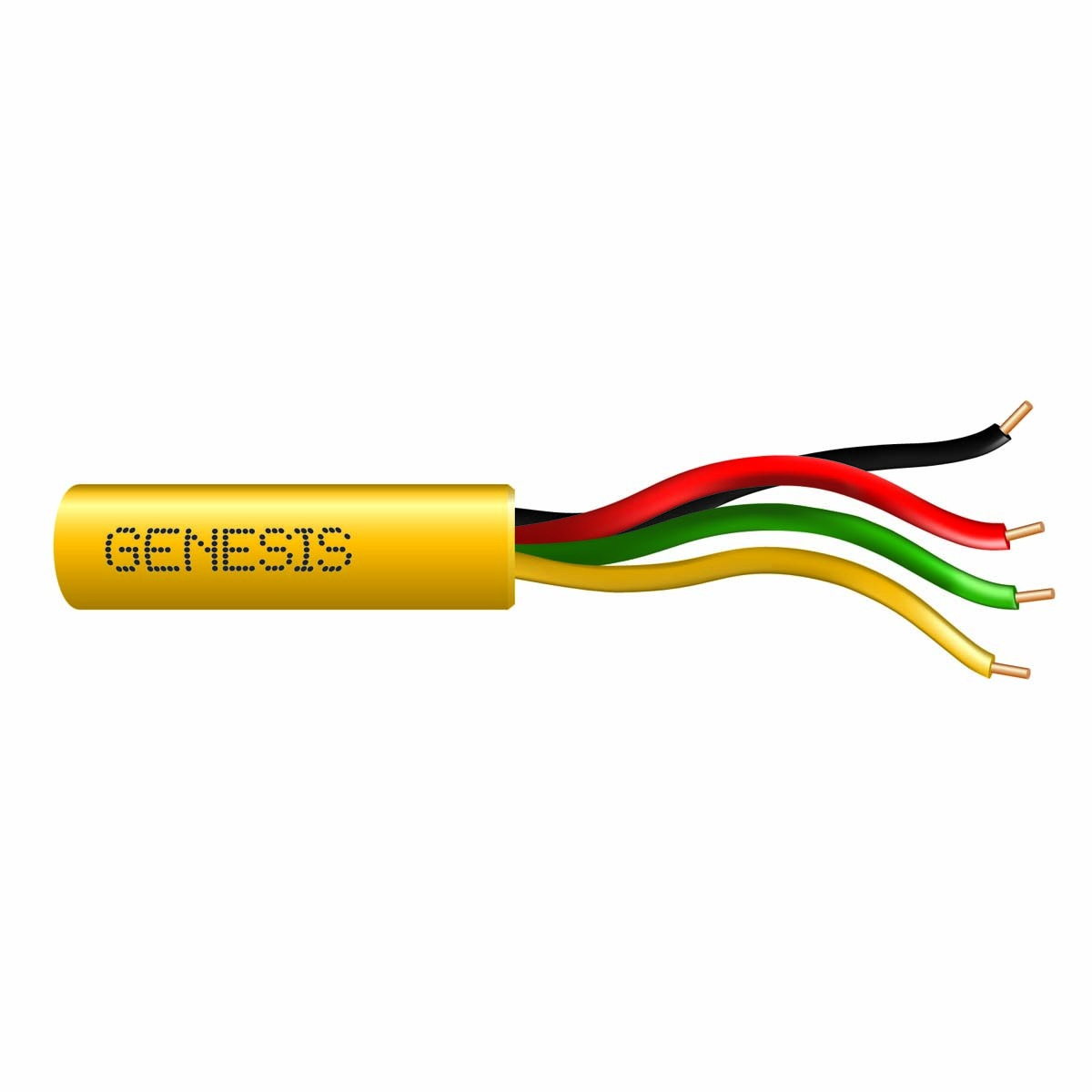

Genesis Cable 21035802 Multiconductor Unshielded Cable 500 FT

Product Description

The Genesis Cable 21035802 is a riser-rated unshielded multiconductor cable suitable for installation in metal raceways, solid bottom metal cable trays, and risers. It features bare copper conductors for excellent conductivity and low voltage drop, polypropylene insulation, and a PVC jacket. Designed for use within buildings and exposed to sunlight.

• Bare copper conductors ensure excellent conductivity.
• Features polypropylene insulation and a PVC jacket.
• Includes a durable rip cord for efficient jacket stripping.

Product Highlights

This unshielded multiconductor cable is ideal for low-voltage signal and power applications, ensuring dependable signal transmission and mechanical strength.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 21035802

Technical Specifications

• Size (AWG or kcmil): 22 AWG
• Size (mm2): 22 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 12
• Nominal Total Weight (kgs/km): 18
• Insulation: Polypropylene
• Jacket: Durable PVC
• Voltage Rating: 300V
• Temperature Rating: -4°F to 167°F (-20°C to 75°C)
• Compliance: UV resistant, and REACH/RoHS compliant
• Installation: Riser-rated
• Conductor: 22 AWG Solid Bare Copper
• Conductor Count: 4
• Overall Diameter: 0.120" nom.
• Ratings: CMR, CL3R, FPLR, FT4, Sunlight Resistant
• Approvals: ETL Listed
• Gauge: 22 AWG
• Number of Conductors: 4
• Cable Length: 500ft
• Cable Rating: Riser
• Cable Listing: CL3R
• Package Type: Speed Bag
