Genesis Cable 21035801 multiconductor unshielded cable 22 sol 4/c 500 ft

Product Description

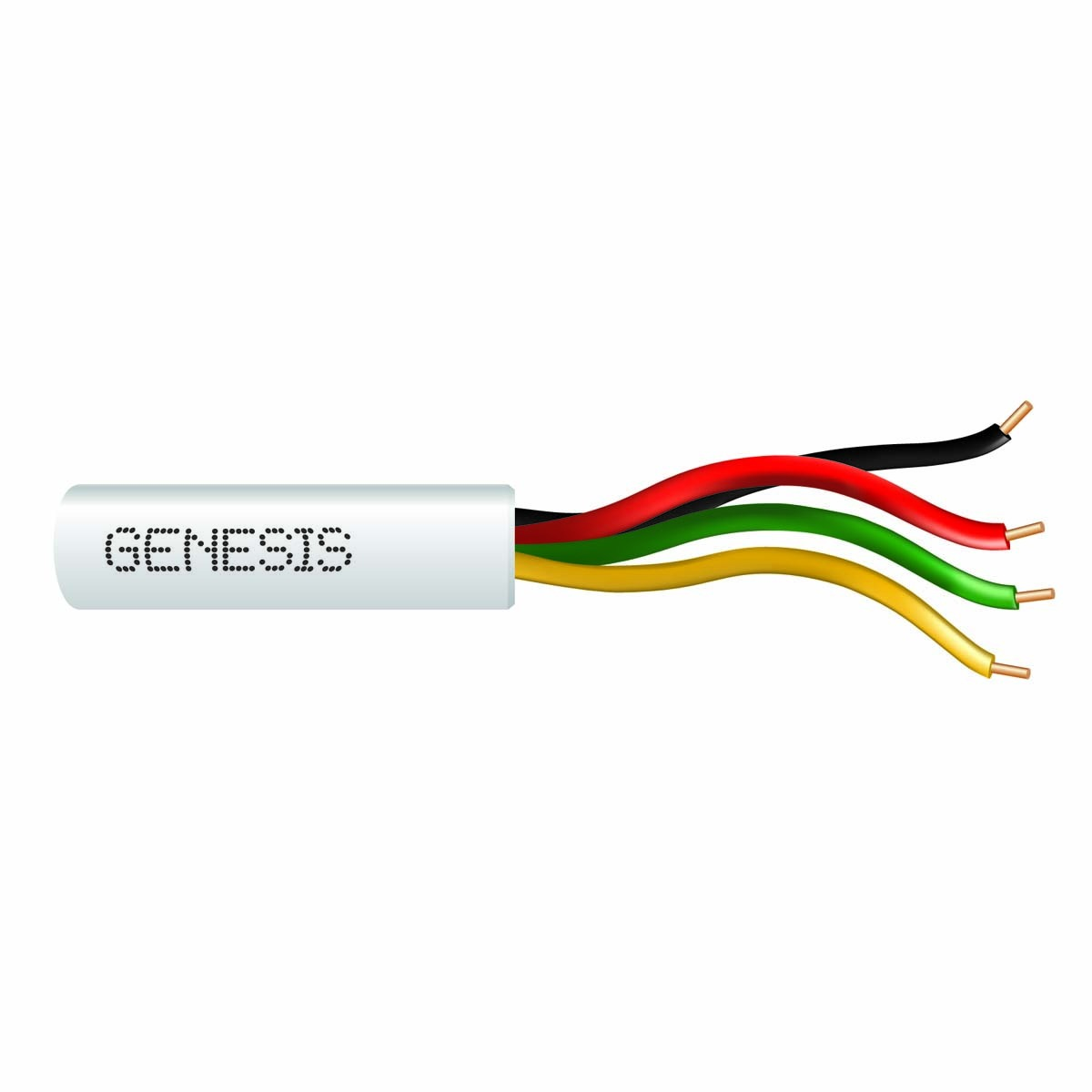

The Genesis Cable 21035801 is a riser-rated unshielded multiconductor cable suitable for metal raceways, solid bottom metal cable trays, and risers. It can be installed within buildings in other than air-handling spaces and risers and is sunlight resistant. The cable features bare copper conductors and polypropylene insulation with a PVC jacket. It is rated for 300 Volts and for temperatures from -20 °C to 75 °C.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Polypropylene insulation.
• PVC jacket.

Product Highlights

This Genesis Cable is ideal for security, controls, audio, and other low-voltage applications. It features a durable rip cord for efficient jacket stripping and removal and sequential length markings for easy tracking of usage.

Product Information

Standard Information

• Brand: Genesis Cable
• Manufacturer Part Number: 21035801
• Country of Origin: United States

Technical Specifications

• Size (AWG or kcmil): 22 AWG
• Size (mm2): 22 AWG
• No. of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight (lbs/1000'): 12
• Nominal Total Weight (kgs/km): 18
• JMAC ID: 200207684
• df_manual_boost: 1.25
• Model: 21035801 GENESIS
• Type: CABLE
• Brand: GENESIS
• MPN: GE21035801
• Country of Origin: United States
• Condition: New
• Conductor: 22 AWG Solid Bare Copper
• Conductor Count: 4
• Diameter: 0.120" in nom
• Operating Voltage: 300 Volts ma
• Length: 500 ft. (152.4 m)
• Sheath Color: White
• Insulation Material: Polyvinyl Chloride (PVC)
• Wire Style: Solid
• Conductor Material: Copper
• Item Length: 500 ft
• Wire Gauge: 23-22 AWG (0.57-0.6 mm)
• Application: Security
• Number of Conductors: 4
• UPC: 619172053693
