Genesis 33282107 22/2 Pair Stranded Shielded Plenum Cable, CL3P, FPLP, CMP, FT6, EIA-485, 1000 feet

Product Description

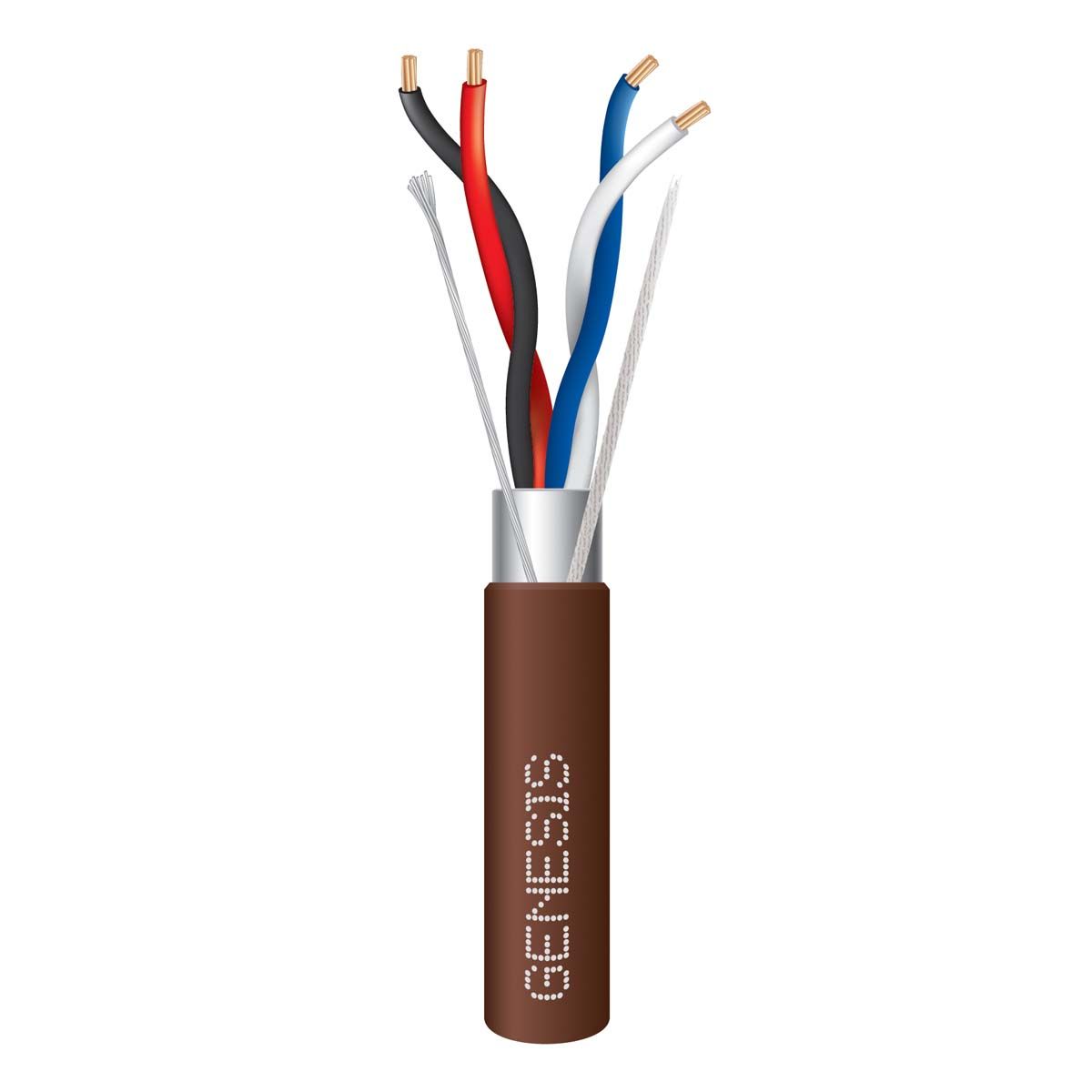

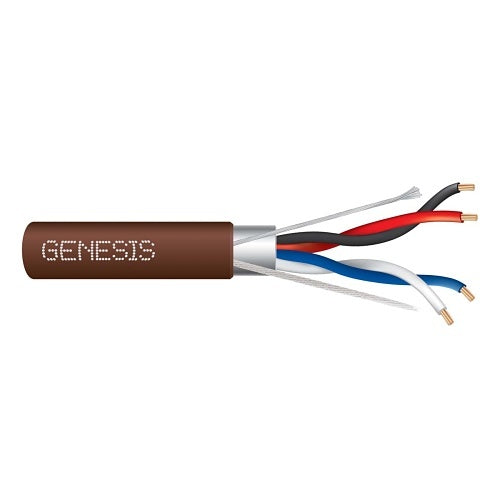

The GENESIS 33282107 cable features 2 stranded 22 AWG copper conductor-pairs, an overall foil shield with a drain wire, and a plenum rating. This cable is designed for high-speed data transmission for building automation, EIA-485, BACnet, and other communication systems. It comes in a 1000' reel-in-a-box.

• Stranded bare copper conductors
• Overall foil shield
• Rated for plenum, riser, and general purpose indoor installation

Product Highlights

The GENESIS 33282107 cable ensures reliable high-speed data transmission and optimized performance for smart building networks.

Product Information

Standard Information

• Brand: GENESIS
• Manufacturer Part Number: 33282107
• Country of Origin: United States

Technical Specifications

• Features: Stranded
• Material: Bare Copper
• Impedance: 120 ohms
• Shielding: Yes
• Brand Name: Genesis
• Cable Type: Multi-conductor/Multi-pair
• Jacket Type: FT6,Plenum
• Cable Length: 1000'
• Manufacturer: Genesis Cable
• Package Type: Reel-in-a-Box
• Product Name: Control Cable
• Product Type: Access & Security Cable
• Cable Listing: CL3P,CMP,FPLP,FT6
• Product Model: 33282107
• TAA Compliant: yes
• Indoor/Outdoor: Indoor
• ADI Part Number: WG-33282107
• Conductor Count: 2
• Number of Pairs: 2
• Device Supported: Communication System
• Cable Length (mm): 304800
• Packaged Quantity: 1
• Solid or Stranded: Stranded
• Conductor Material: Bare Copper
• American Wire Gauge: 22AWG
• Insulation Material: FEP
• Number of Conductors: 4
• Connector on First End: Bare Wire
• Connector on Second End: Bare Wire
• Environmentally Friendly: Yes
• Manufacturer Part Number: 33282107
• Environmental Certification: ROHS
• Cable Rating: Plenum
