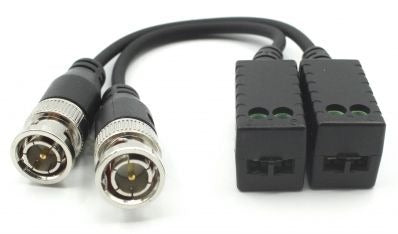

Generic / Unbranded w-hdvb202p Hd Video Balun Transceiver Set

Product Description

The GENERIC / UNBRANDED w-hdvb202p is a passive HD video balun transceiver set designed to extend analog HD video signals over standard UTP twisted-pair cable. It supports CVI, TVI, and AHD signal formats, making it compatible with tribrid and HD analog surveillance systems. No external power is required for signal transmission, as the passive design draws no additional current from the video line. Security installers and low-voltage technicians use this balun set to eliminate the need for coaxial cable runs in structured-wiring environments.

This balun set is suited for residential and light commercial surveillance installations where existing Cat5e or Cat6 infrastructure is already in place. It is a practical choice when retrofitting IP-style cabling into HD analog camera systems running CVI, TVI, or AHD formats. The tail-style connector configuration simplifies termination at both the camera end and the DVR or tribrid recorder end without requiring specialized crimp tools.

Key Features

• Passive design requires no external power supply
• Supports CVI, TVI, and AHD HD analog video formats
• Compatible with tribrid DVR and recorder setups
• Allows video transmission over UTP twisted-pair cable
• Tail-style lead connectors simplify field termination
• Eliminates coaxial cable runs in structured-wiring environments

Compatibility

Designed as an OEM-style replacement or add-on balun transceiver for HD analog surveillance systems utilizing CVI, TVI, or AHD signal formats over UTP cabling infrastructure.

Installation Notes

Installation is typically performed by low-voltage technicians or security system installers. Power down the DVR or recording device before connecting or disconnecting balun leads at the recorder end. Use standard Cat5e or Cat6 cable for signal runs and follow local low-voltage wiring codes where applicable. Avoid running UTP video cable parallel to high-voltage electrical conductors to prevent signal interference.

Technical Specifications

• Signal Format: CVI, TVI, AHD
• Transceiver Type: Passive
• Cable Type: UTP twisted-pair
• Connector Style: Tail leads

Standard Information

• Brand: GENERIC / UNBRANDED
• Manufacturer Part Number: w-hdvb202p
