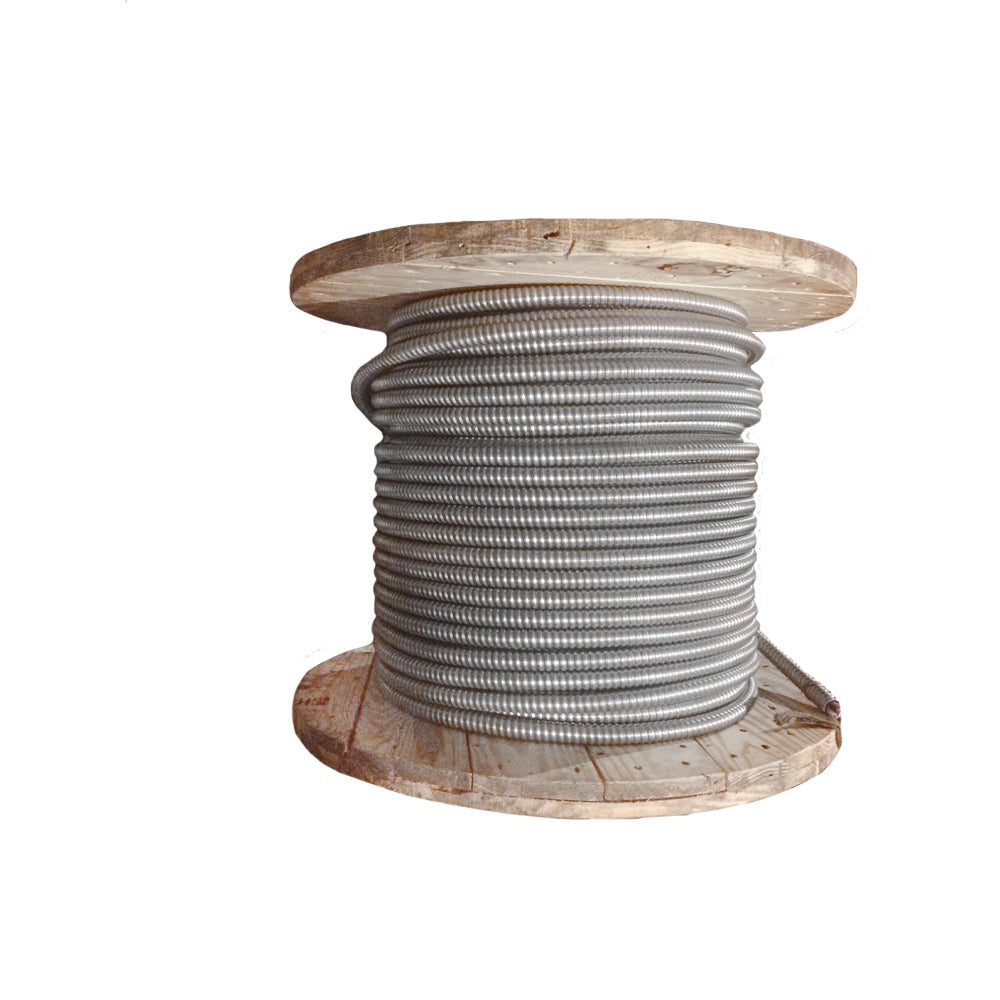

Generic 4-3 MCI 500' REEL

Product Description

The Generic 4-3 MCI 500' REEL is designed for use in various electrical applications. This feeder cable includes three conductors and is made with a 4 AWG conductor and an 8 AWG ground stranded copper. It withstands up to 600 volts and operates at a maximum temperature of 90 degrees Celsius in dry conditions. The cable is protected by THHN insulation and features a polypropylene tape shield and galvanized interlocking steel strip armor that enhances durability.

• Consists of 4 AWG conductors and 8 AWG ground
• Includes a galvanized steel armor for enhanced protection
• Complies with UL 83 and OSHA standards

Product Highlights

This product is ideal for installations requiring strength and flexibility.

Product Information

Standard Information

• Manufacturer: Generic
• Part Number: MCL43R MCL

Technical Specifications

• Conductor Size: 4 AWG
• Ground Size: 8 AWG
• Voltage Rating: 600 V
• Temperature Rating: 90 degrees Celsius (dry)
• Length: 500 feet
• Weight: 850 lb per 1000 ft
• Color Code: Black, Red, White
• UL File Numbers: 83, 1479, 1569, 1581, 2556
