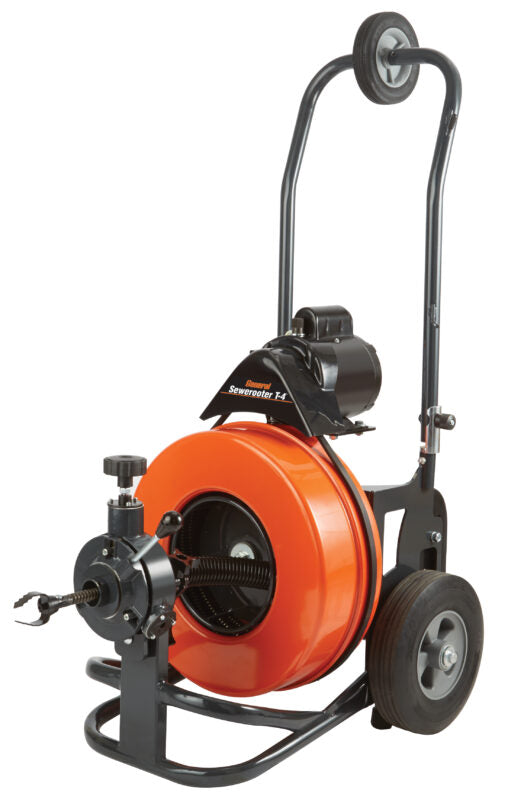

General Wire Spring 104120 Sewerooter T-4

Product Description

The GENERAL WIRE SPRING 104120 Sewerooter T-4 is designed for clearing inside drain lines up to 100 ft. long with 9/16” Flexicore cable. It offers more torque than traditional 1/2 inch cables and can clear 3” to 4” drain lines. The heavy-duty variable speed Power Cable Feed drives and retracts 9/16” and 5/8” cables at up to 20 ft. per minute. The 1/3 hp capacitor motor provides ample power.

• Clears inside drain lines up to 100 ft. long with 9/16” Flexicore cable.
• Offers more torque than traditional 1/2 inch cables for 3” to 4” drain lines.
• Features stair climbers and 10” ball bearing wheels for easier handling.

Product Highlights

The Sewerooter T-4 features interchangeable drums and a folding handle for space-saving convenience. It has a heavy-duty reinforced frame and drum support shaft designed for rough handling.

Product Information

Standard Information

• Brand: GENERAL WIRE SPRING
• Manufacturer Part Number: 104120
• Country of Origin: United States

Technical Specifications

• Drum Capacity: 100 ft. x 9/16″ (30m x 14.2), 75 ft. x 5/8″ (22.5m x 15.8)
• Drum Removal: Remove one bolt and slide drum off shaft.
• Motor: 1/3 hp with capacitor, forward-off-reverse switch, 20 ft. power cord and ground fault circuit interrupter.
• Foot Switch: Pneumatic, with no electrical contact between pedal and motor.
• Power Cable Feed: Drives and retracts at variable speed of up to 20 ft. per minute.
• Wheels: 10” Heavy-duty wheels with roller bearings.
• Wheel Brake: Passive wheel brake system holds the machine in place on the job or in the truck.
• Stair Climbers: Heavy-duty V-belts running on nylon rollers.
• Truck Loading Wheel: Enables one person to lift machine onto bed of truck.
• Cutter Holder: Cutter Holder on frame keeps all of the cutters within easy reach.
• Leather Gloves: With double-reinforced palm for hand protection when guiding cable.
• Cables: Left-wound Flexicore® wire rope center. 3/4″ for 4″ to 10″ lines and 3″ lines without sharp bends; 5/8″ diameter for 3″ to 6″ lines; 1/2″ diameter for 2″ to 3″ lines.
• Cable Guide Tube: Adds safety when you can’t get machine close to drain opening. 5 ft. extensions available.
