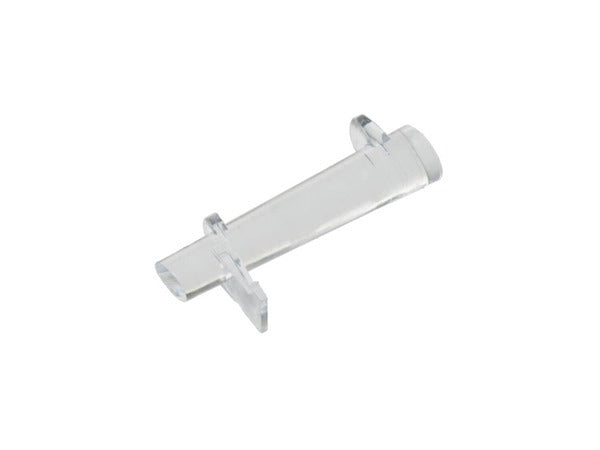

General Electric WD01X30911 Light Pipe

Product Description

The General Electric WD01X30911 is a wash control module light pipe designed for use in dishwasher appliances. This component serves as a light-transmission channel, routing indicator light output from the control module to the exterior panel so the user can read cycle status and operational indicators. It is a direct OEM replacement part installed by appliance service technicians during control module or front panel servicing.

This light pipe is intended for residential dishwasher applications where the wash control module communicates status through panel-mounted indicators. It fits within the control housing assembly and routes light from the PCB-mounted LED or indicator to the panel face without requiring electrical connection of its own.

Key Features

• OEM General Electric part for reliable fit and function
• Channels LED or indicator light from control module to panel surface
• Passive component requiring no electrical connection
• Direct replacement for worn, cracked, or missing light pipe assemblies

Compatibility

Designed as an OEM-style replacement light pipe for General Electric residential dishwasher wash control module assemblies.

Installation Notes

Installation is performed by a qualified appliance service technician. Disconnect power to the dishwasher at the circuit breaker before accessing the control panel or module housing. The light pipe typically seats into a molded slot in the control module or door panel assembly and requires no tools beyond those needed to remove the panel. Handle the component carefully to avoid cracking, as breaks in the light pipe body will reduce indicator visibility.
