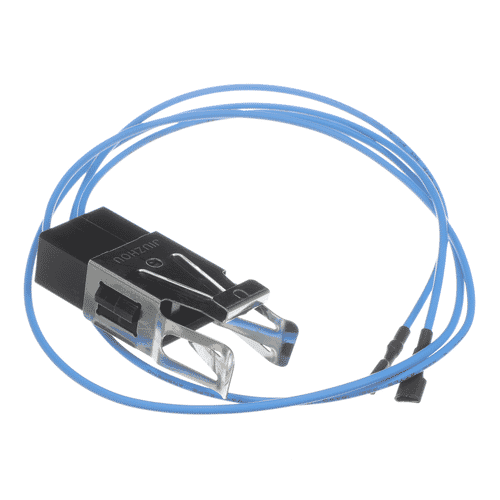

General Electric wb18x48307 Harness Surface Unit Kit

Product Description

The General Electric wb18x48307 is a harness surface unit kit designed as a wiring assembly for electric cooktop and range surface elements. It provides the electrical connections between the surface heating elements and the range control system, carrying power to the burner coils during operation. This kit is a direct OEM replacement component sourced from General Electric and is typically installed by appliance technicians or qualified electricians performing cooktop service or element replacement.

This harness kit is suited for residential electric range and cooktop applications where the original surface unit wiring has failed, been damaged, or requires replacement as part of a broader cooktop repair. It is intended for use in standard household cooking appliances and is installed during element or surface unit service calls.

Key Features

• OEM General Electric replacement wiring harness for surface cooking units
• Provides electrical connection between surface heating elements and range controls
• Direct-fit replacement designed to match original connector and wire configuration
• Supports proper power delivery to cooktop burner elements

Compatibility

Designed as an OEM-style replacement wiring harness for General Electric electric ranges and cooktops requiring surface unit harness service.

Installation Notes

Installation should be performed by a qualified appliance technician or licensed electrician. Always disconnect the appliance from its power source and confirm the circuit is de-energized before accessing internal wiring components. Refer to the appliance service manual for connector routing and fastening locations. Work should comply with applicable National Electrical Code requirements for appliance repair.

Technical Specifications

• Component Type: Wiring Harness Kit
• Application: Surface Unit

Standard Information

• Brand: General Electric
• Manufacturer Part Number: wb18x48307
